Galant GTZ V6-3.0L SOHC
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
A Connector - Engine Compartment Harness
A Connector - Engine Compartment Harness
Engine Compartment A Connectors (A-01 Thru A-20X):

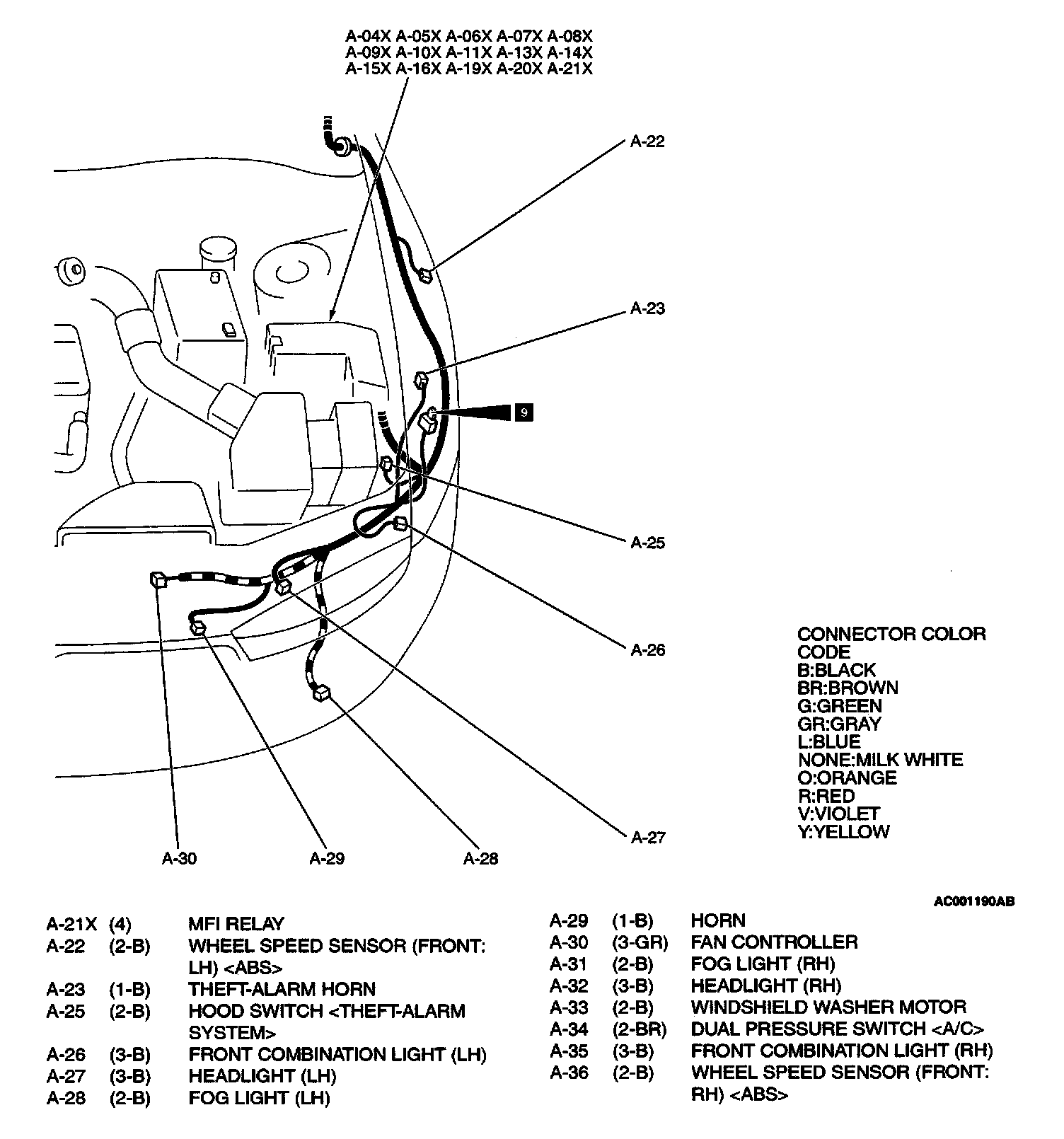

(A-21X Thru A-36):
