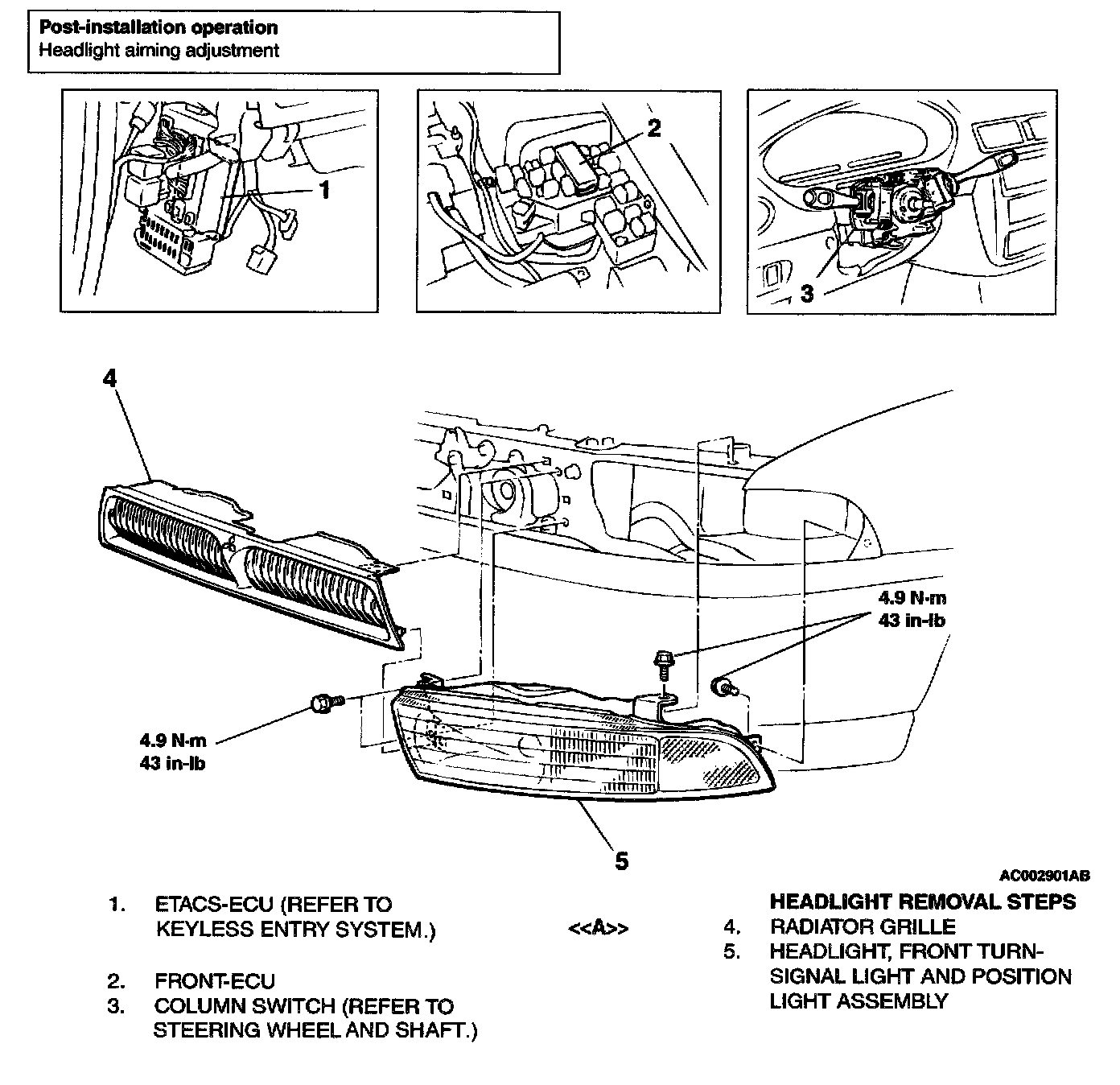

Headlamp: Service and Repair
WARNING:
- Before removal of the air bag module, refer to SRS Service Precautions and Air Bag Module and Clock Spring.
- When removing and installing the steering wheel, do not let it bump against the air bag module.
REMOVAL SERVICE POINT
<> RADIATOR GRILLE REMOVAL

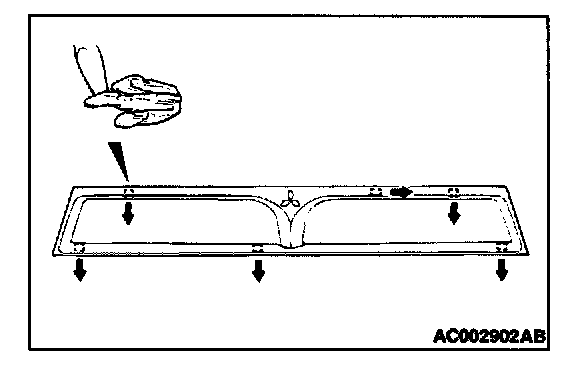

1. Remove the radiator grille by pushing all tabs of the radiator grille clips in the direction of the arrows with a flat-tipped screwdriver, then lightly pull the radiator grille toward you.
2. Removal the clips from the body, and install them to the radiator grille temporarily for reinstallation.
