Pinout Values and Diagnostic Parameters

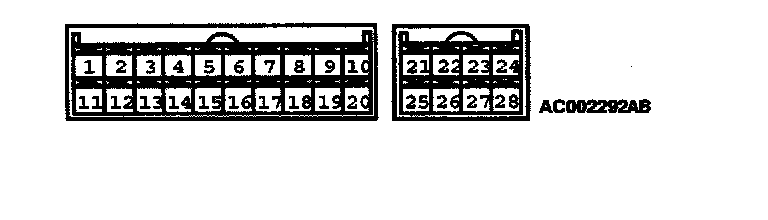

Terminal Arrangement:

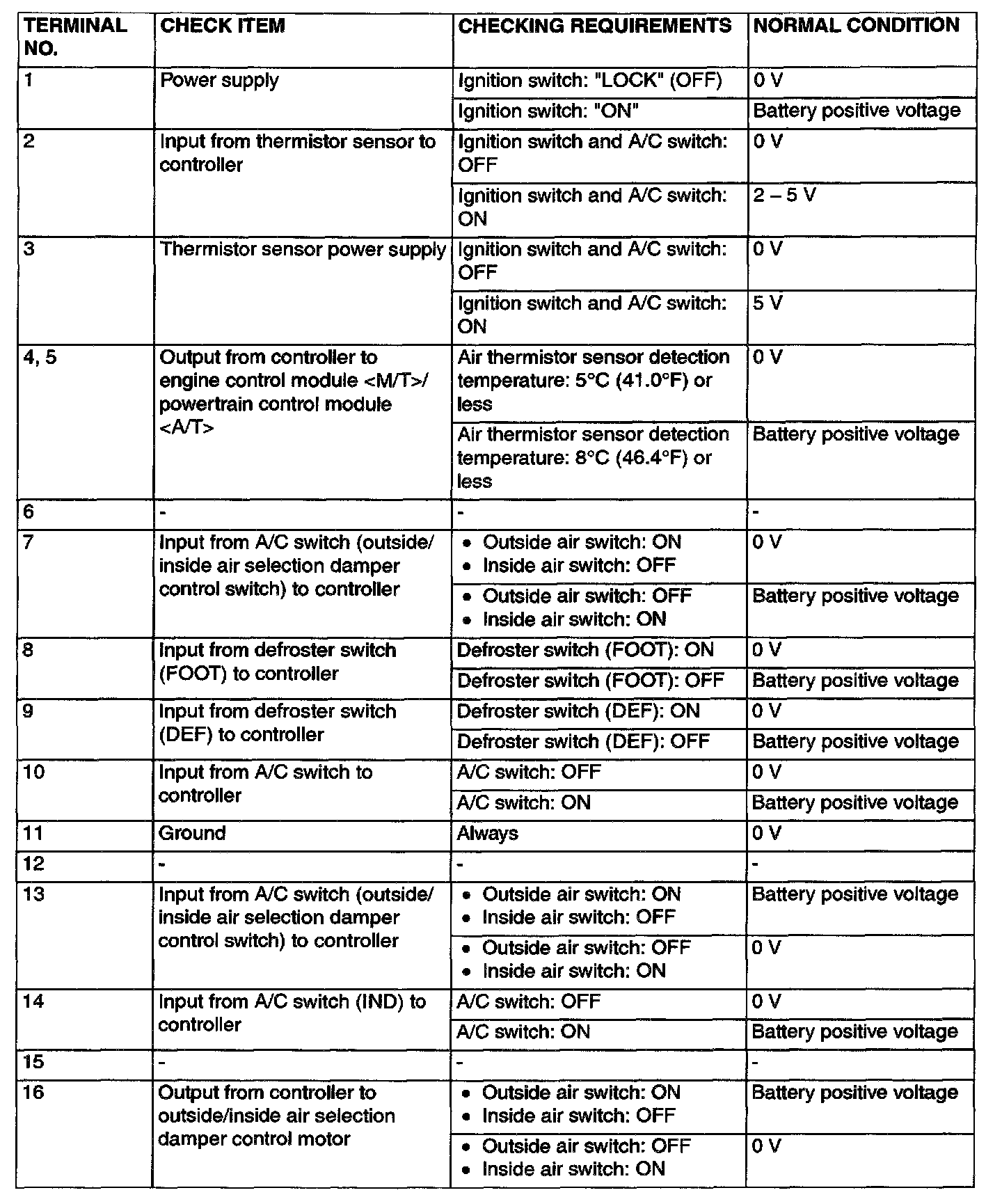

Terminal Nos: 1 - 16:

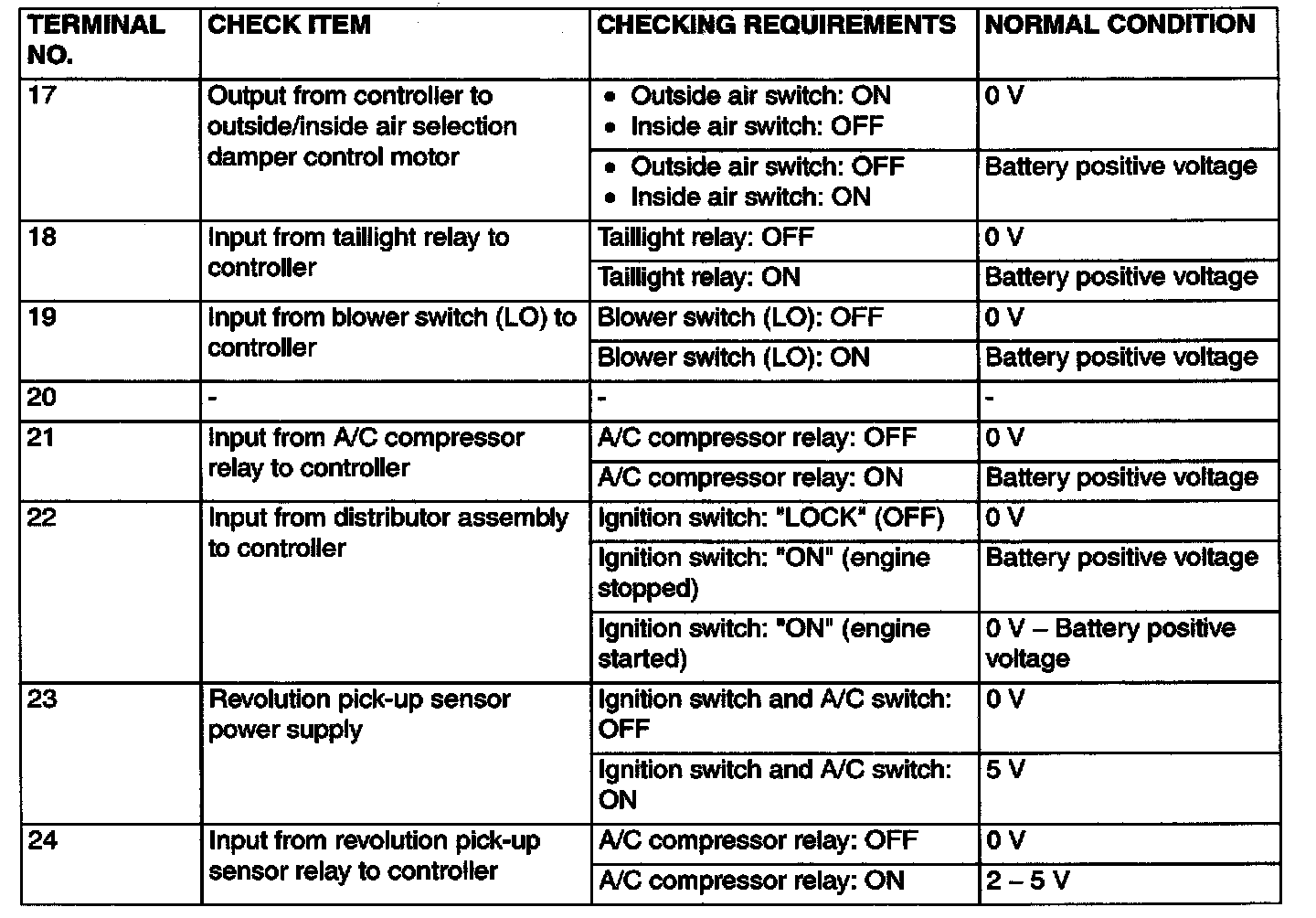

Terminal Nos: 17 - 24:
