Fog/Driving Lamp

This article has been updated per Mitsubishi TSB# 06-54-013

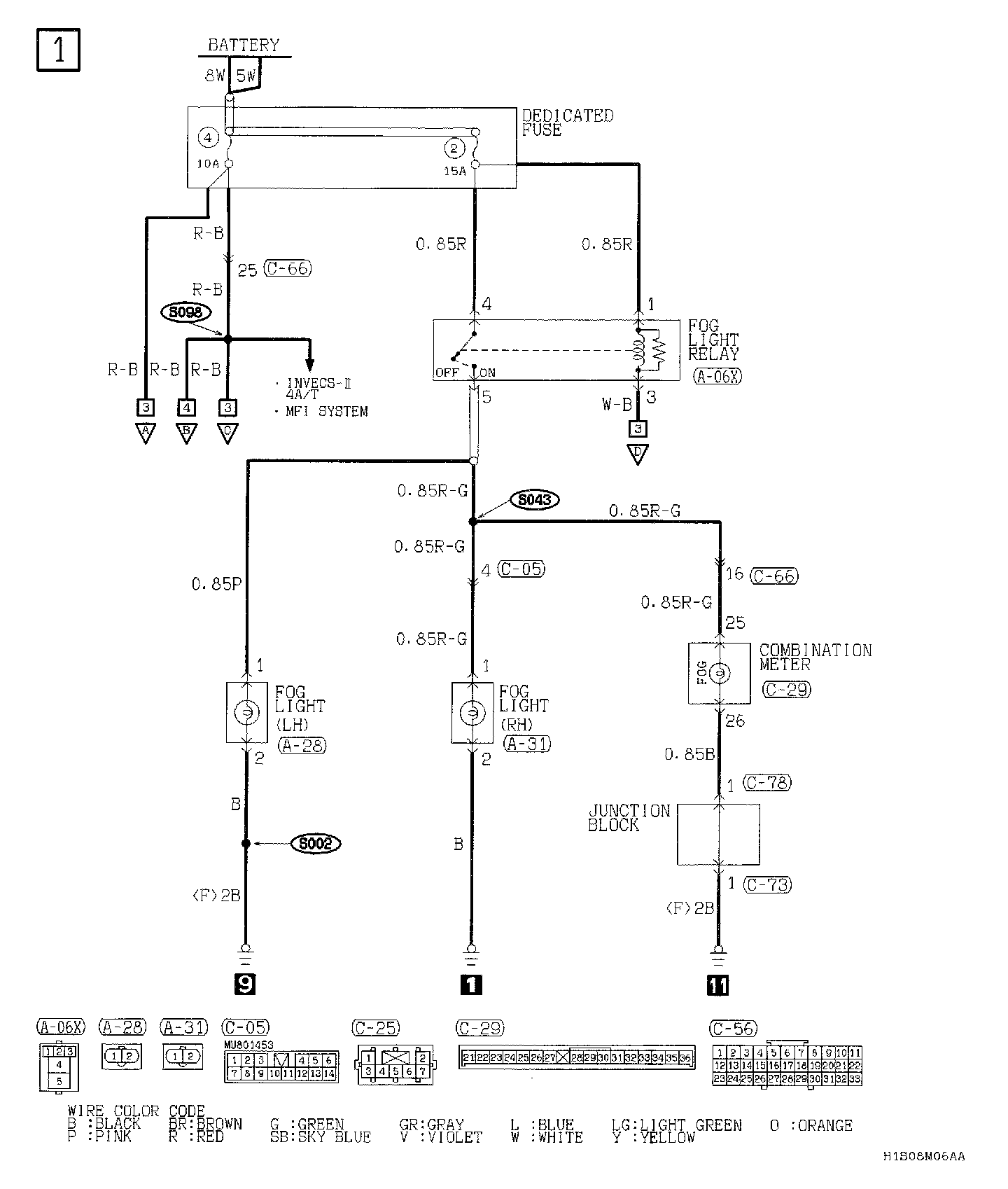

Fog Light Part 1:

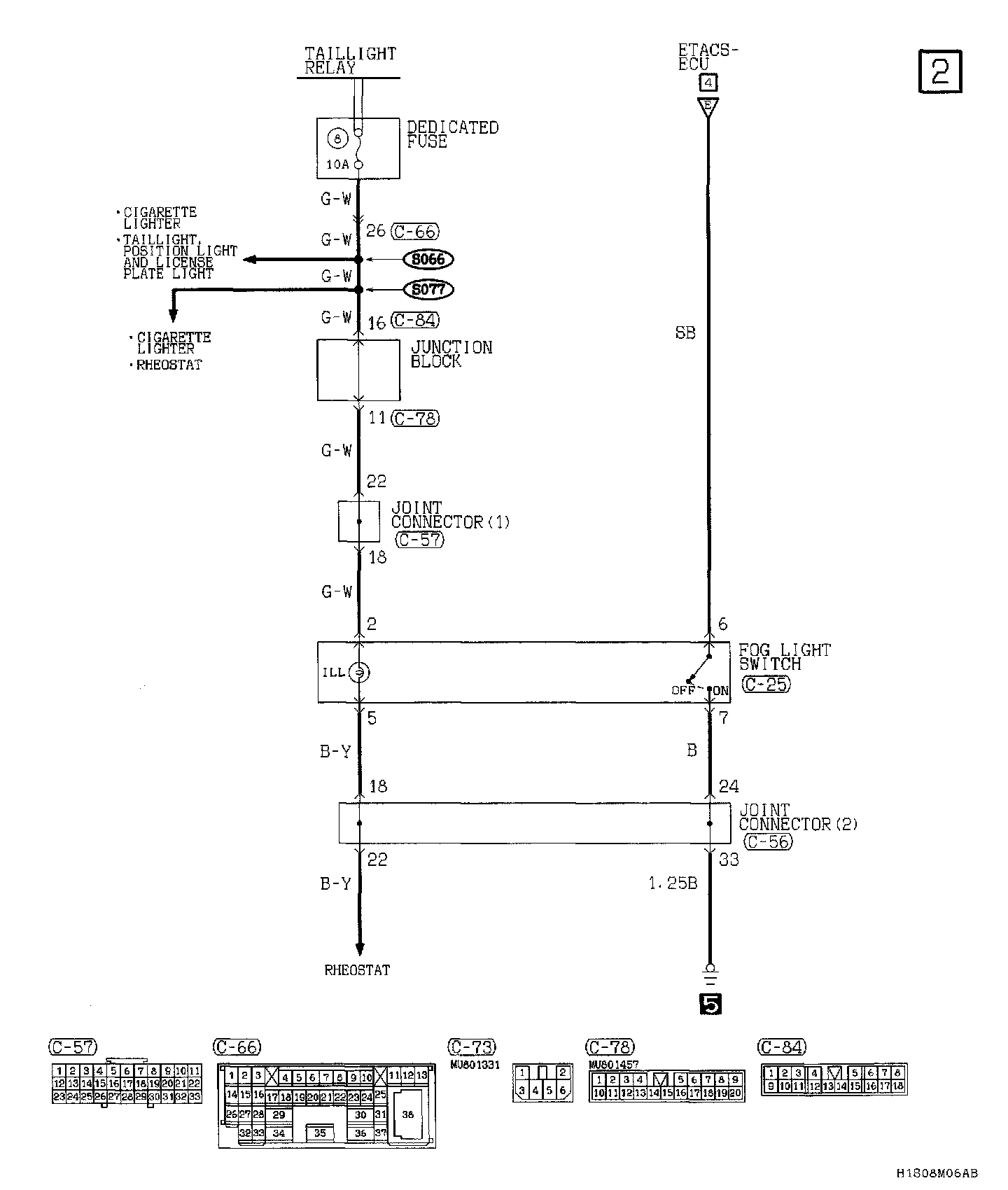

Part 2:

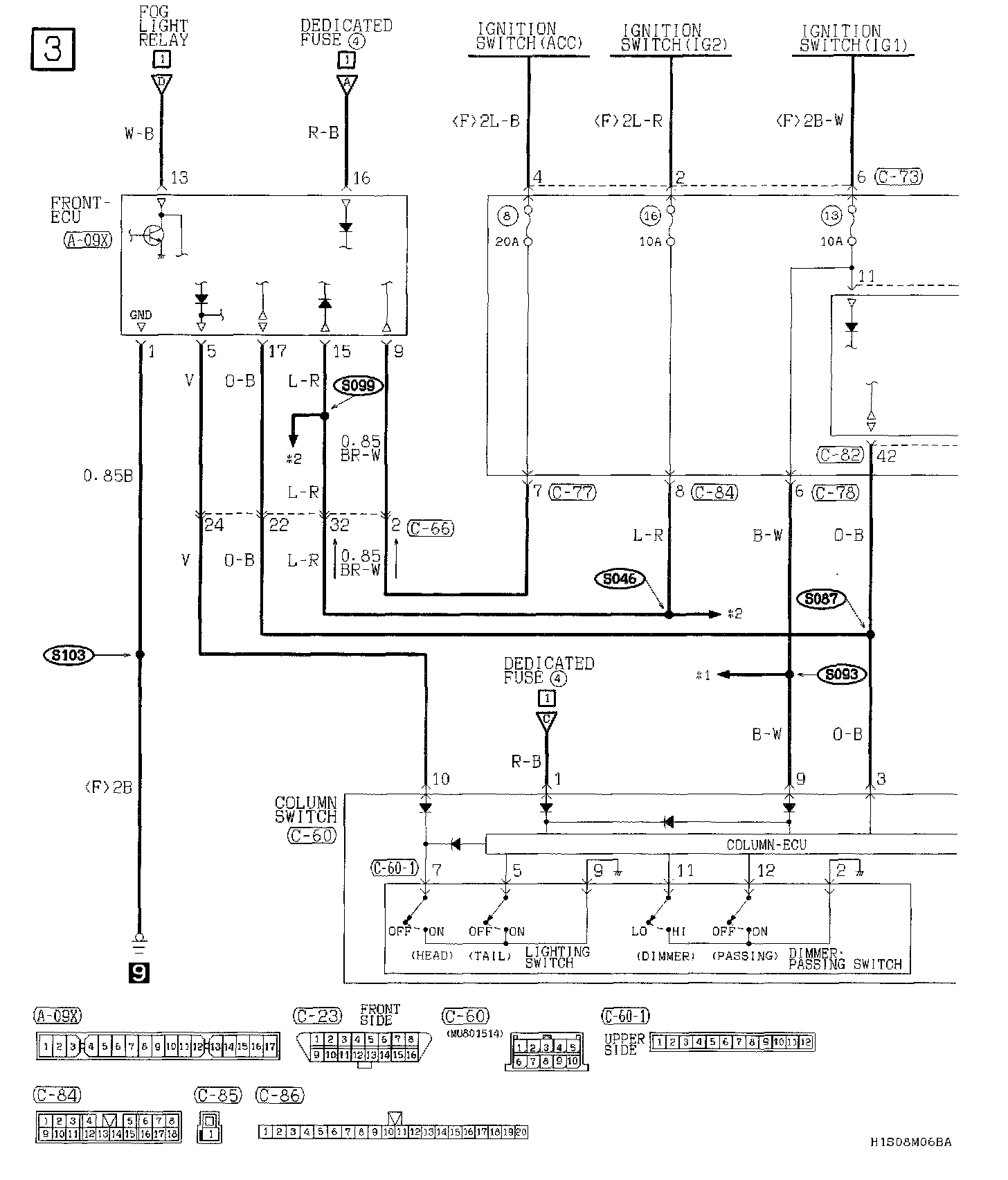

Part 3:

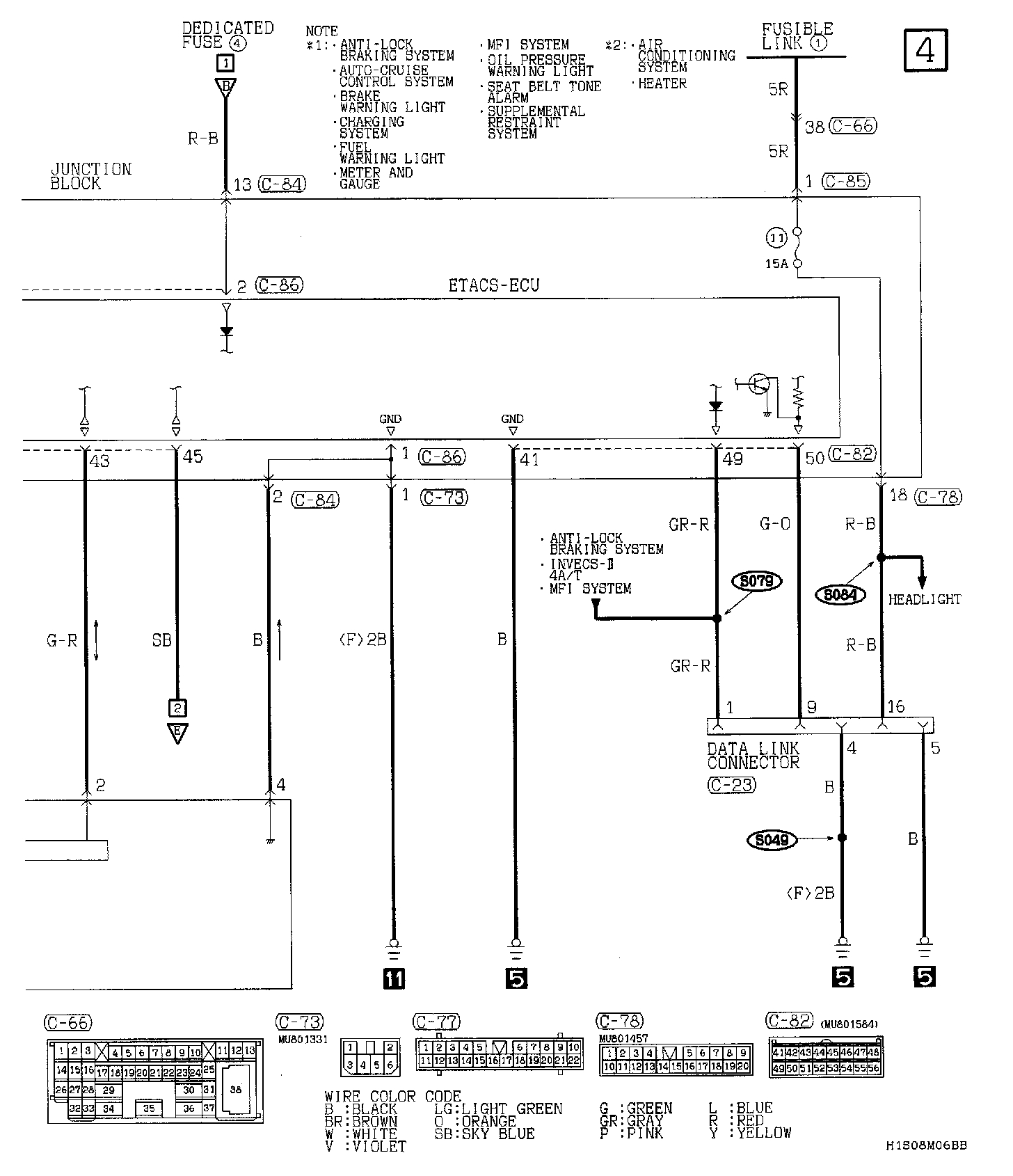

Part 4:
