Home >> Mitsubishi >> 2001 >> Galant GTZ V6-3.0L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antitheft and Alarm Systems >> Theft Alarm System

Theft Alarm System

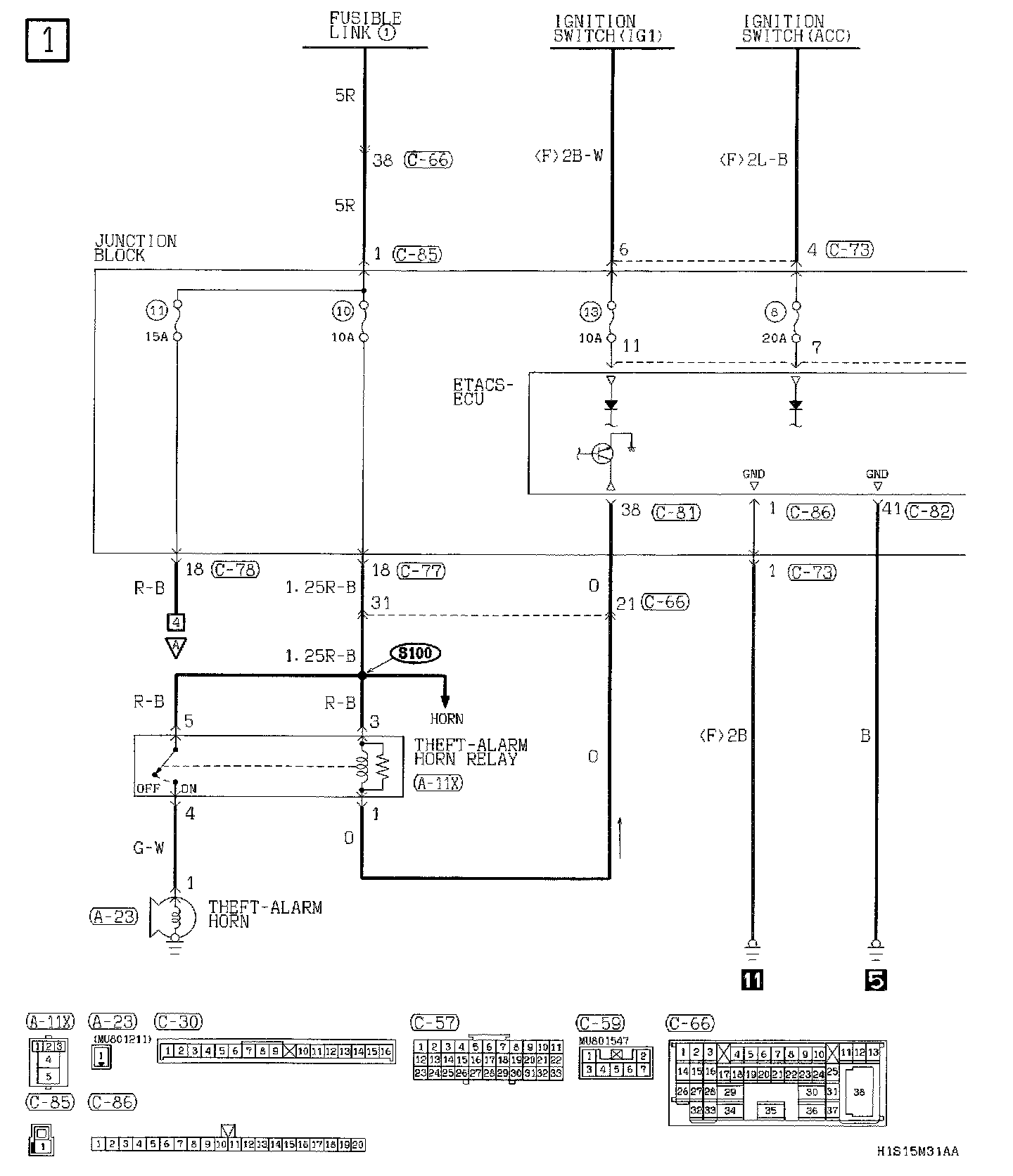

Theft-Alarm System Part 1:

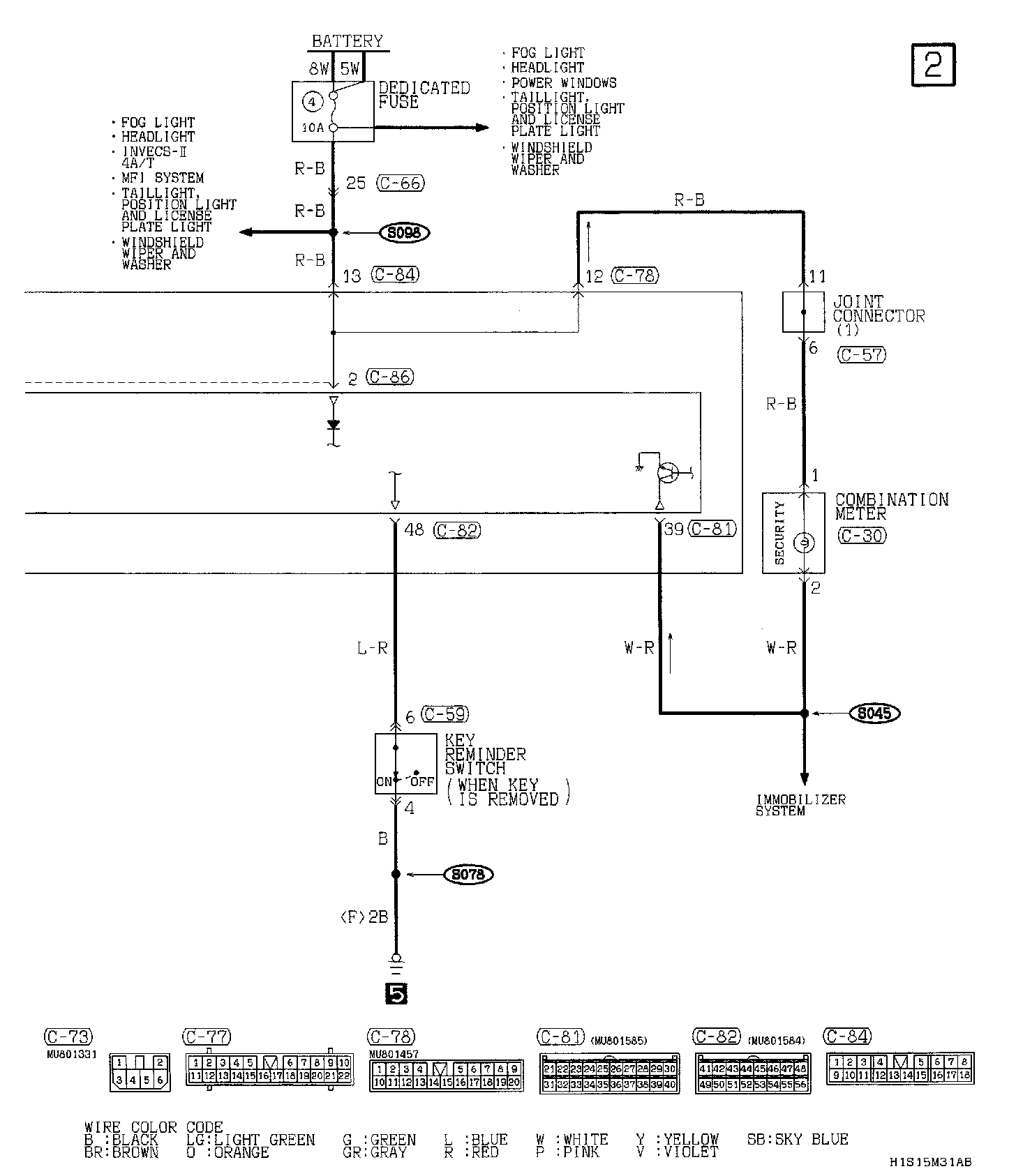

Part 2:

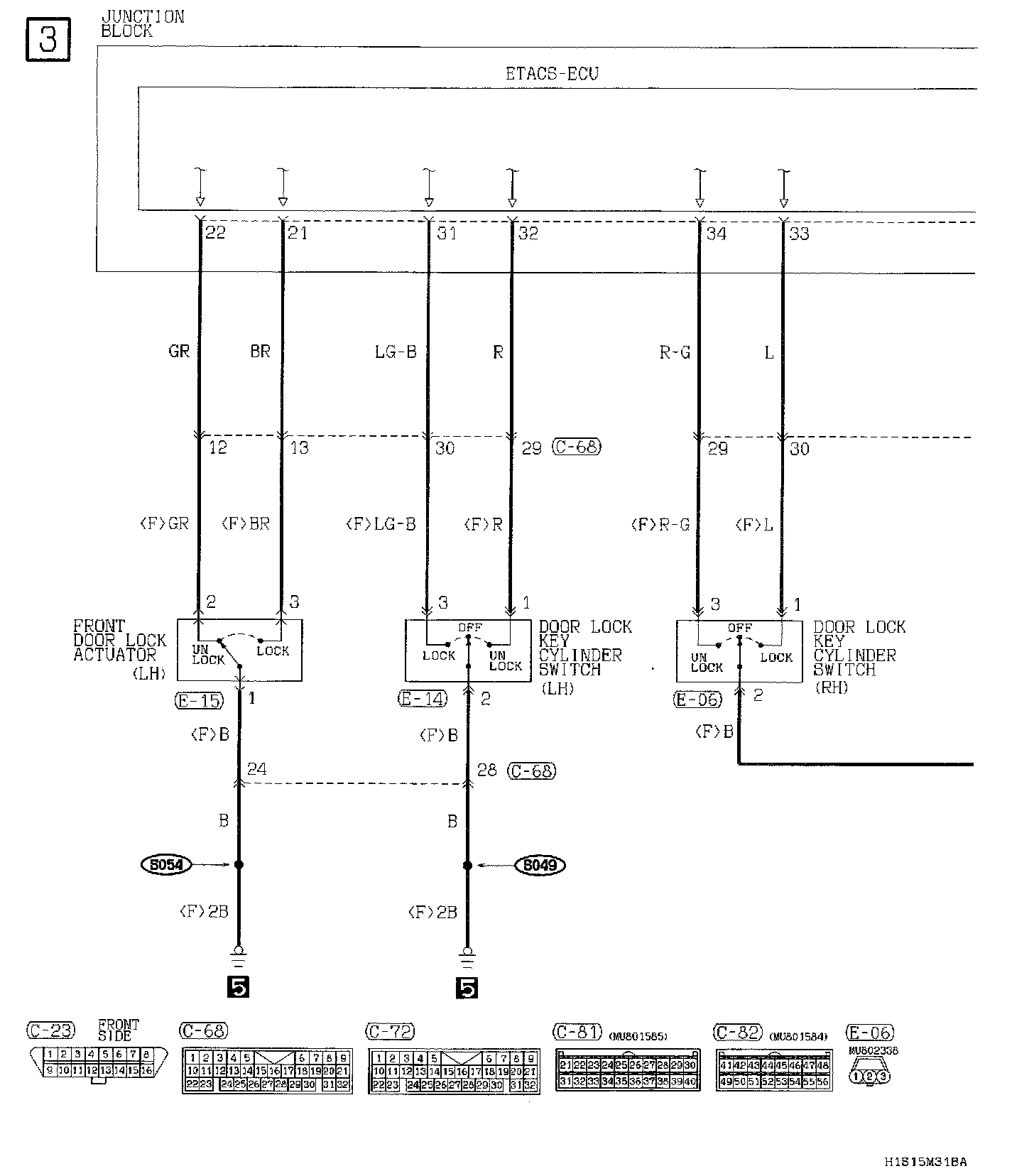

Part 3:

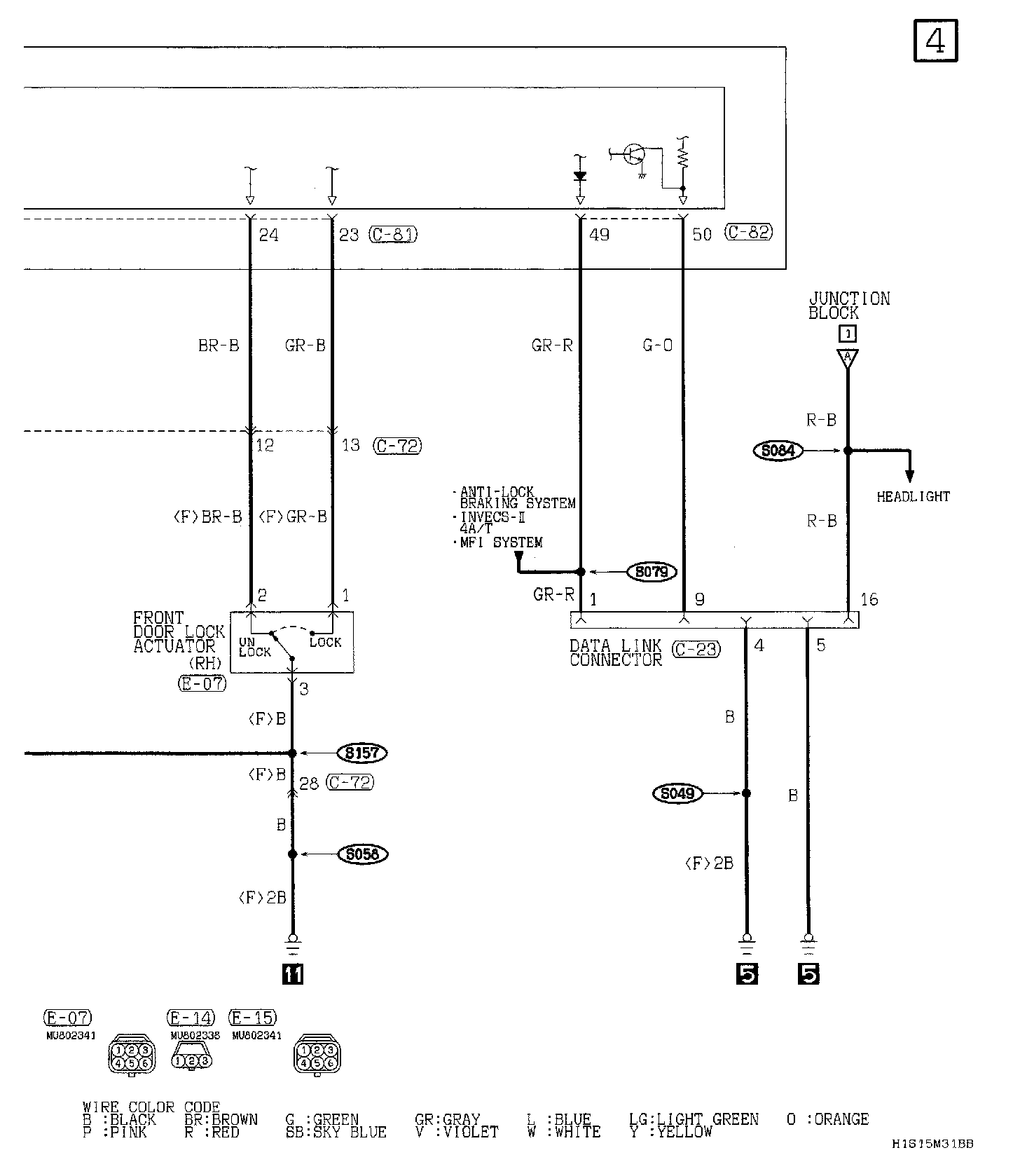

Part 4:

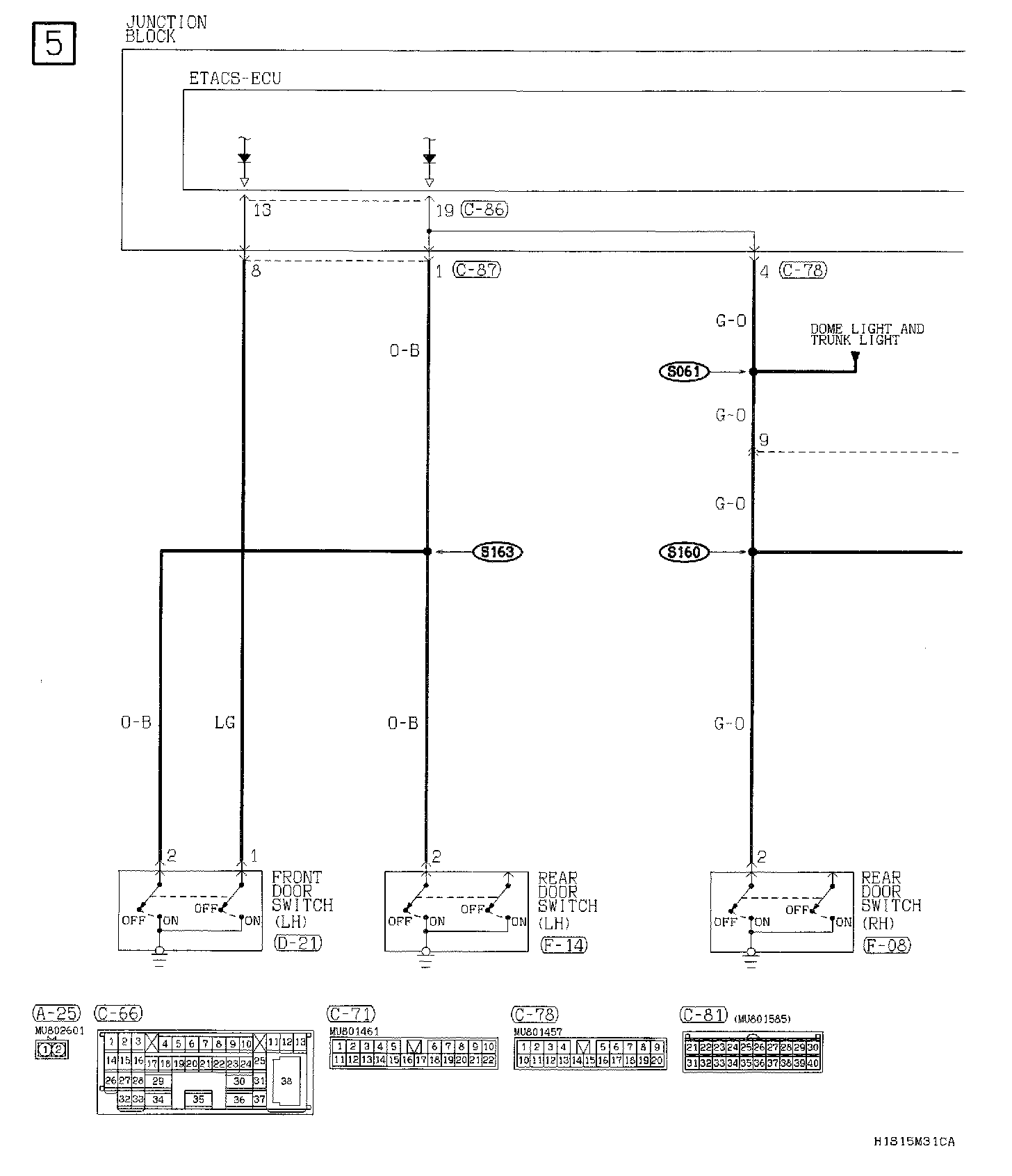

Part 5:

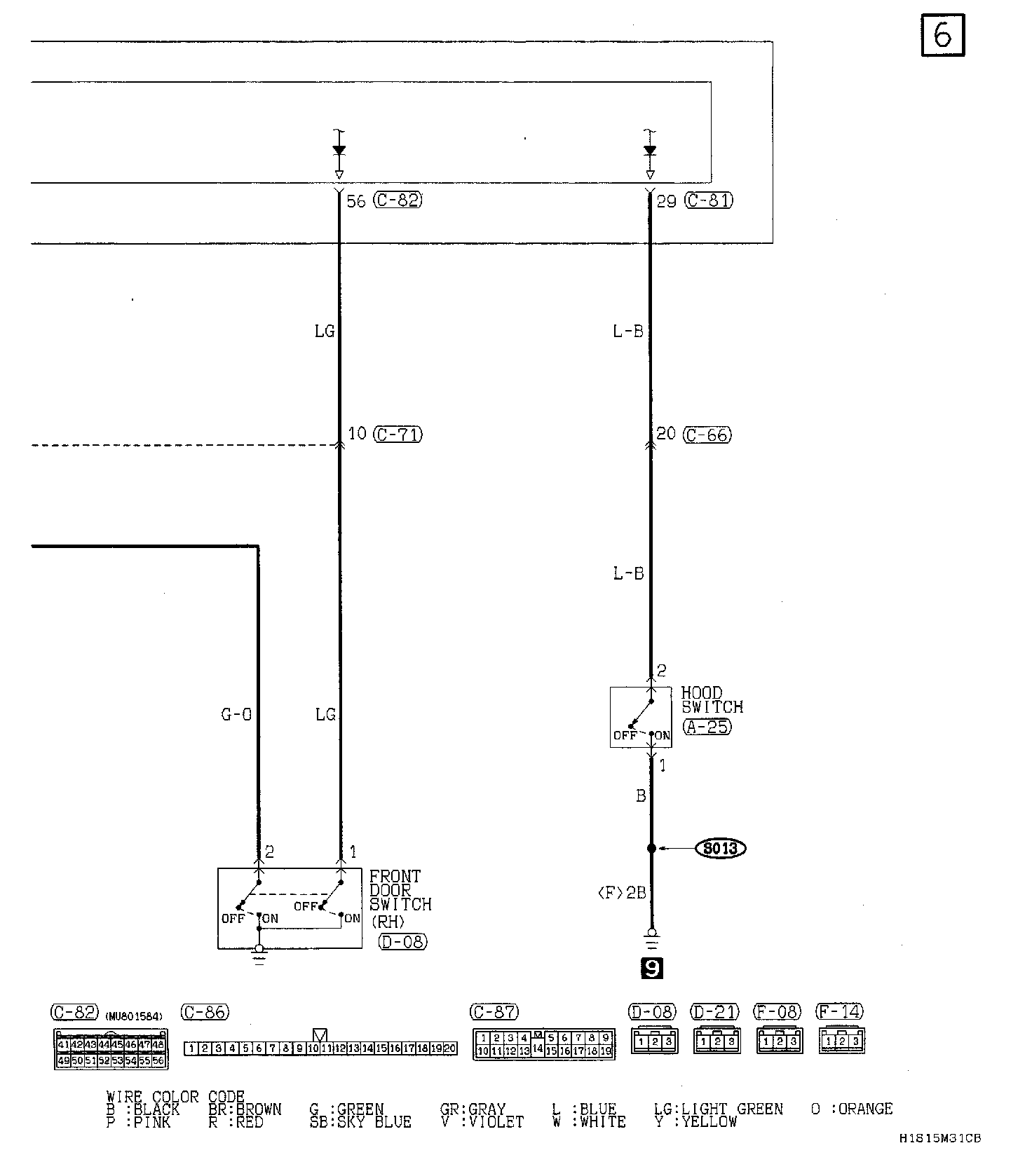

Part 6:

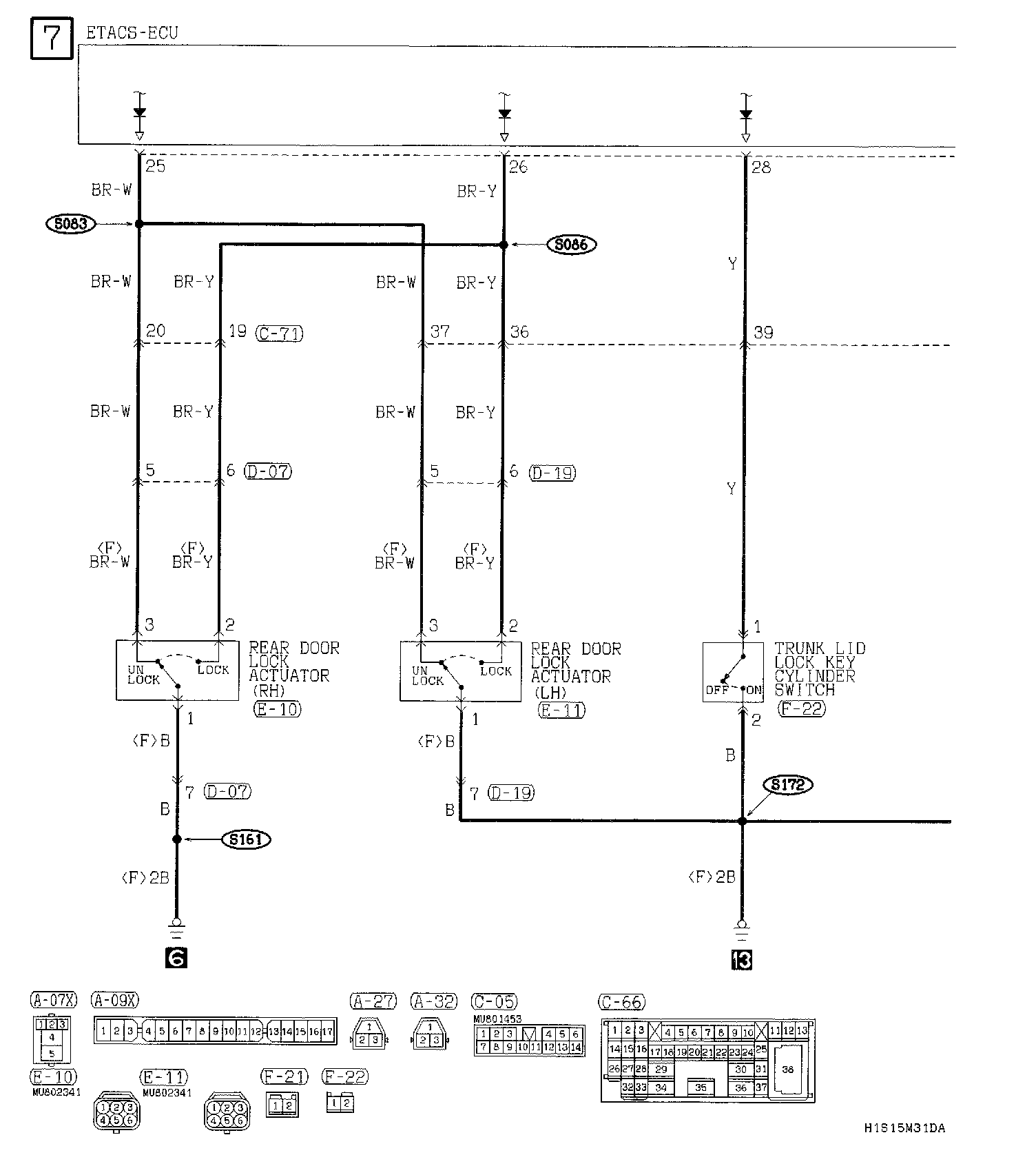

Part 7:

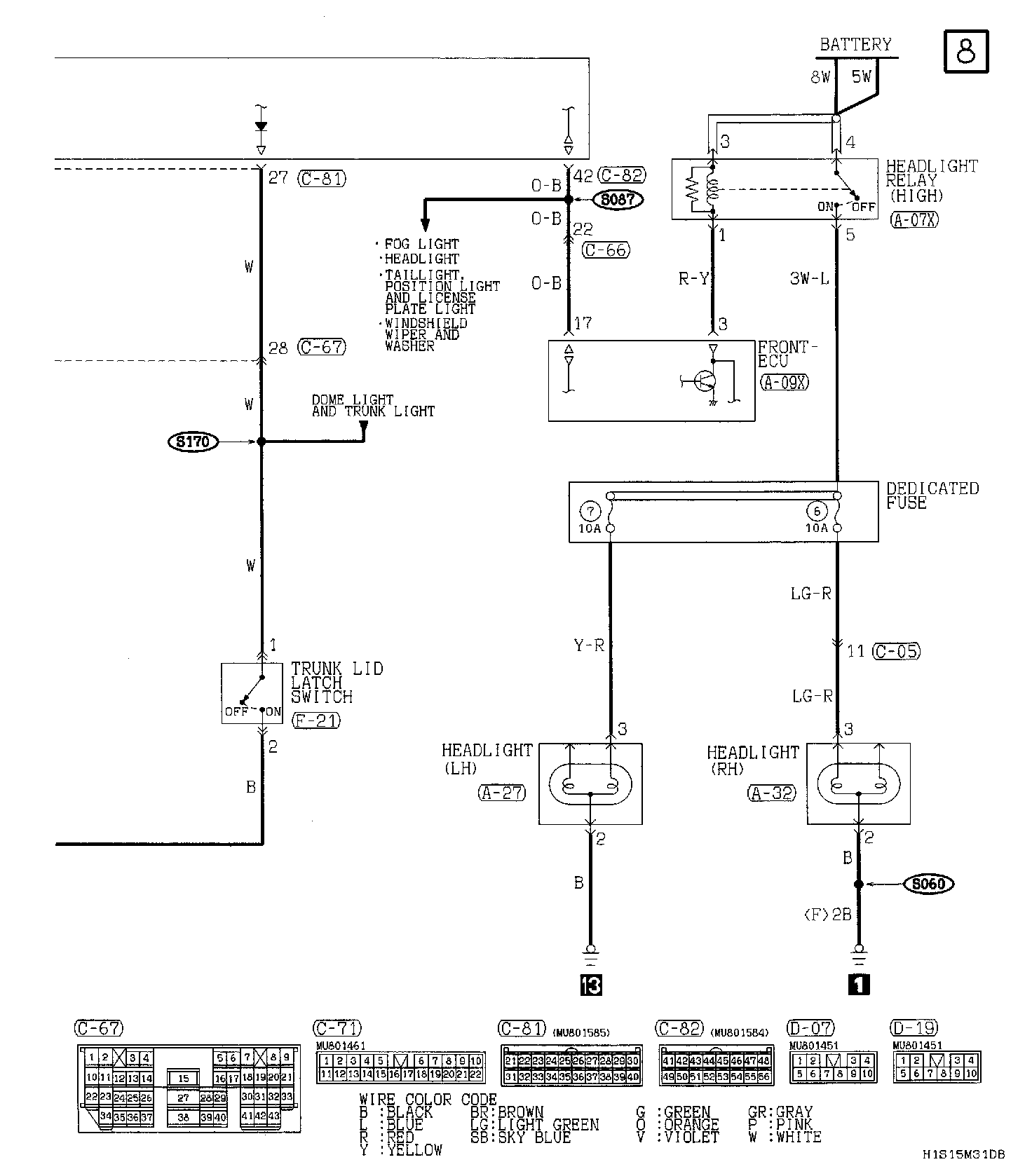

Part 8:
