Galant GTZ V6-3.0L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Sensors
Sensors

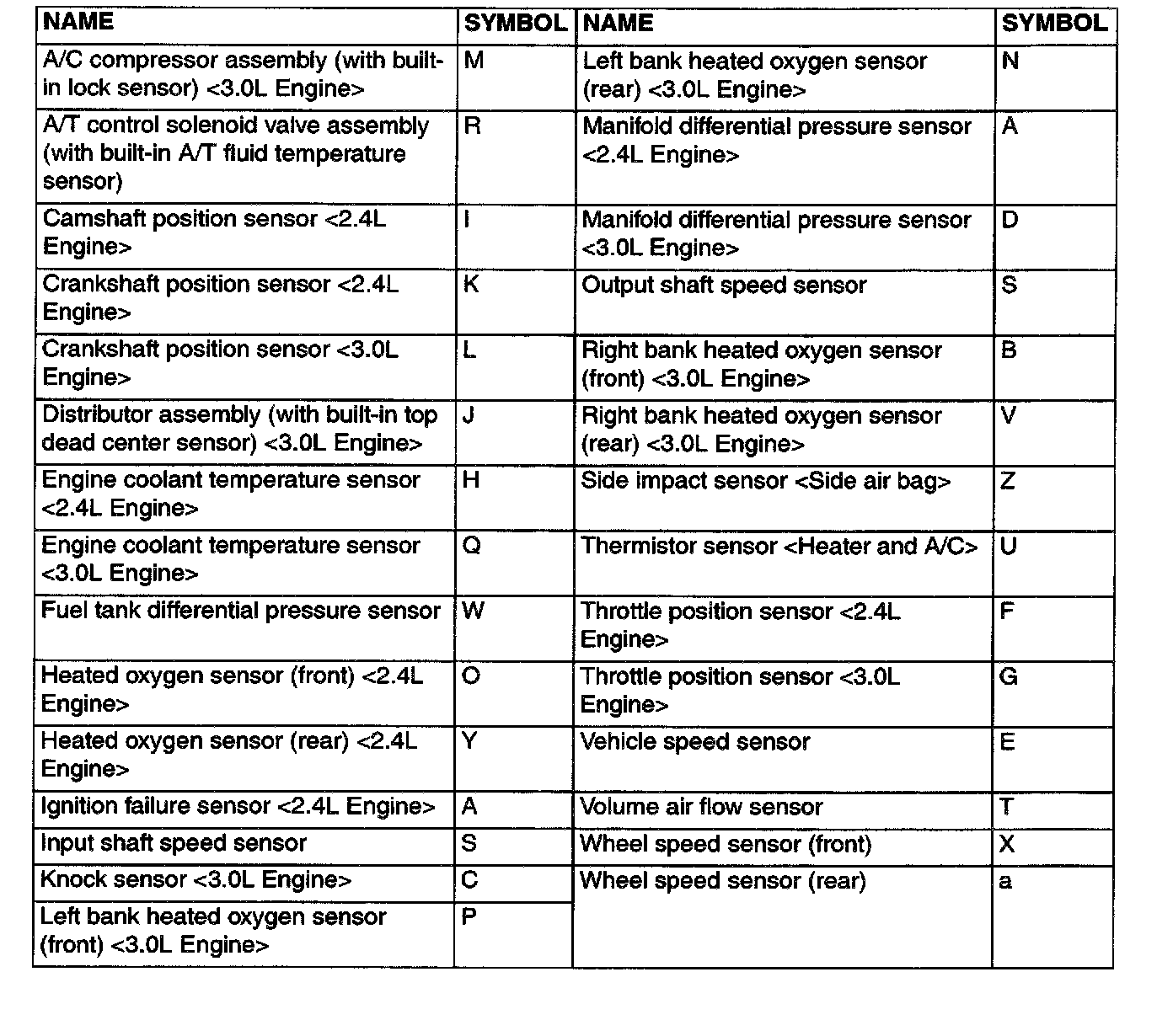

Location Chart:

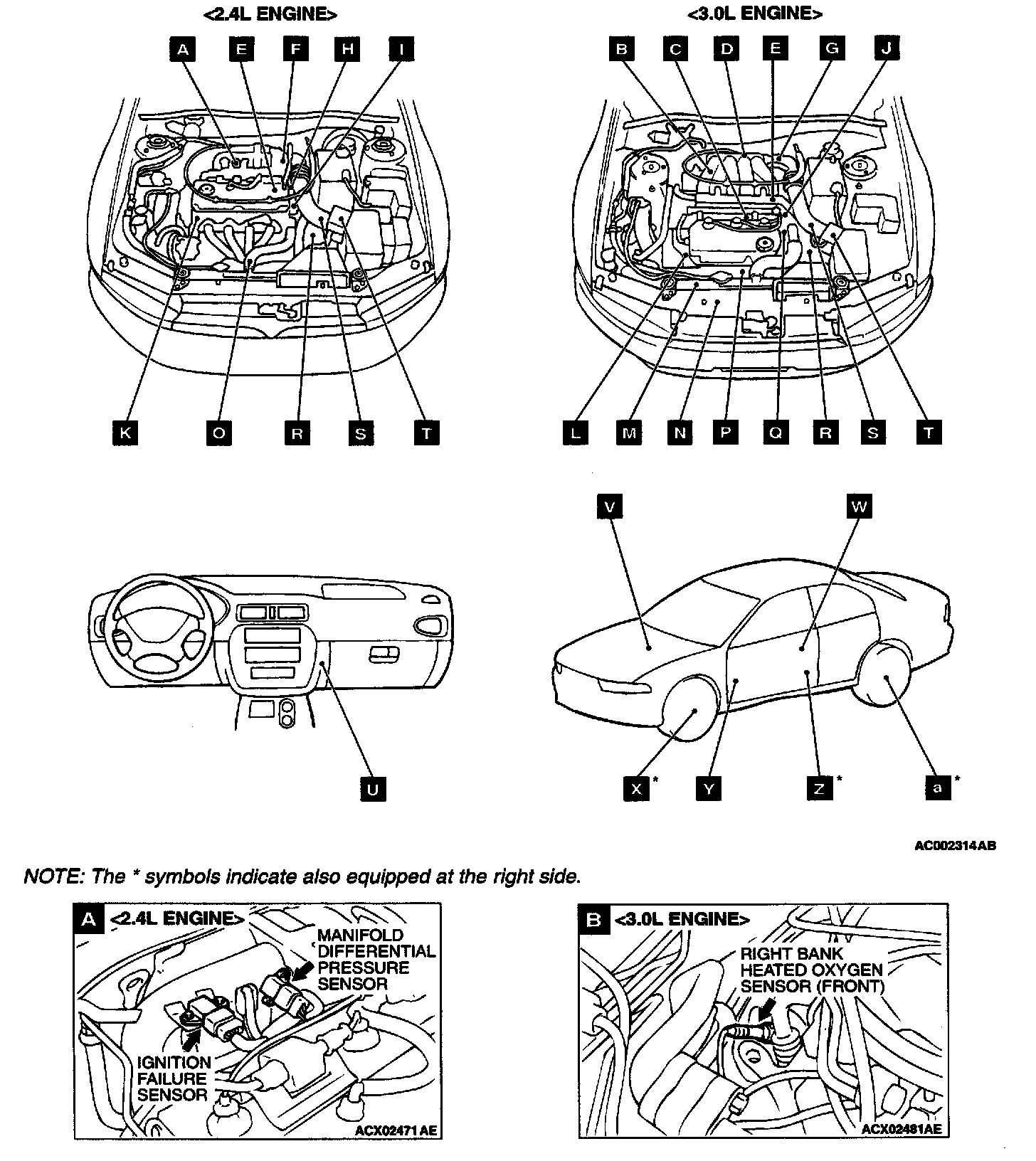

Overall View And Views A - B:

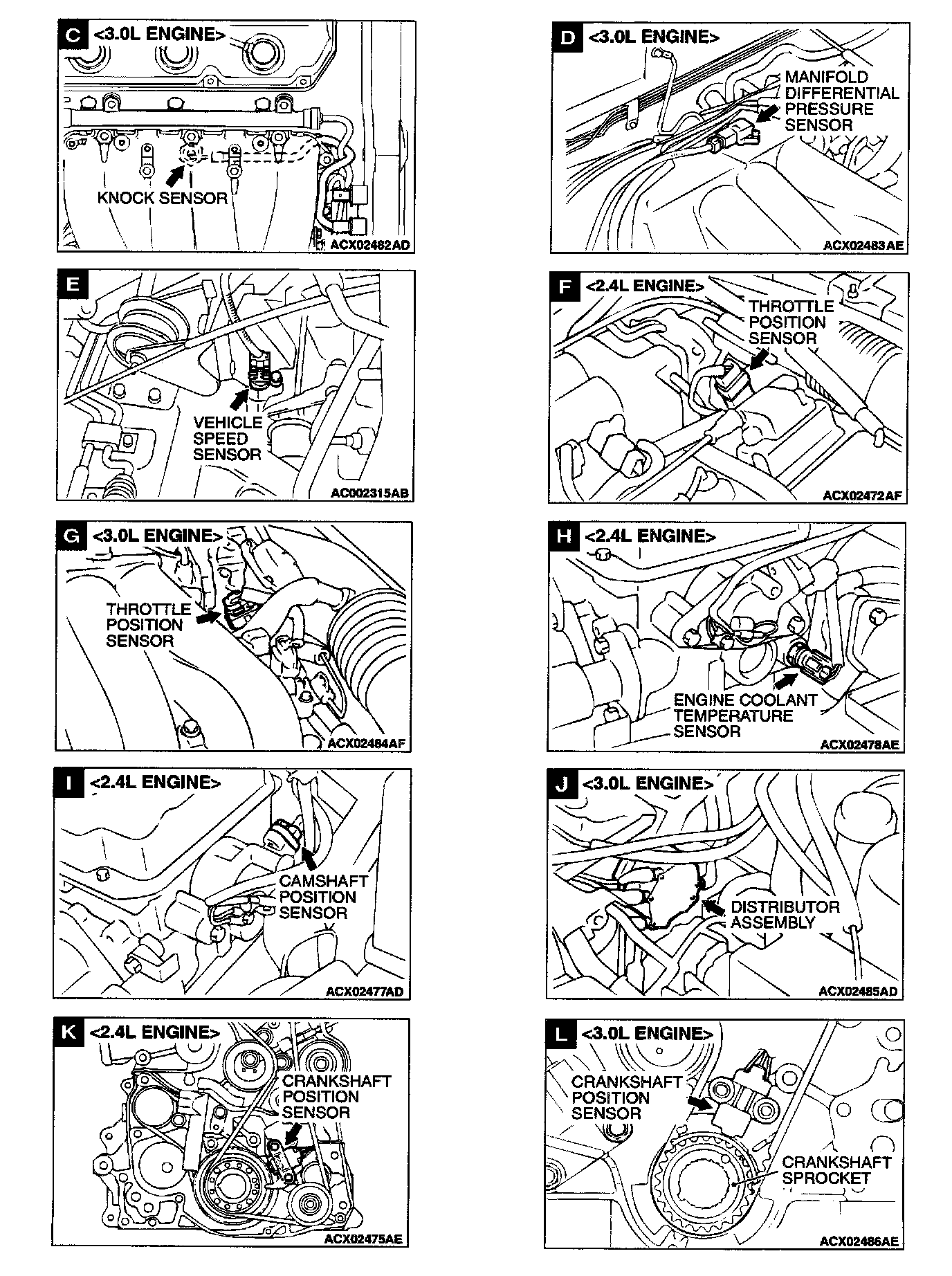

Views C - L:

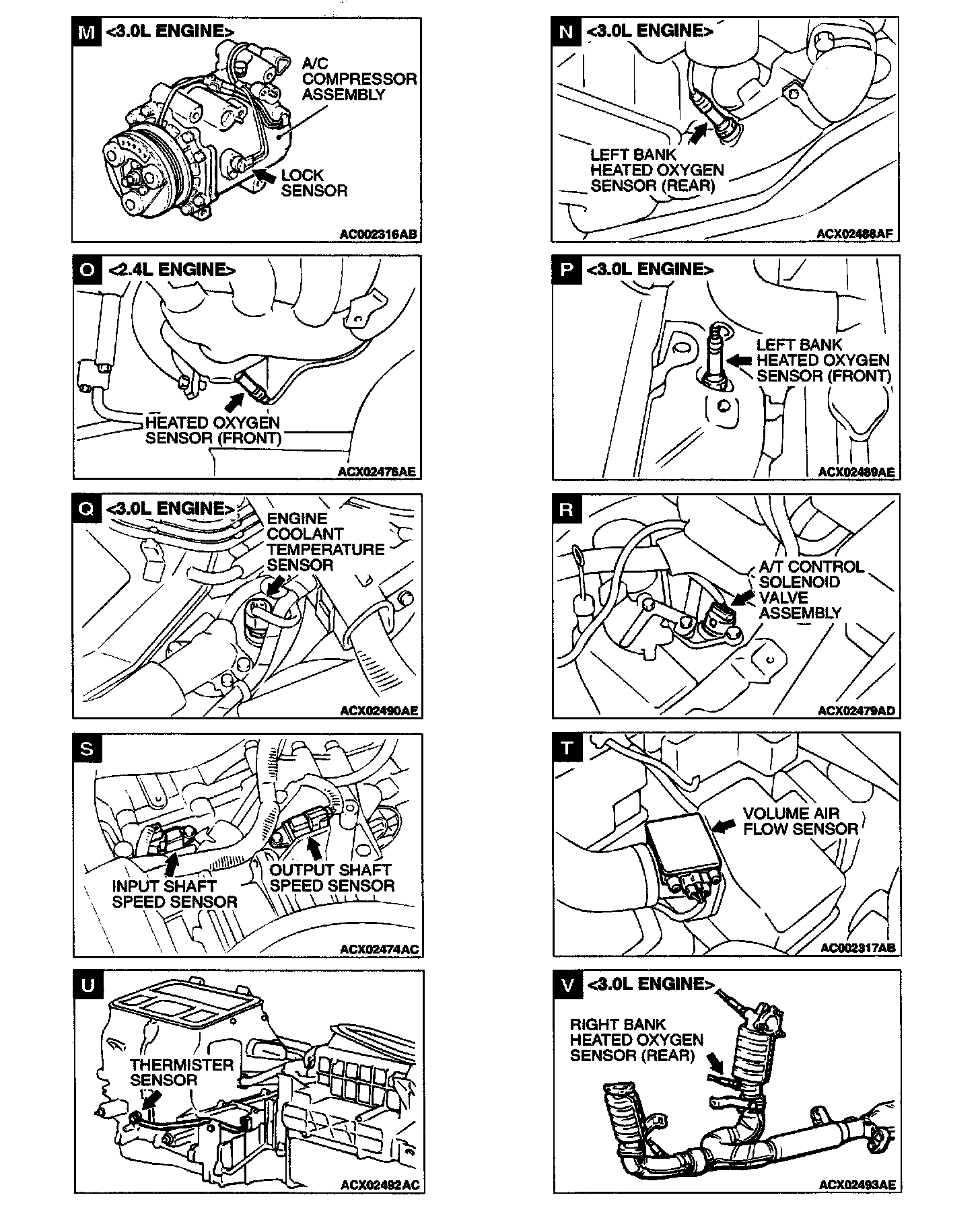

Views M - V:

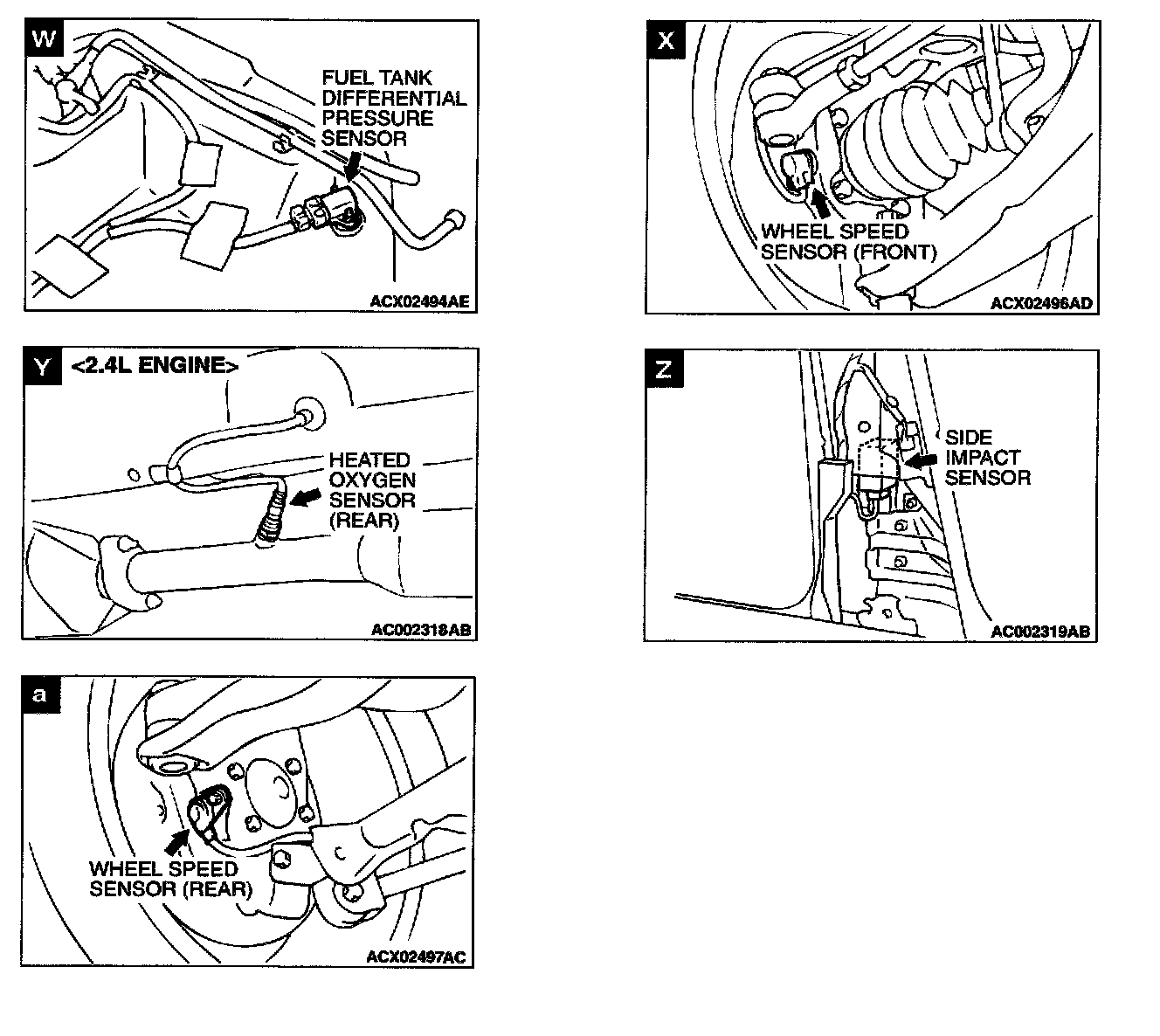

Views W - Z, a:
