Pinout Values and Diagnostic Parameters

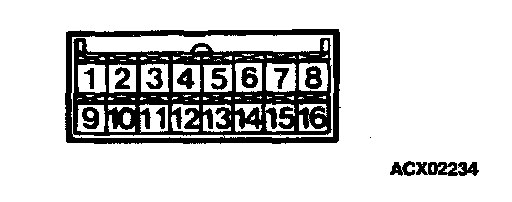

Terminal Arrangement:

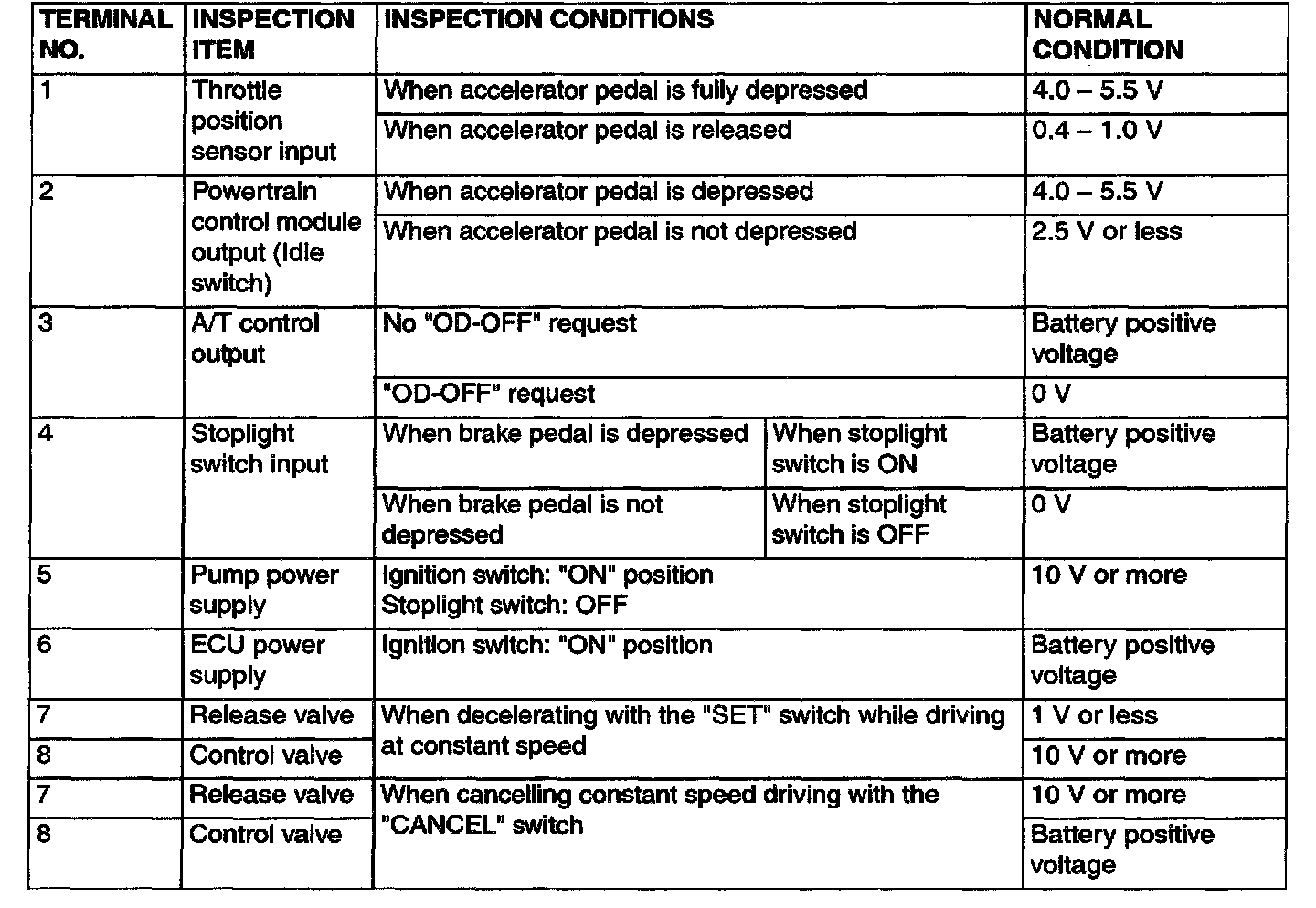

Terminal Nos: 1 - 8:

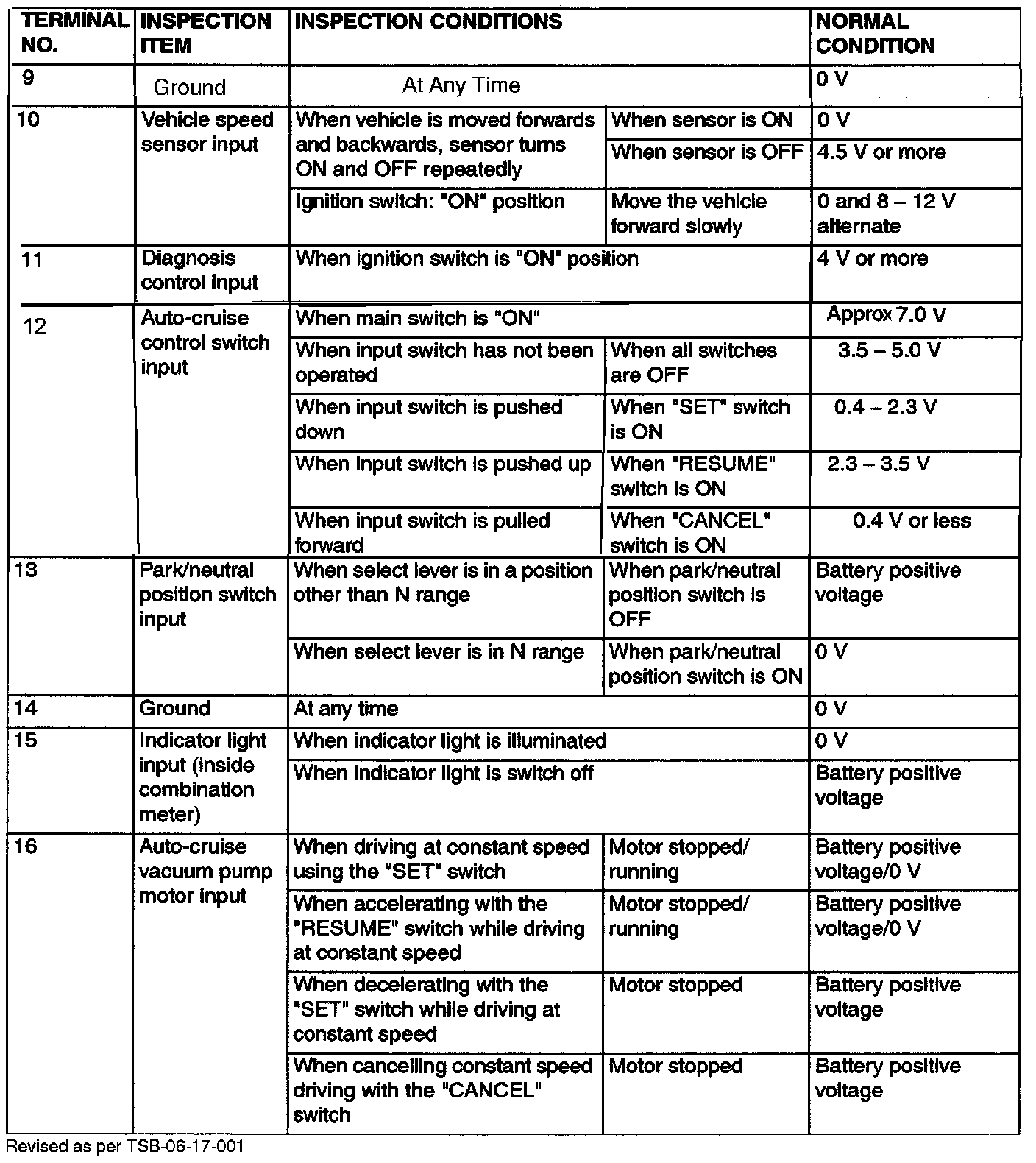

Terminal Nos: 9 - 16:
