Pinout Values and Diagnostic Parameters

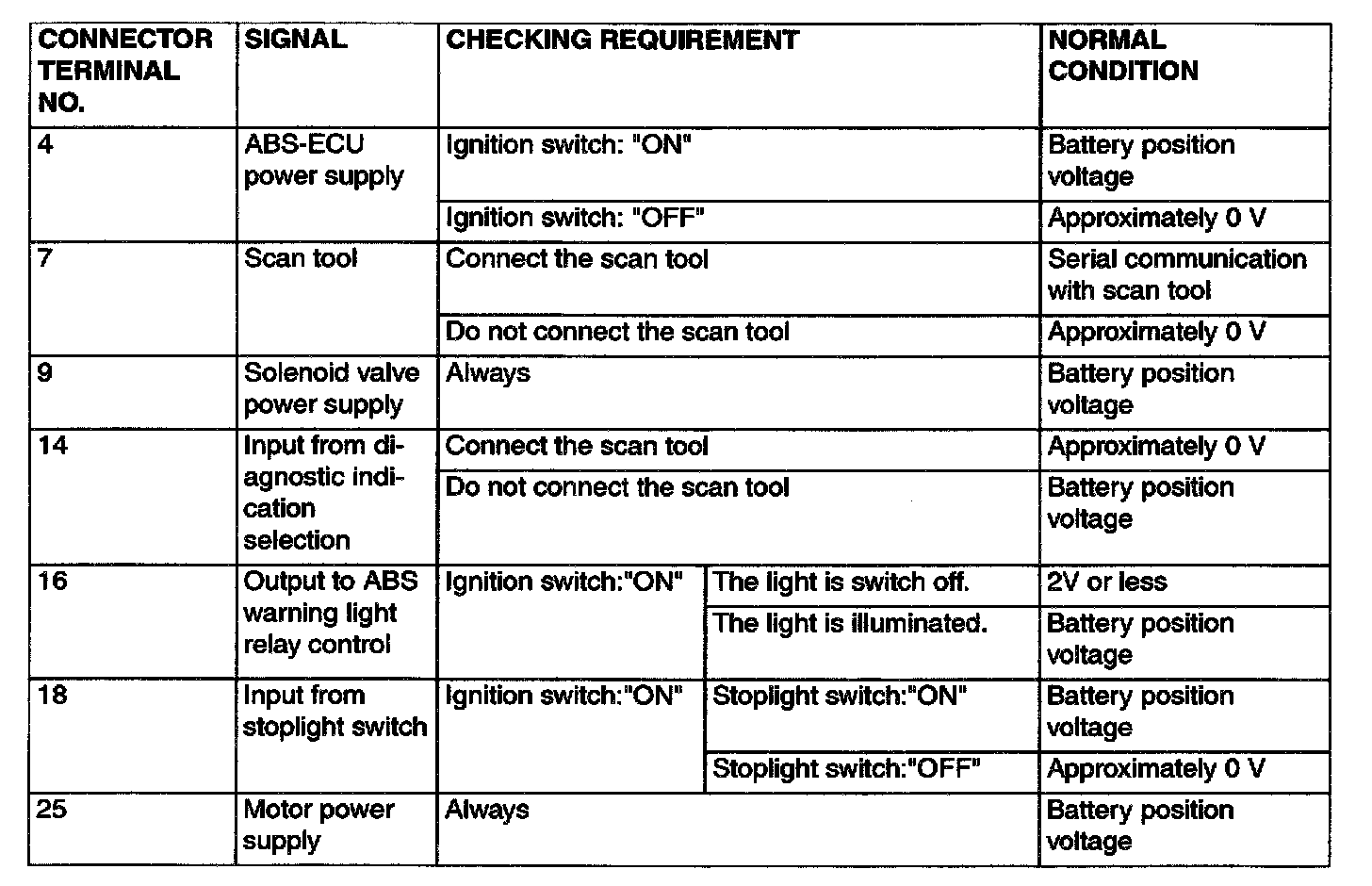

TERMINAL VOLTAGE CHECK CHART








1. Measure the voltages between terminals 8 and 24 (ground terminals) and each respective terminal.
2. The terminal layouts are shown in the illustrations.

NOTE: Do not measure terminal voltage for approximately three seconds aver ignition switch is turned to "ON" The ABS-ECU performs the initial check during that period.

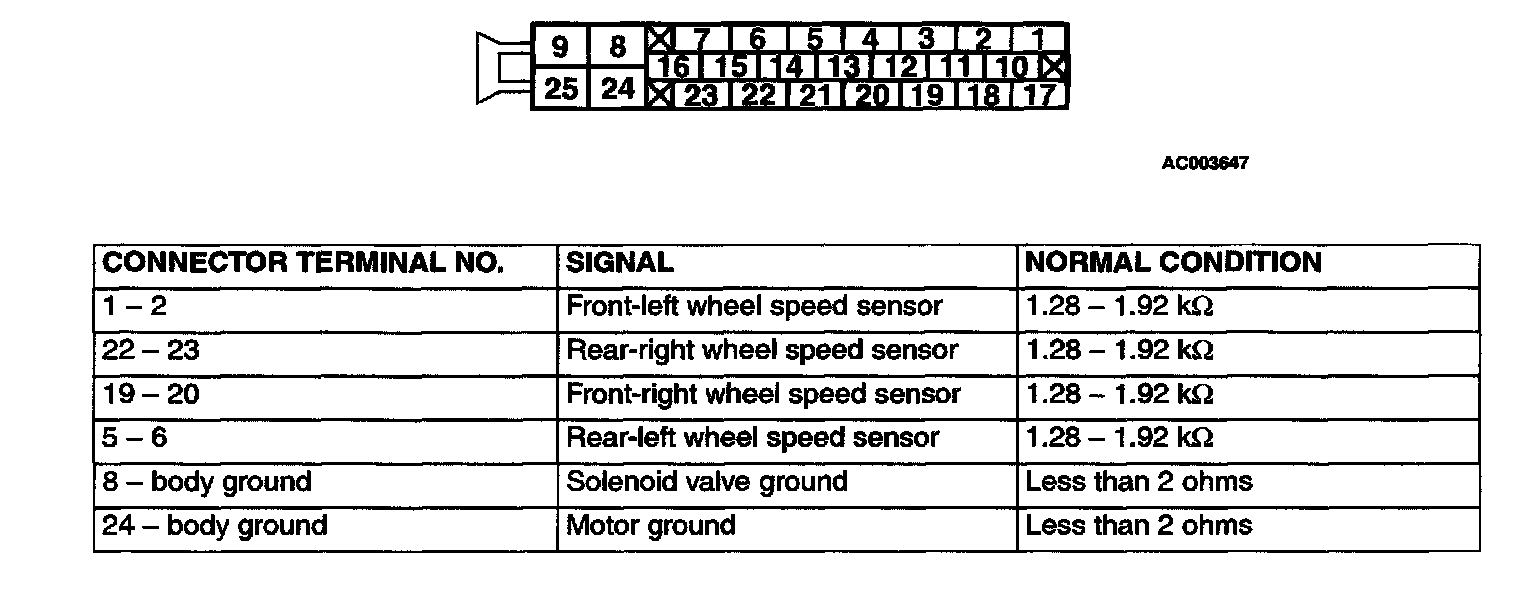

RESISTANCE AND CONTINUITY BETWEEN HARNESS-SIDE CONNECTOR TERMINALS





1. Turn the ignition switch to the "LOCK" (OFF) position and disconnect the ABS-ECU connectors before checking resistance and continuity.
2. Check between the terminals indicated in the table.
3. The terminal layouts are shown in the illustration.
