Rear Cross-Member: Service and Repair

REMOVAL AND INSTALLATION

CAUTION: Indicates parts which should be temporarily tightened, and then fully tightened with the vehicle on the around in the unladen condition.

Removal Service Points
[[A]] Brake Caliper Assembly Removal
Secure the removed caliper assembly with a wire, so that it does not fall.

[[B]] Crossmember Mounting Nut Removal

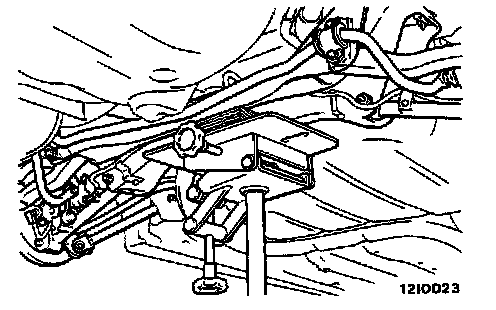

Support the crossmember with a garage jack or transmission jack to remove the crossmember mounting nut.

Installation Service Point
]]A[[ Stopper B/Stopper A Installation





1. Install stopper B in the shown direction.
2. Install stopper A in the shown direction while checking that the notches on stopper A are engaged with the projections on the trailing arm bushing.

INSPECTION
Check crossmember for cracks or other damage.
