Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Mitsubishi
>>
2001
>>
Galant ES L4-2350cc 2.4L SOHC MFI
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse
>>
Application and ID
>>
Dedicated Fuse (Engine Compartment)
Dedicated Fuse (Engine Compartment)
Dedicated Fuse Location Index Part 1:
Part 2:

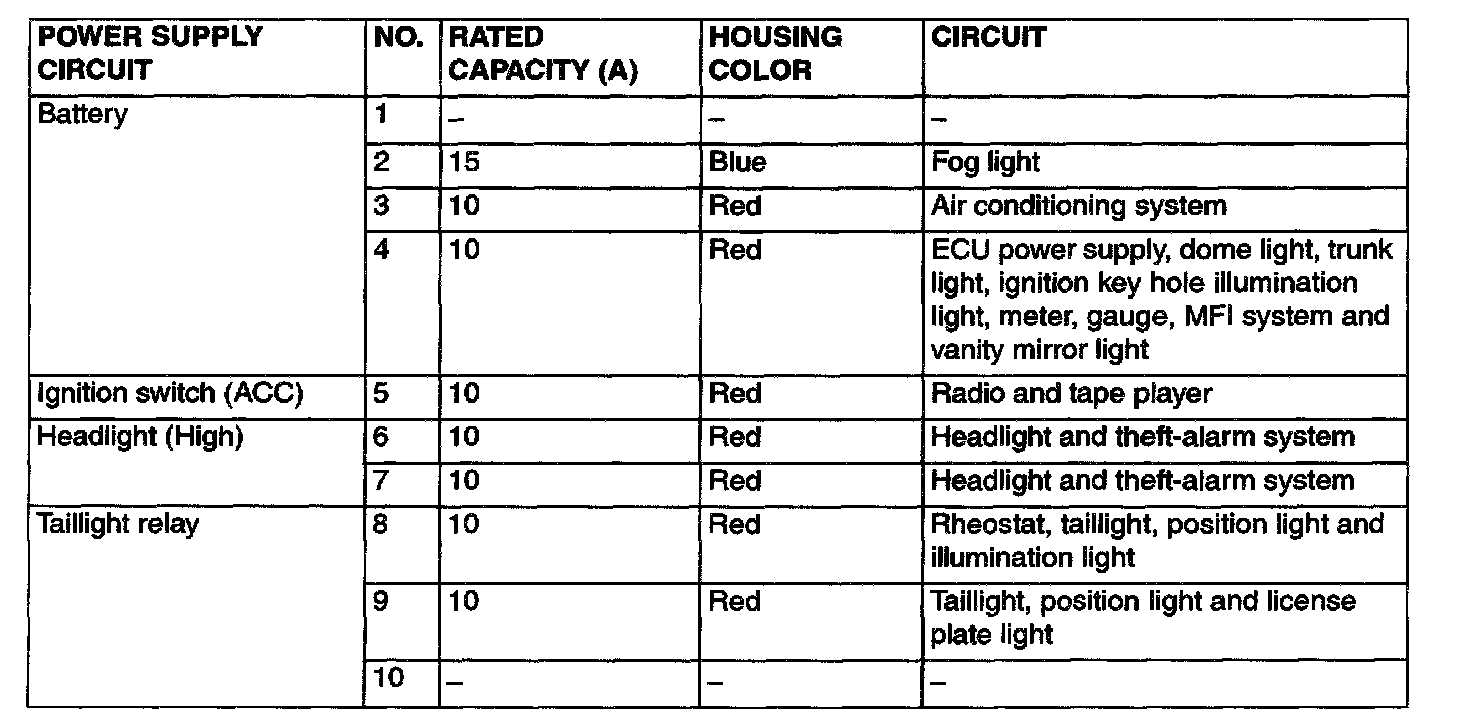

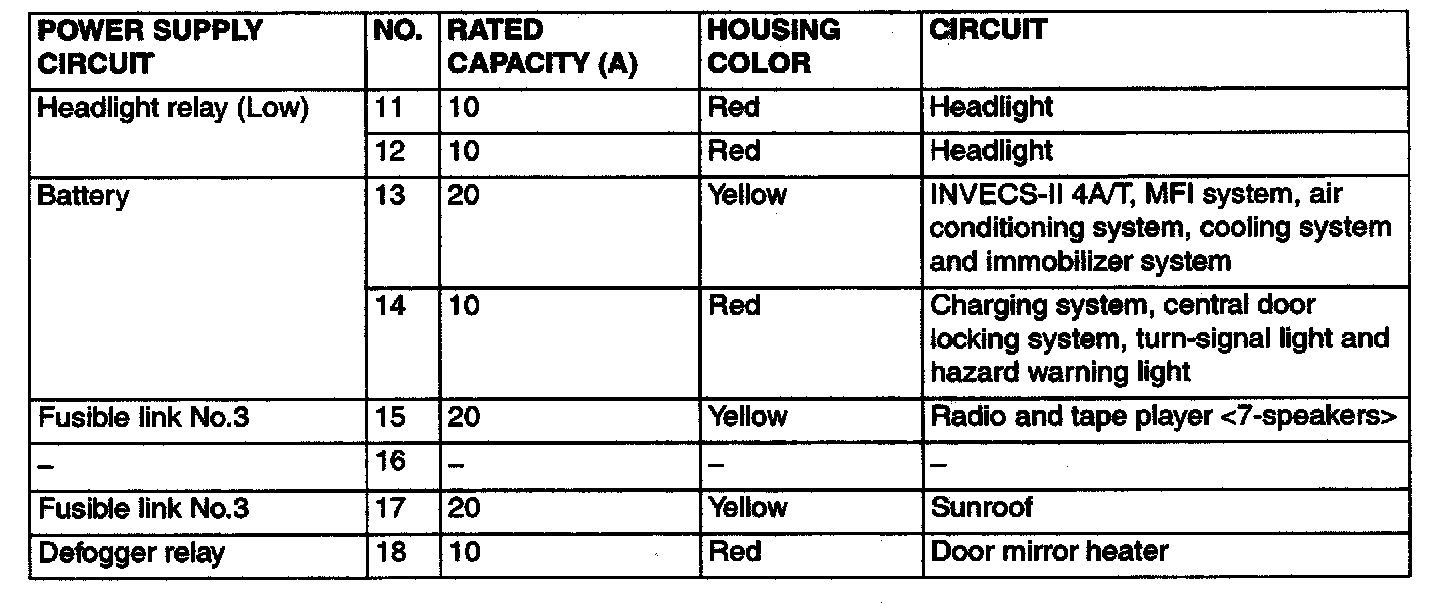

Dedicated Fuses 1 - 14 (Relay Box In Engine Compartment):

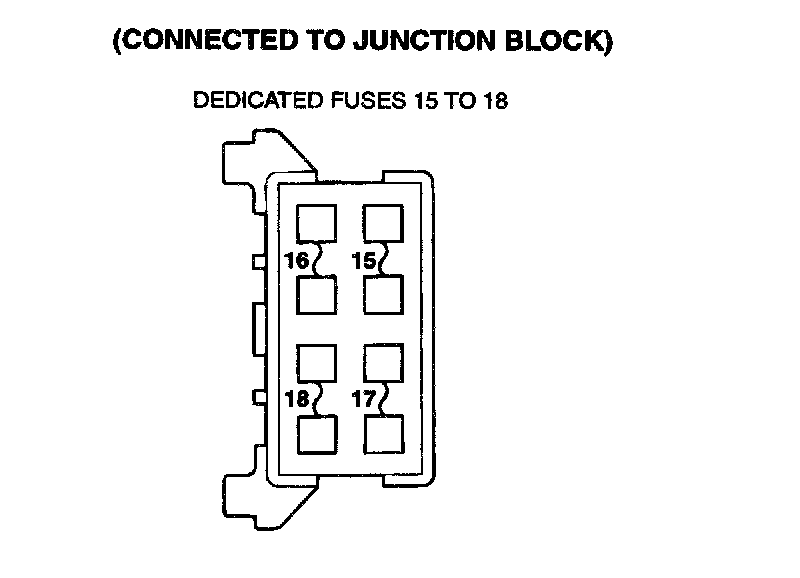

Dedicated Fuses 15 - 18 (Connected To Junction Block):
