Galant ES L4-2350cc 2.4L SOHC MFI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Ignition System
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

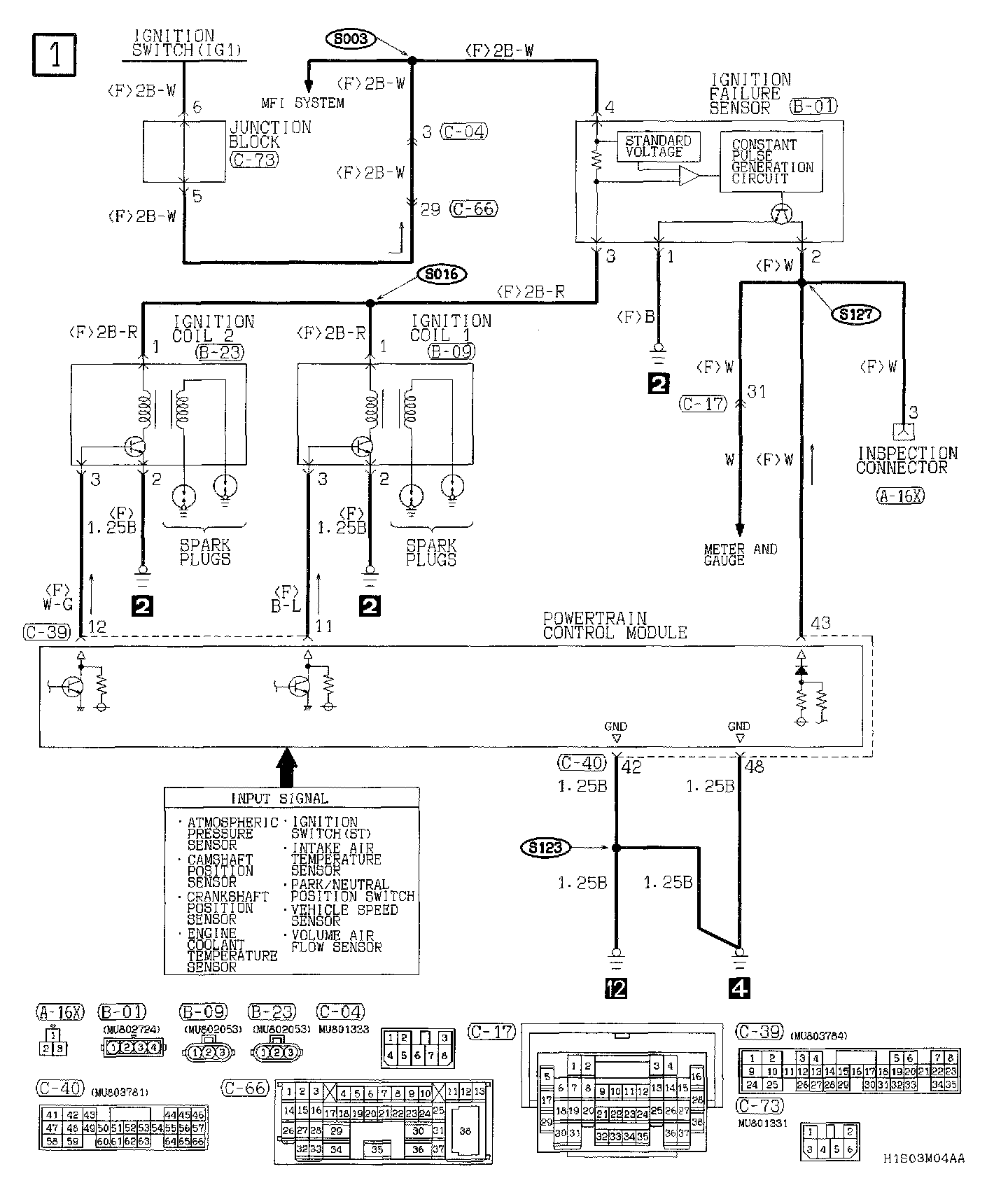

Ignition System <2.4L Engine>:
