Anti-Lock Braking System (ABS)
Anti-Lock Braking System (ABS)

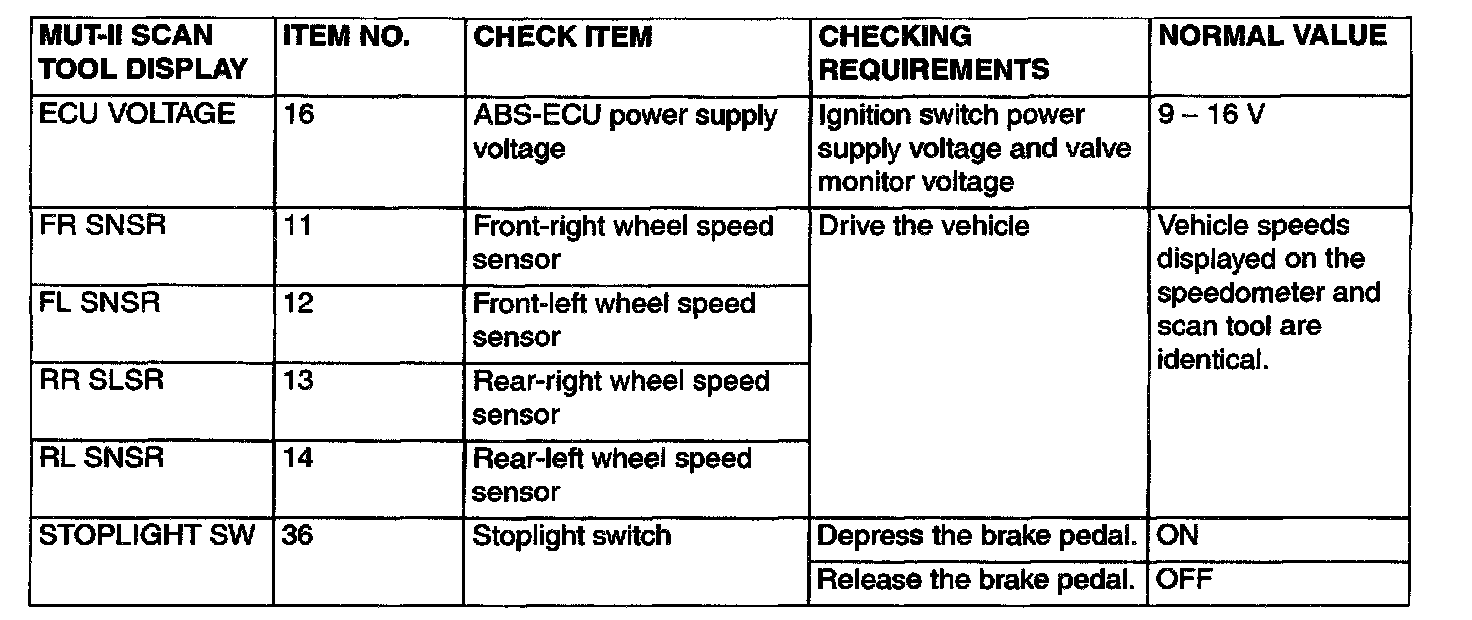

DATA LIST REFERENCE TABLE
The following items can be read by the scan tool from the ABS-ECU input data.
