Dedicated Fuse (Engine Compartment)
Dedicated Fuse (Engine Compartment)

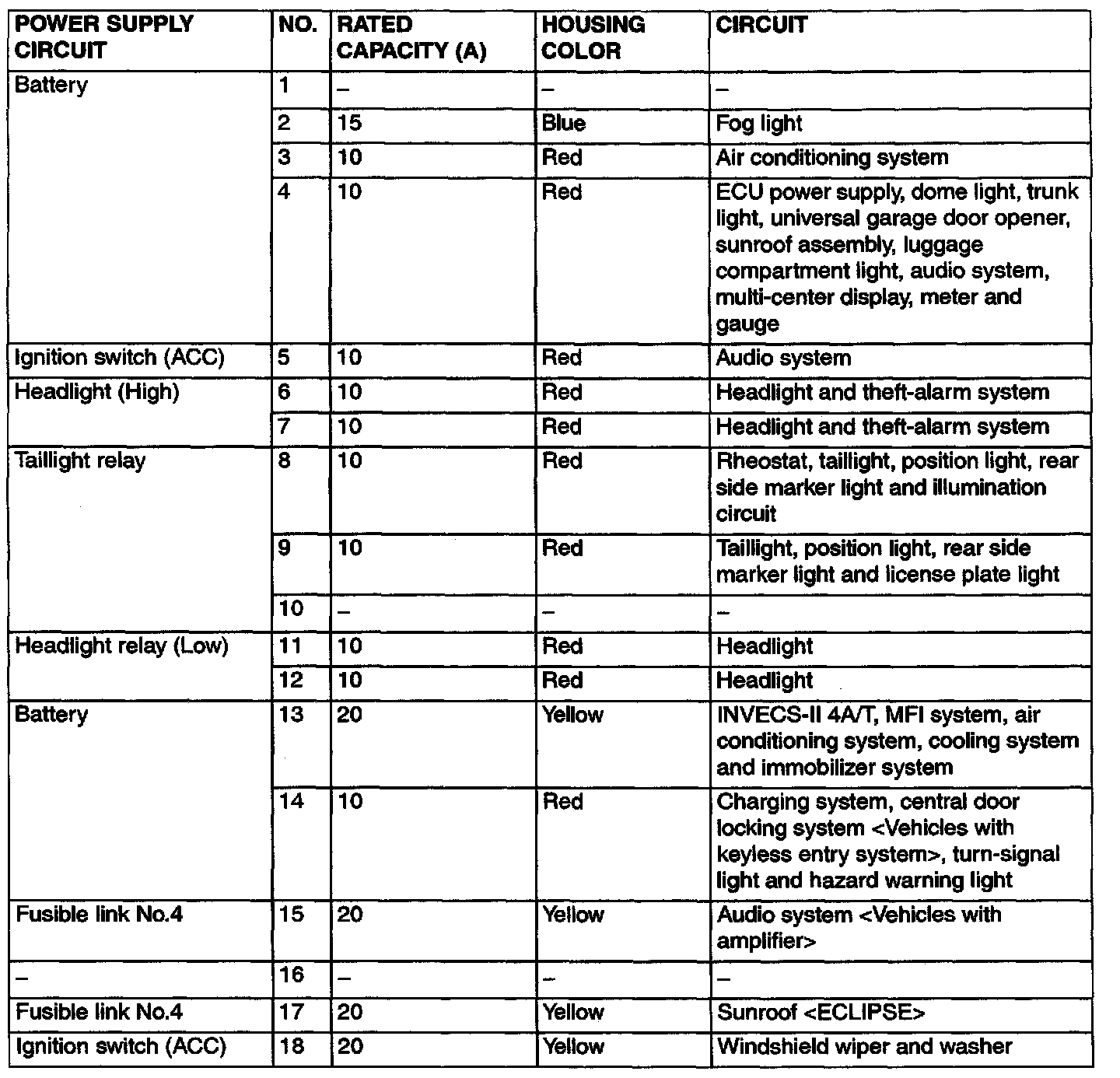

Dedicated Fuse Location Index:

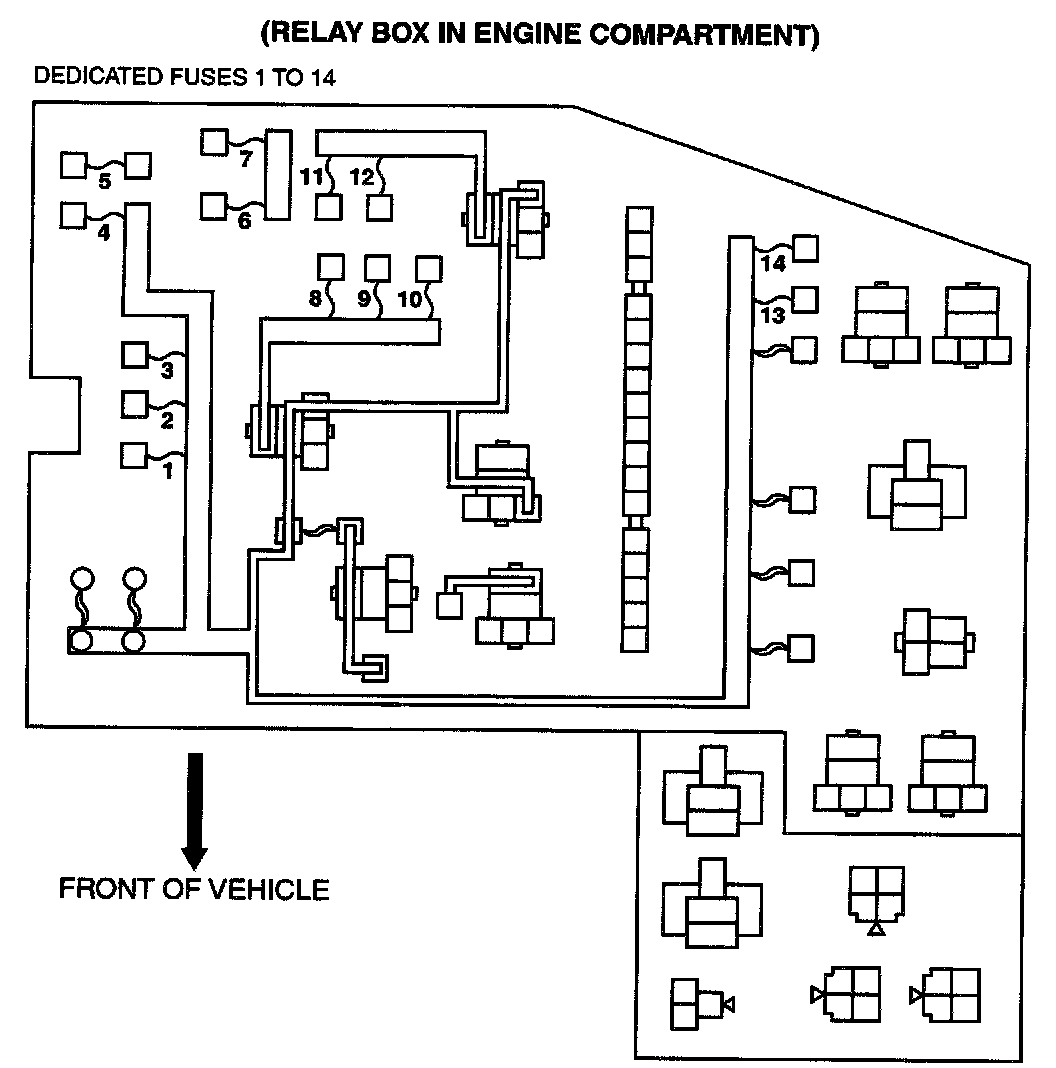

Dedicated Fuses 1 - 14 (Relay Box In Engine Compartment):

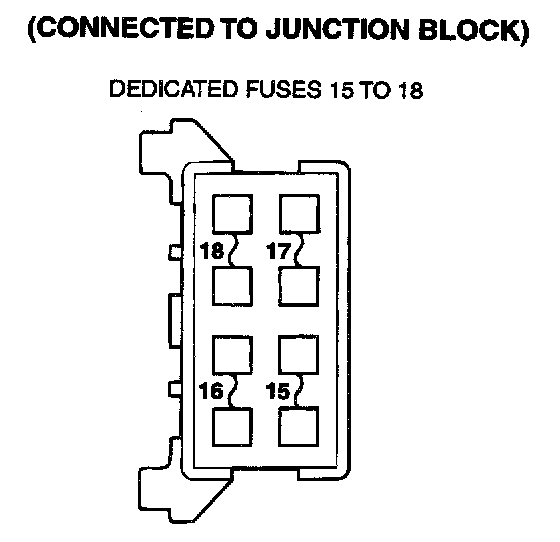

Dedicated Fuses 15 - 18 (Connected To Junction Block):
