Mitsubishi
>>
2001
>>
Eclipse Spyder GS L4-2350cc 2.4L SOHC MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antitheft and Alarm Systems
>>
Immobilizer System
>>
A/T
A/T

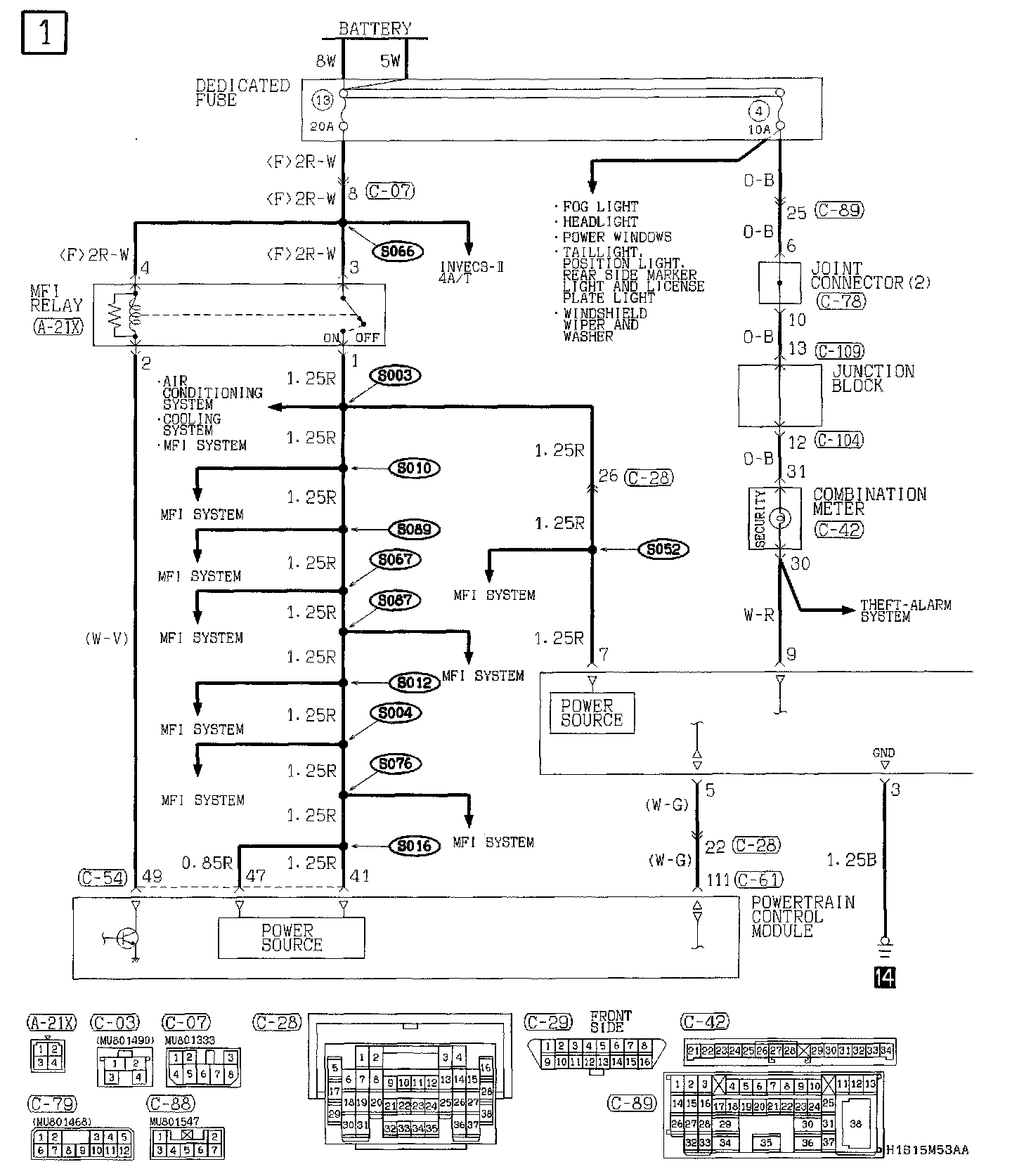

Immobilizer System <2.4L Engine-A/T> Part 1:

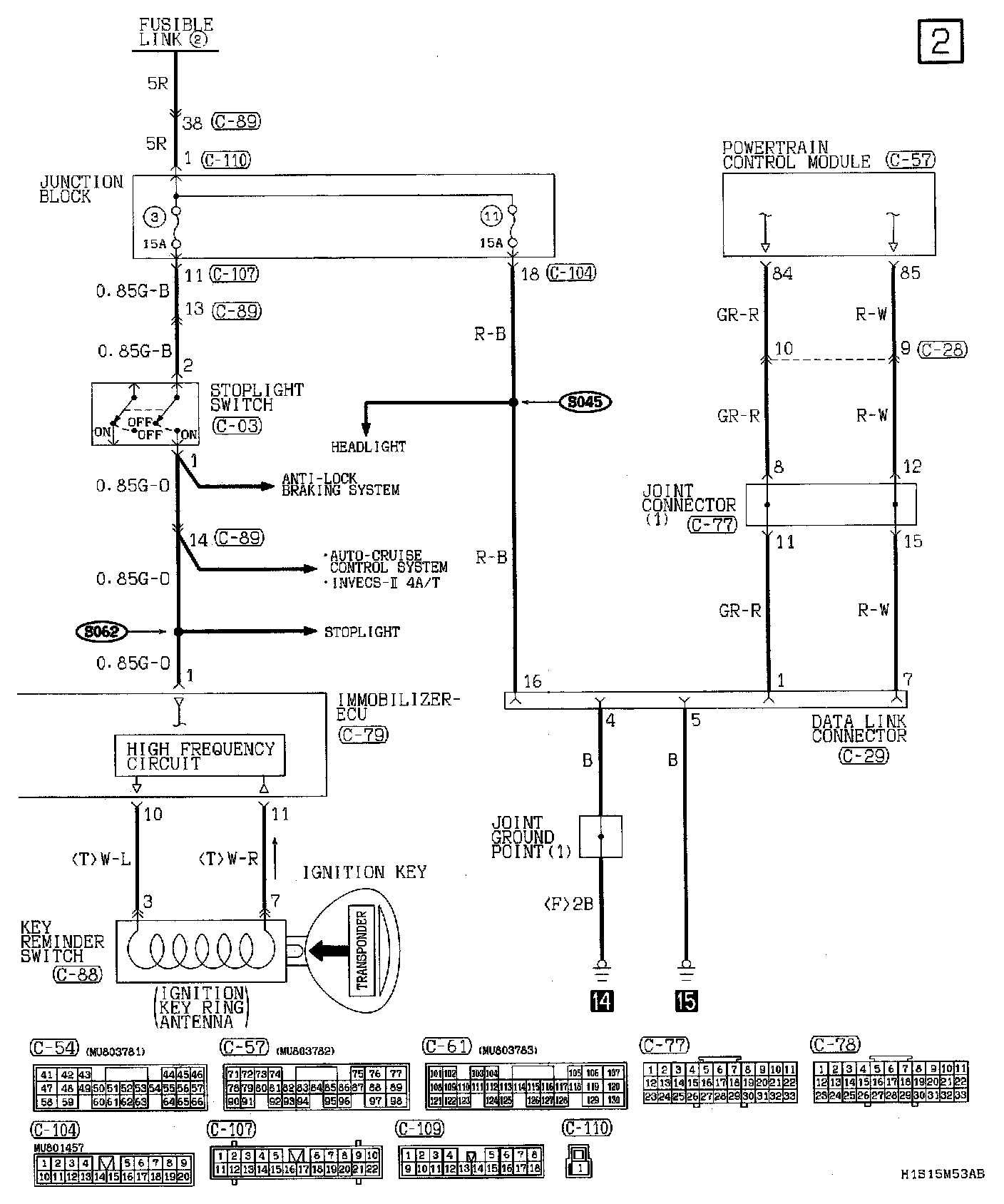

Immobilizer System <2.4L Engine-A/T> Part 2:
