Clutch





CLUTCH PEDAL

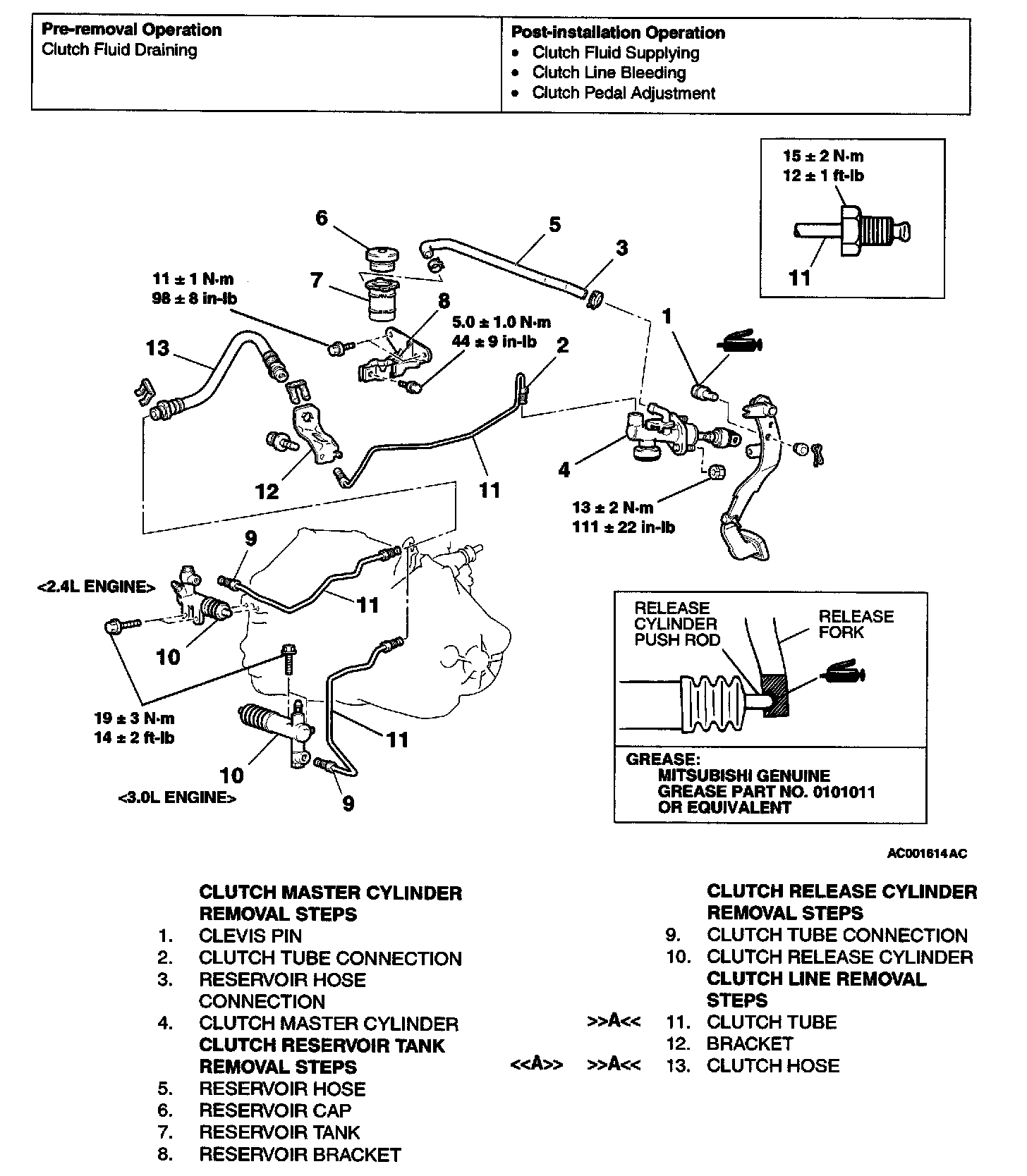

CLUTCH CONTROL





CLUTCH MASTER CYLINDER

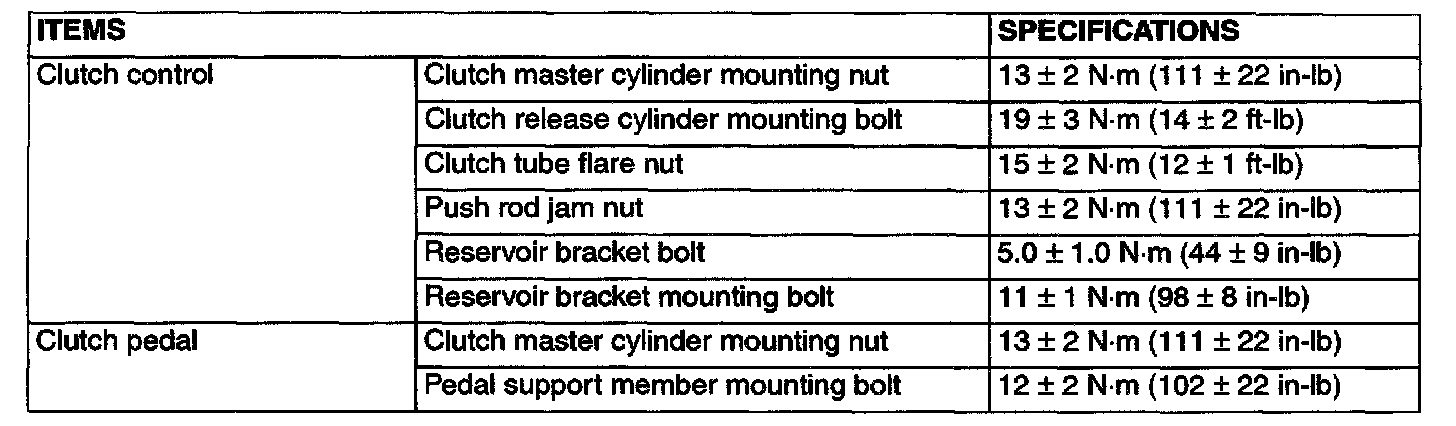

FASTENER TIGHTENING SPECIFICATIONS





GENERAL SPECIFICATIONS





SERVICE SPECIFICATIONS
