Eclipse RS L4-2350cc 2.4L SOHC MFI
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Instrument Cluster / Carrier
Instrument Cluster / Carrier

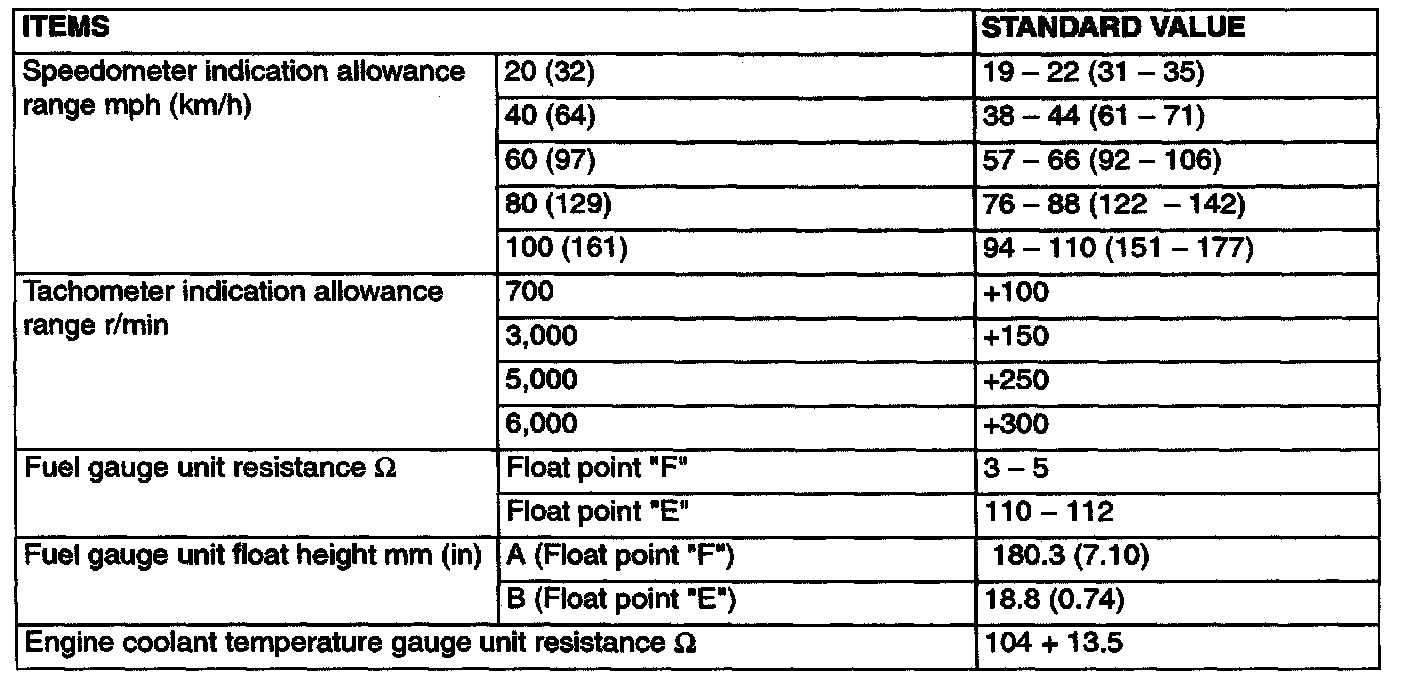

Combination Meter Part 1:

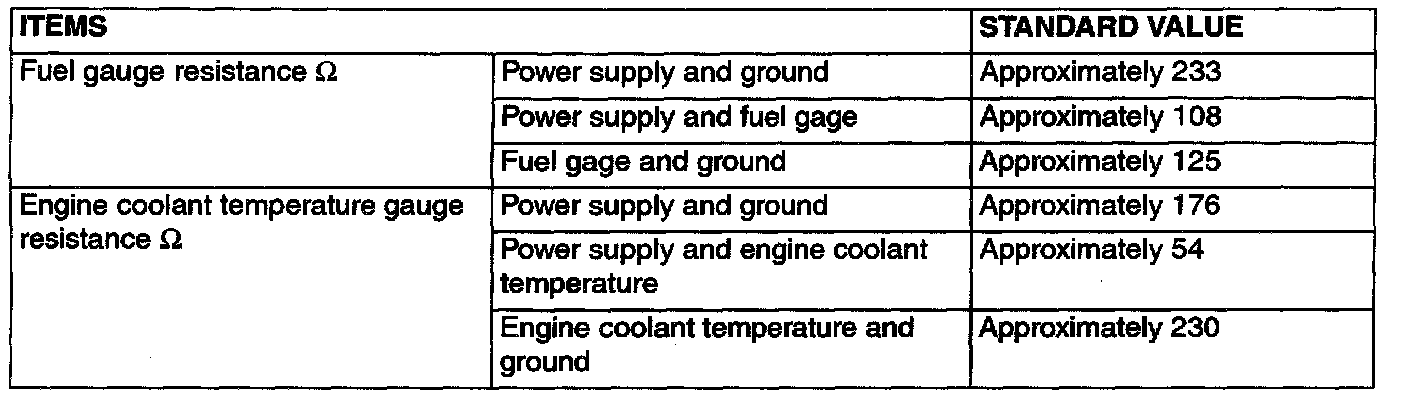

Part 2:

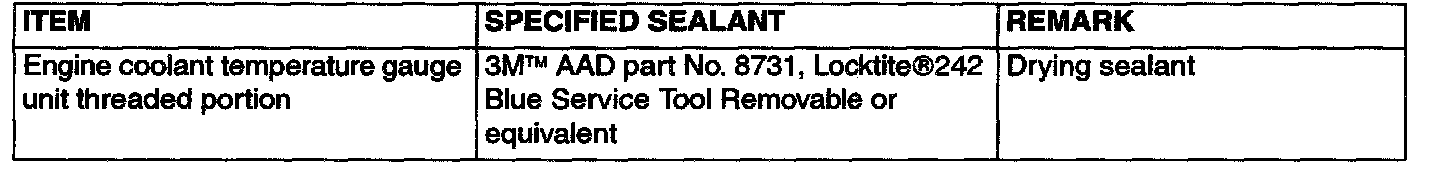

Sealant - Combination Meter:
