Component Tests and General Diagnostics

Check by the following procedure, and replace the coil if there is a malfunction.




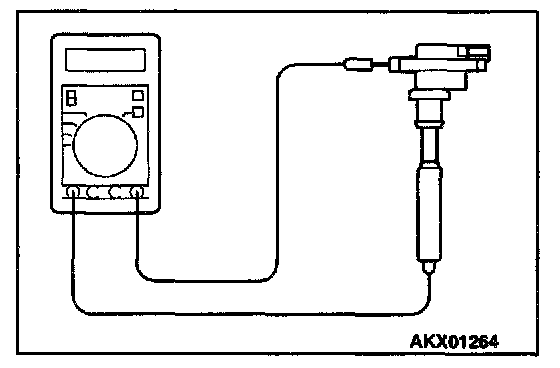

SECONDARY COIL RESISTANCE CHECK
Measure the resistance between the high-voltage terminals of the ignition coil.
Standard value: 8.5 - 11.5 kohm

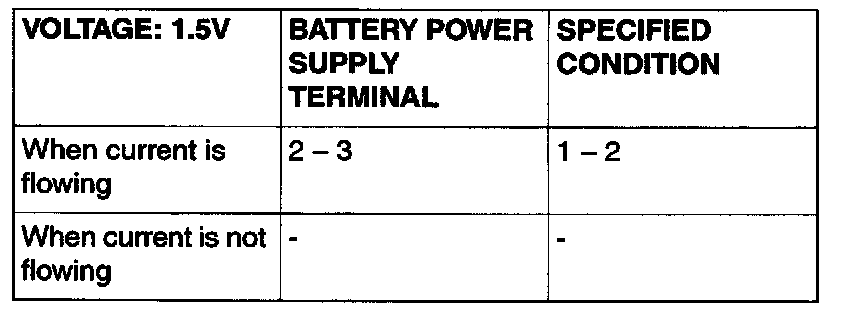

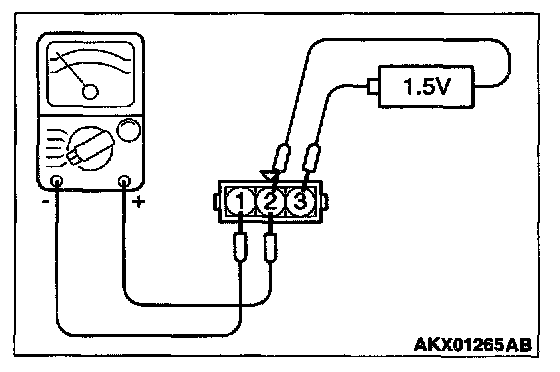

PRIMARY COIL AND IGNITION POWER TRANSISTOR CONTINUITY CHECK

NOTE: An analog-type ohmmeter should be used

NOTE: Connect the negative (-) probe of the ohmmeter to terminal 1.






CAUTION: This test must be performed quickly (in less than 10 seconds) to prevent coil from burning and ignition power transistor from breaking.
