Intake Air Plenum: Service and Repair

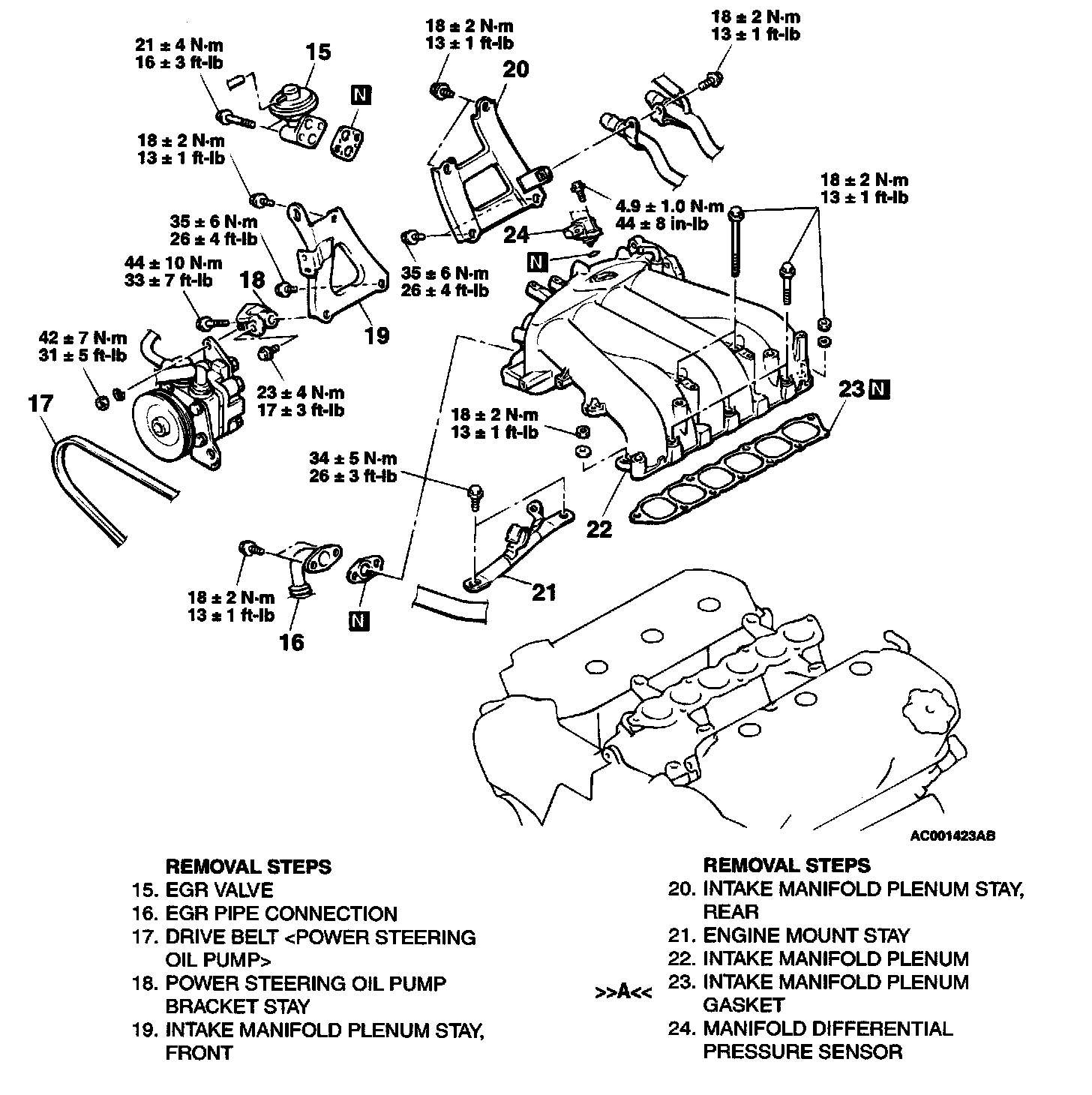

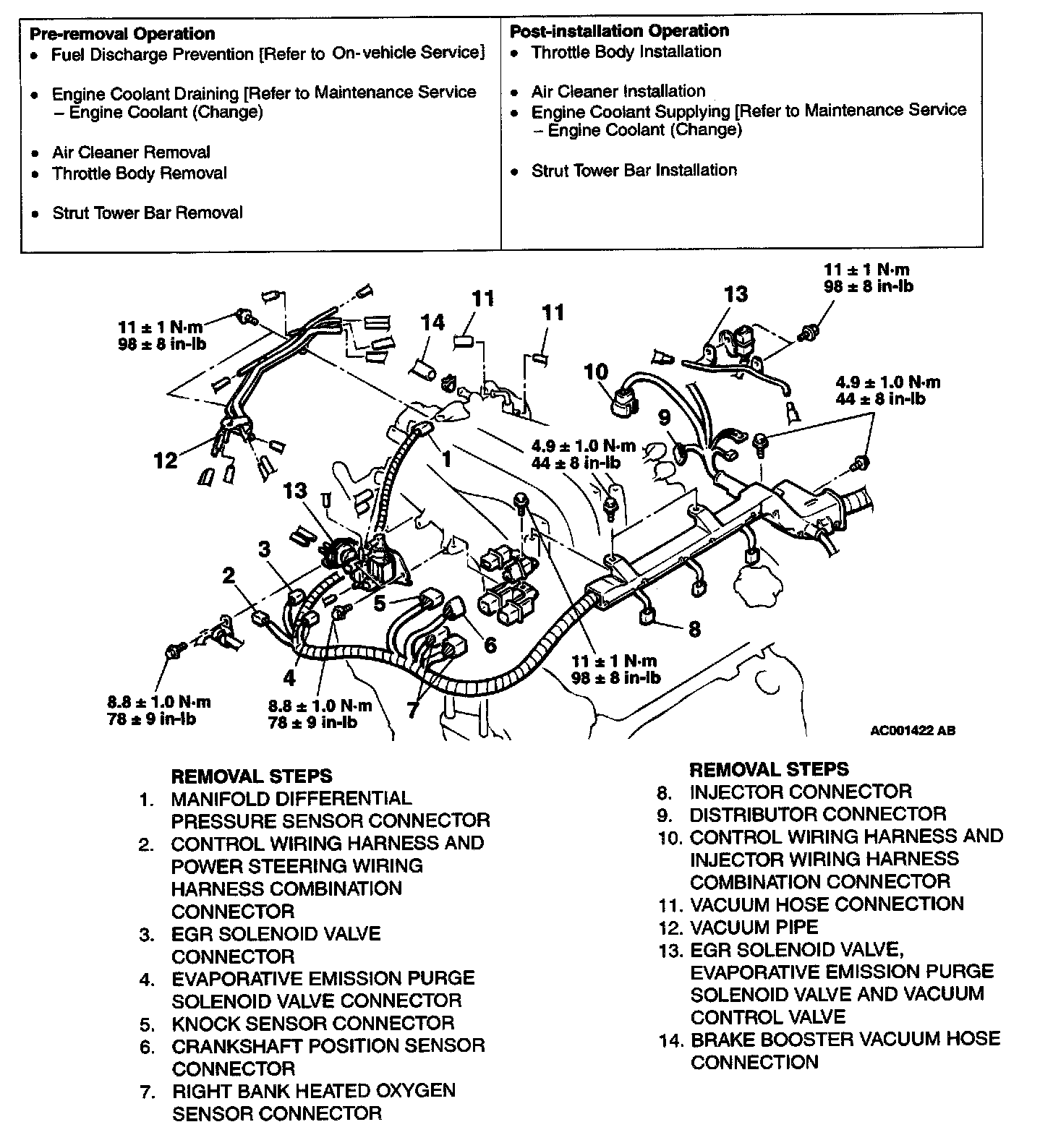

Removal And Installation Part 1:

Part 2:

INSTALLATION SERVICE POINT

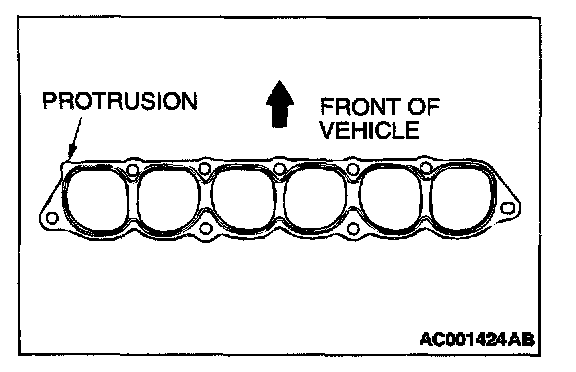

>>A<< INTAKE MANIFOLD PLENUM GASKET INSTALLATION
Install the gasket with the protrusion in the position illustrated.
