Catalytic Converter: Service and Repair

For models with dual catalytic converters contact your local Mitsubishi dealer with the last 8 digits of the VIN for parts information.

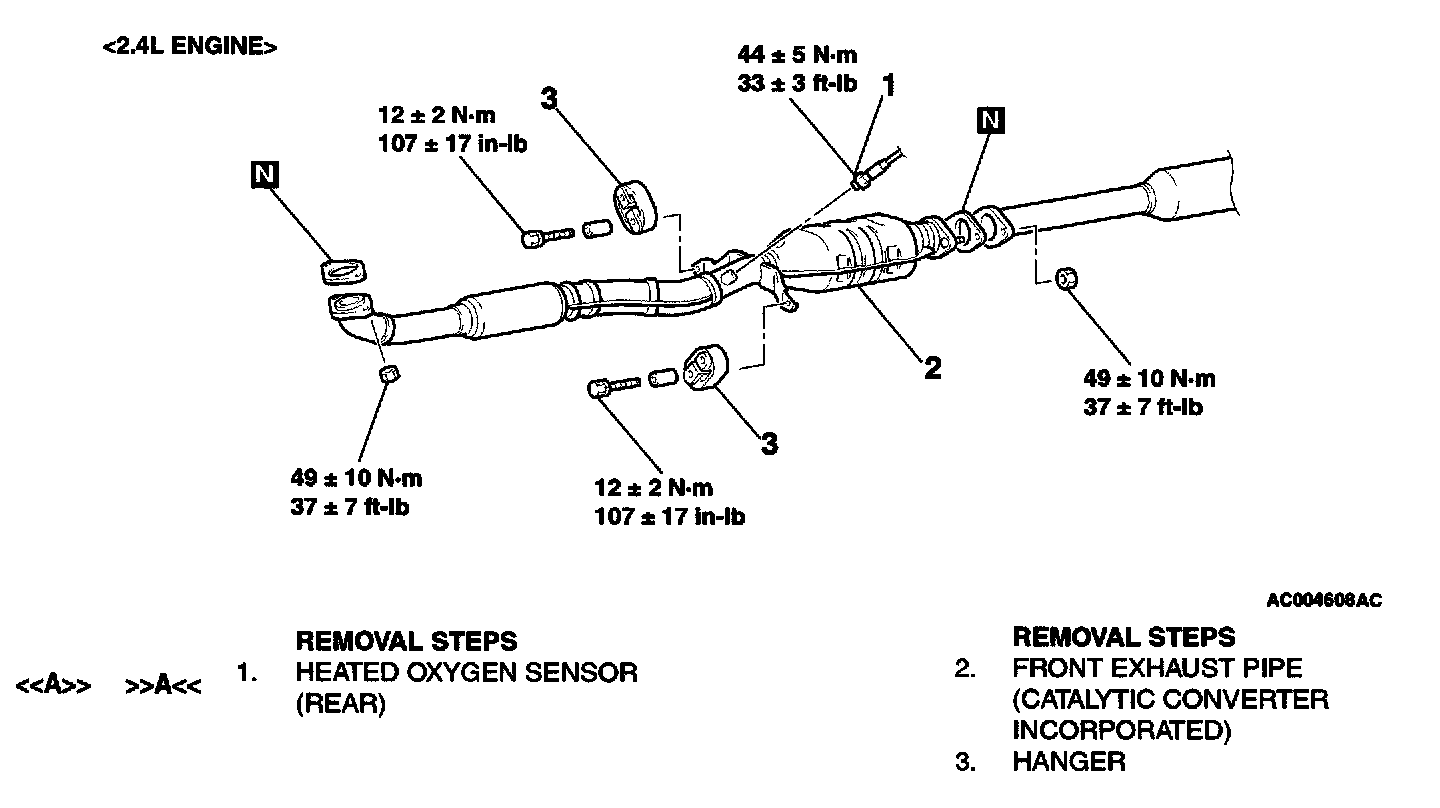

Removal And Installation:






REMOVAL SERVICE POINT




<> HEATED OXYGEN SENSOR (REAR)/LEFT BANK HEATED OXYGEN SENSOR (REAR)/RIGHT BANK HEATED OXYGEN SENSOR (REAR)/RIGHT BANK HEATED OXYGEN SENSOR (FRONT) REMOVAL

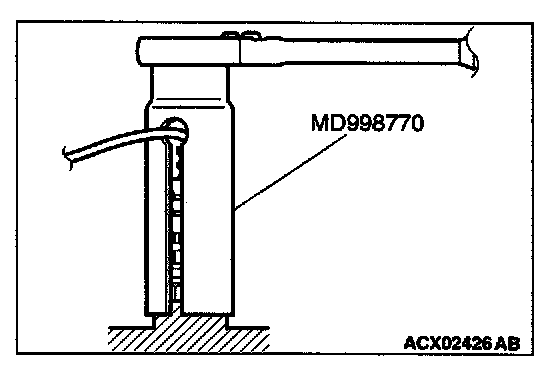

Use special tool MD998770 to remove the oxygen sensor.

INSTALLATION SERVICE POINT




>>A<< RIGHT BANK HEATED OXYGEN SENSOR (FRONT)/RIGHT BANK HEATED OXYGEN SENSOR (REAR)/LEFT BANK HEATED OXYGEN SENSOR (REAR)/HEATED OXYGEN SENSOR (REAR) INSTALLATION
Use special tool MD998770 to installation the oxygen sensor.
