Symptom Charts

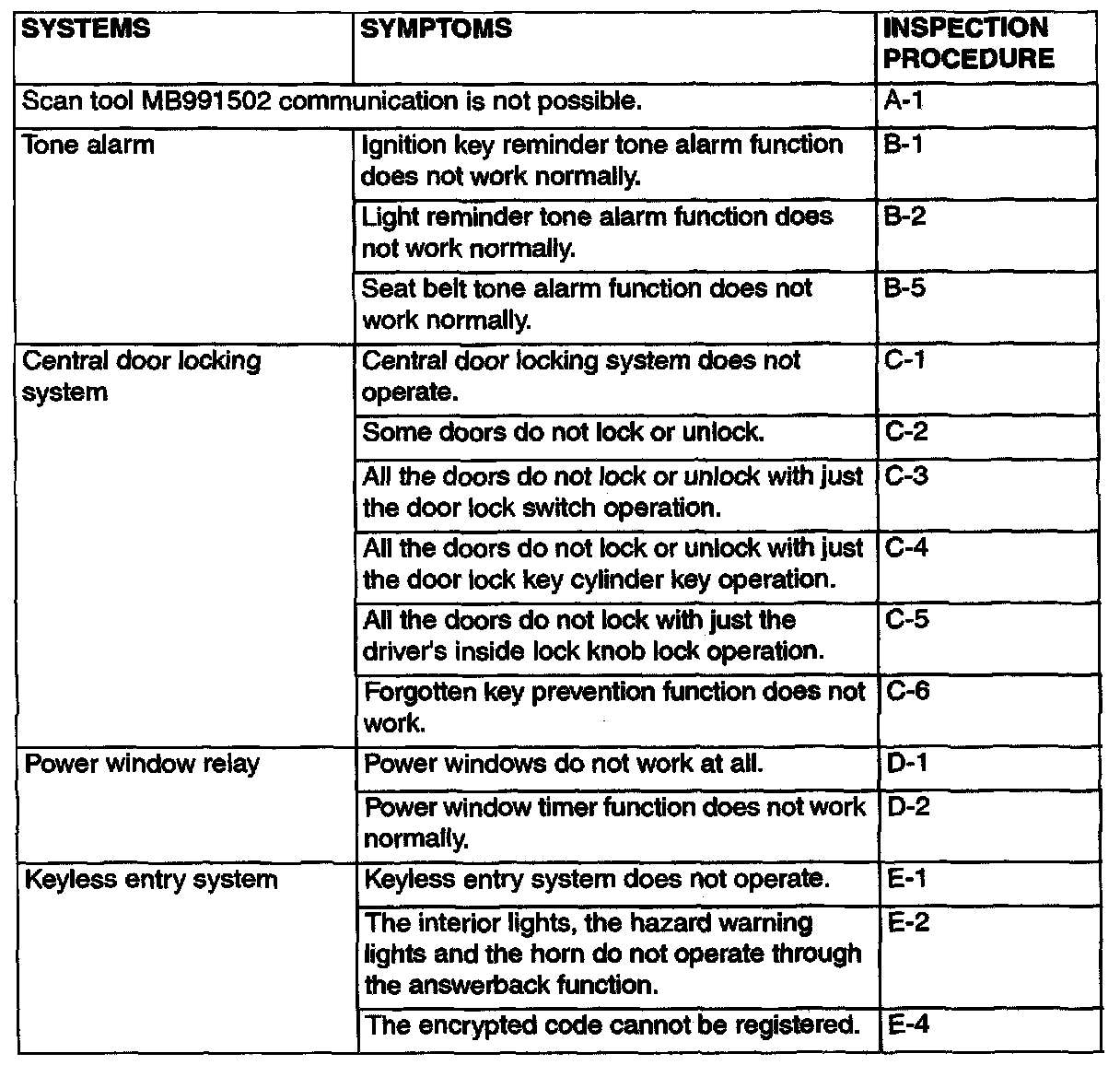

Symptom Chart Part 1:

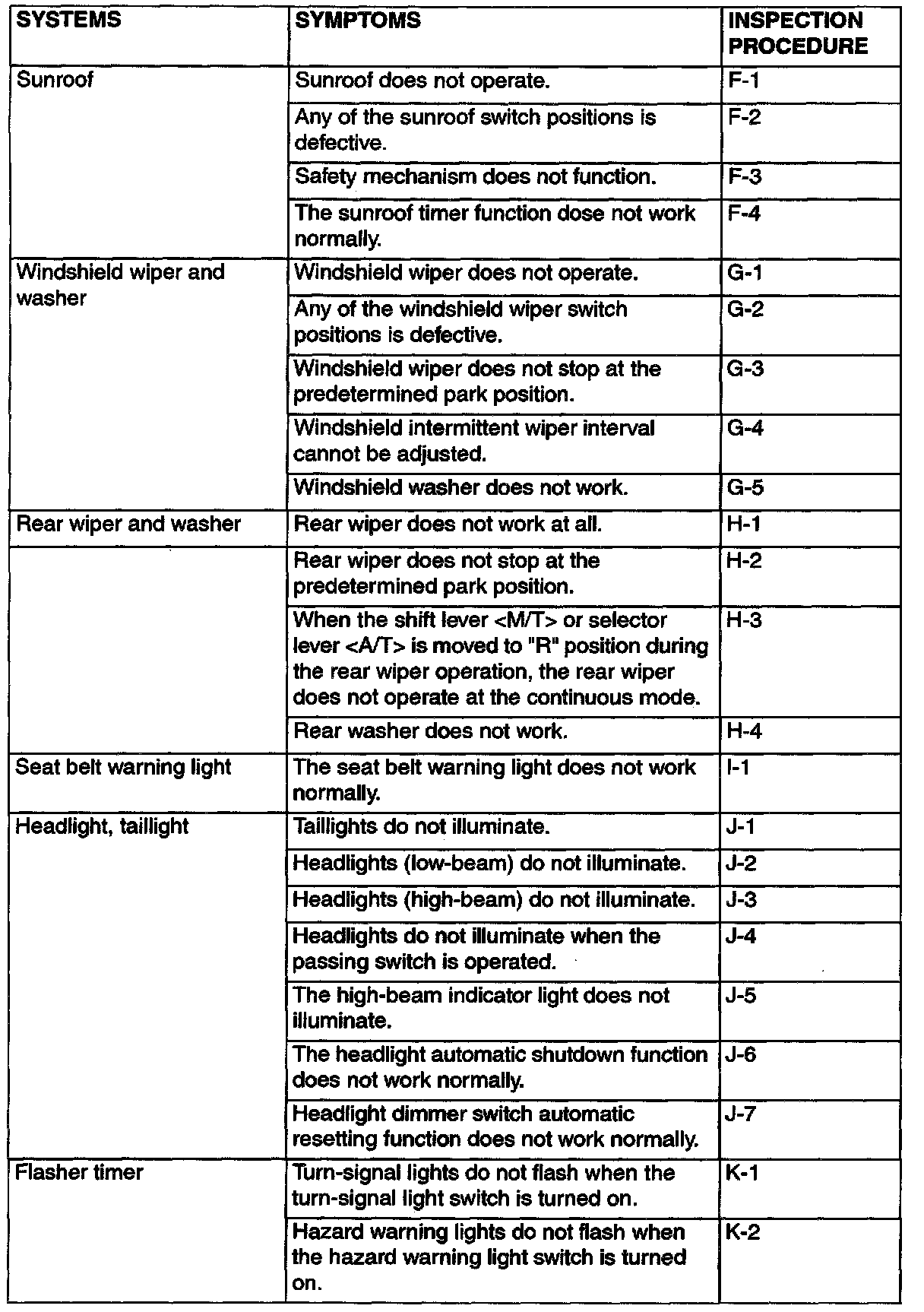

Part 2:

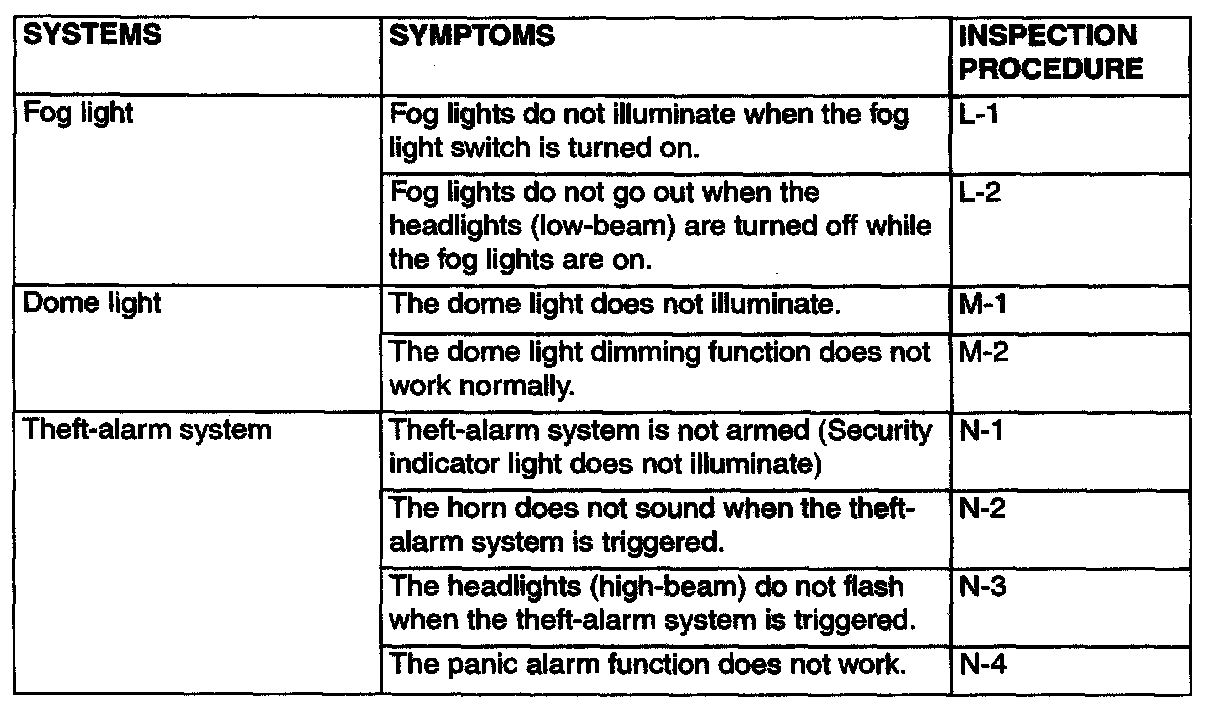

Part 3:

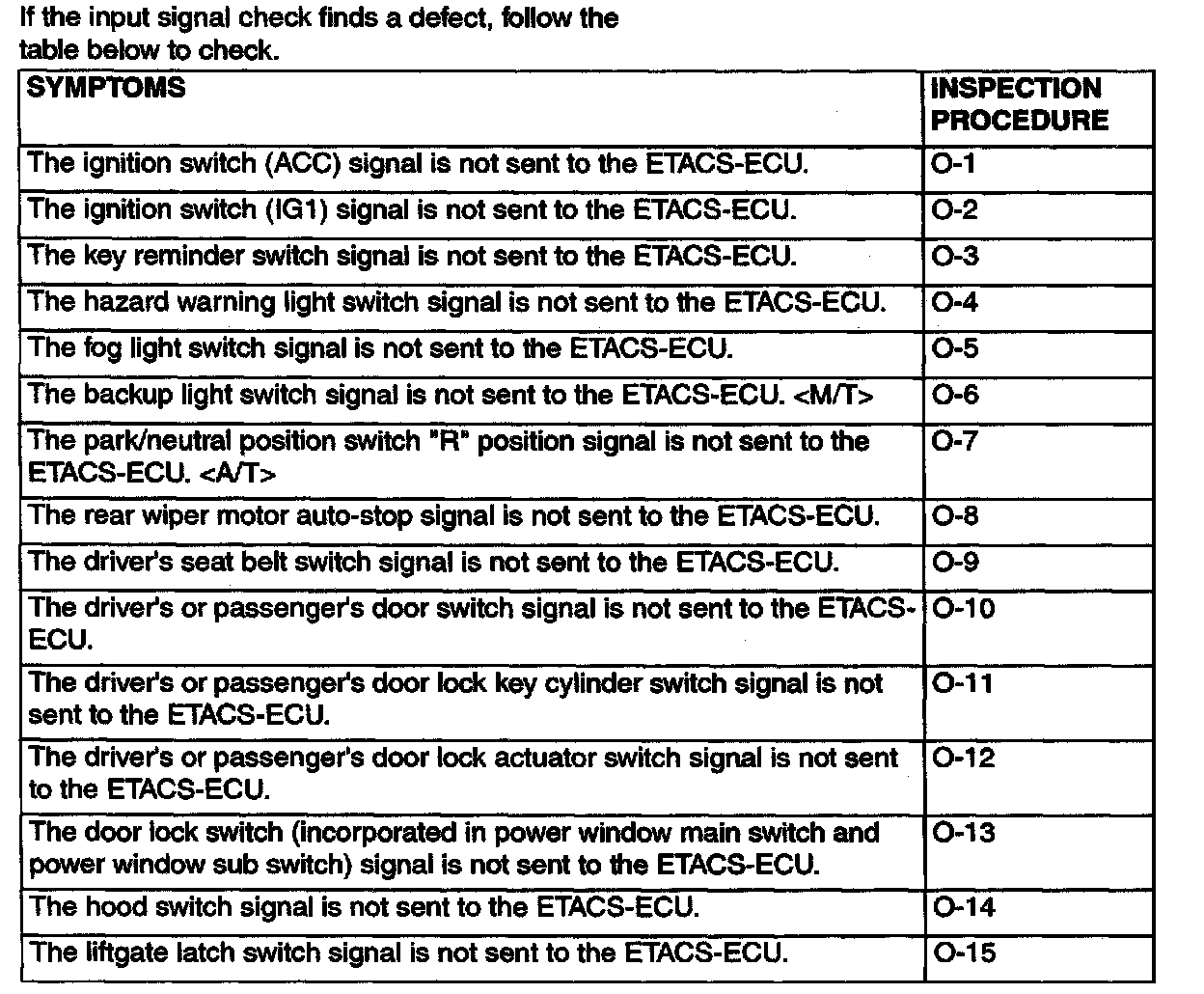

Defects Found During Input Signal Check - Part 1:

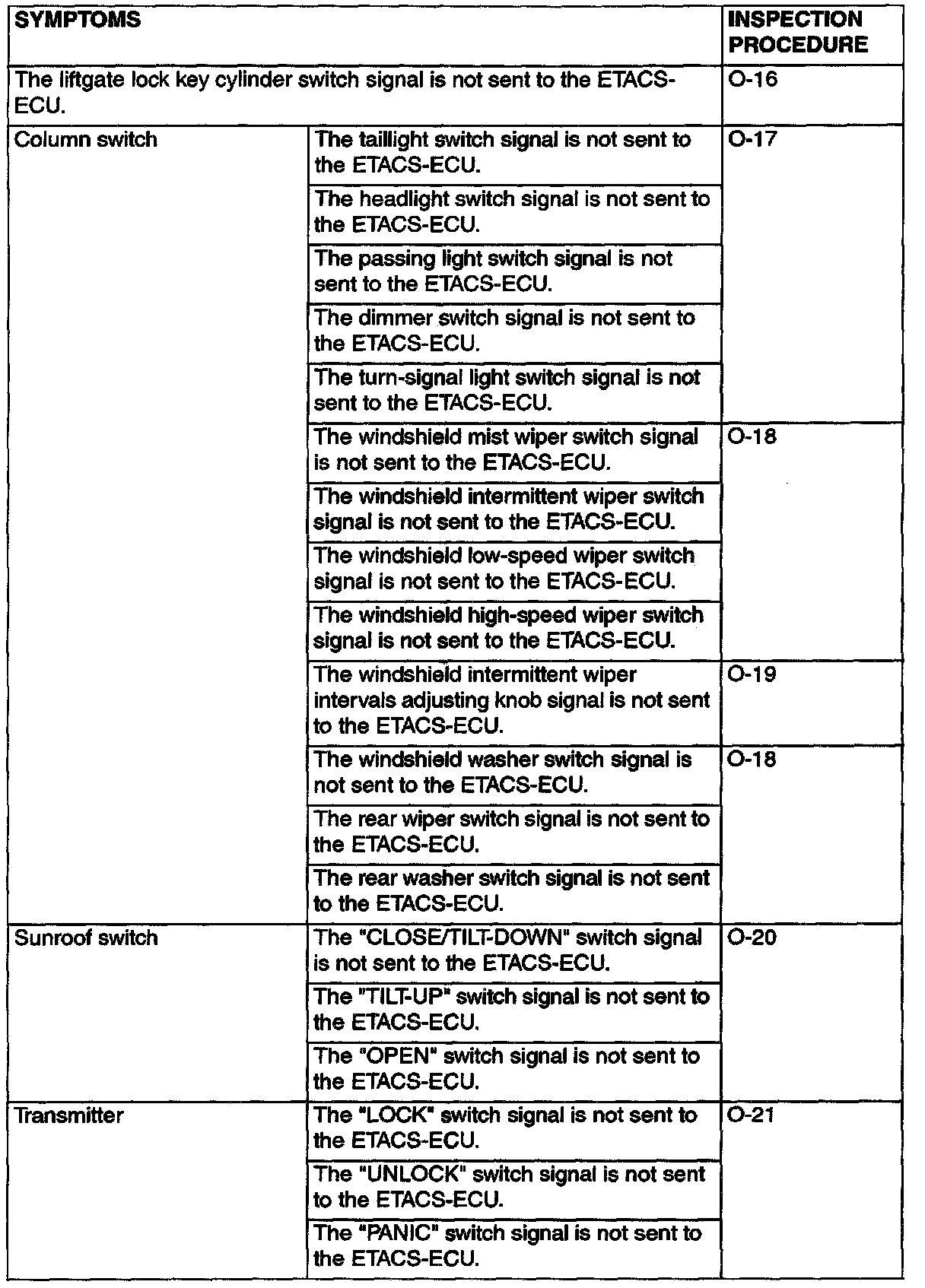

Defects Found During Input Signal Check - Part 2:
