Home
>>
Mitsubishi
>>
2001
>>
Eclipse RS L4-2350cc 2.4L SOHC MFI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Diagrams
>>
Diagram Information and Instructions
>>
Connector and Ground Indicators
Connector and Ground Indicators

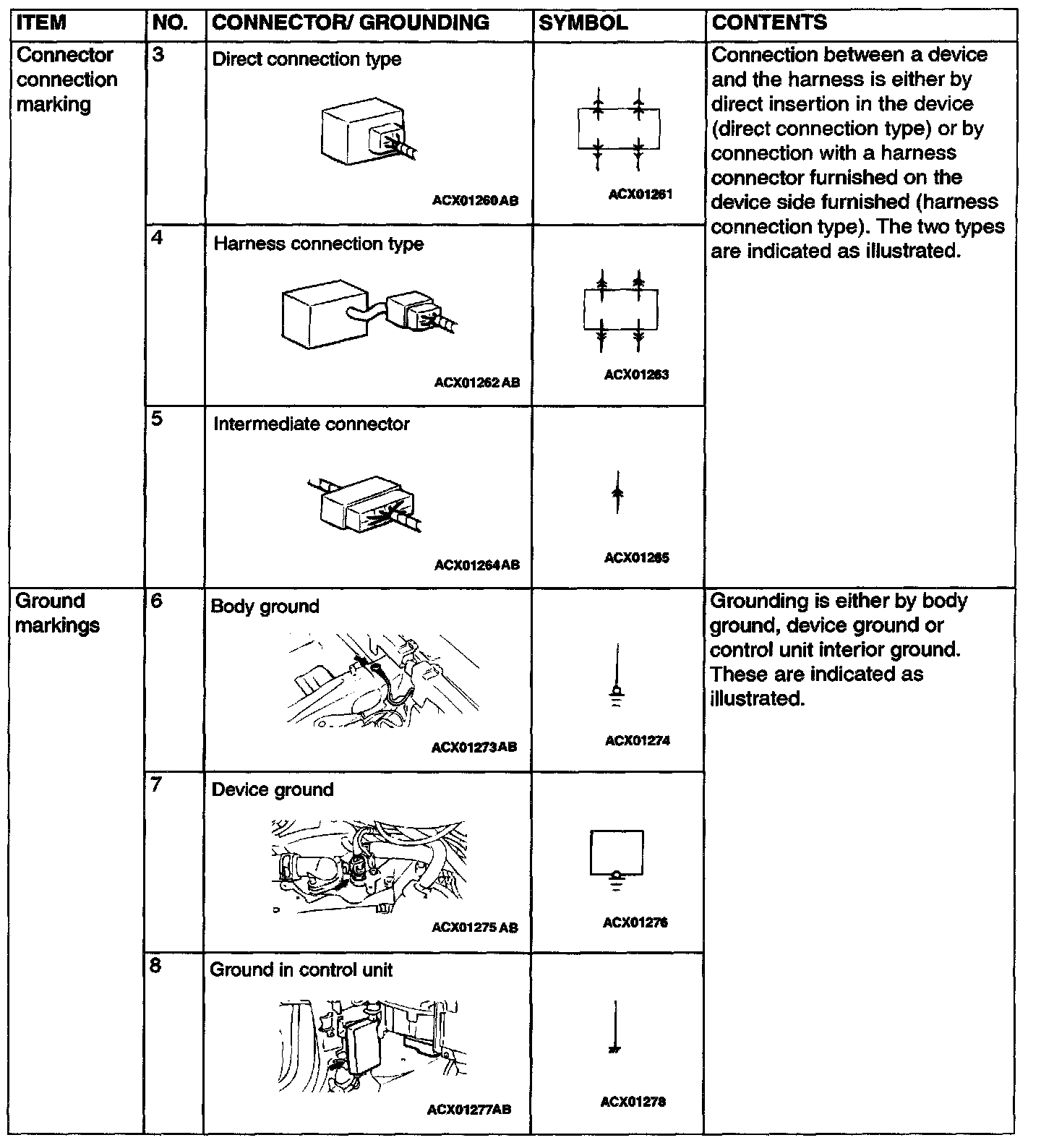

Connector/Grounding Indications:

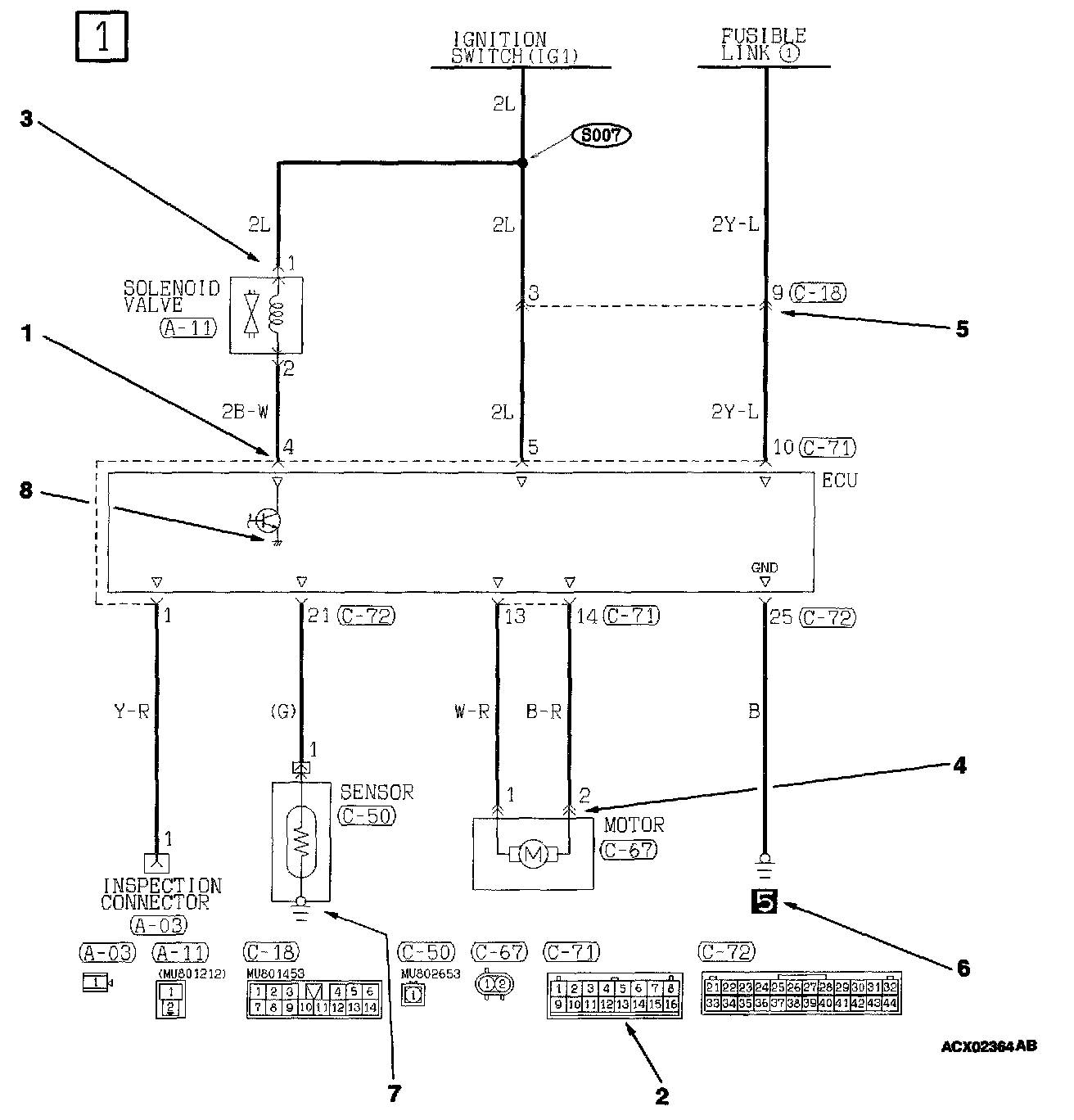

Connector/Grounding Indications Location Index Part 1:
Connector/Grounding Indications Location Index Part 2:
