B Connectors - Engine and Transaxle

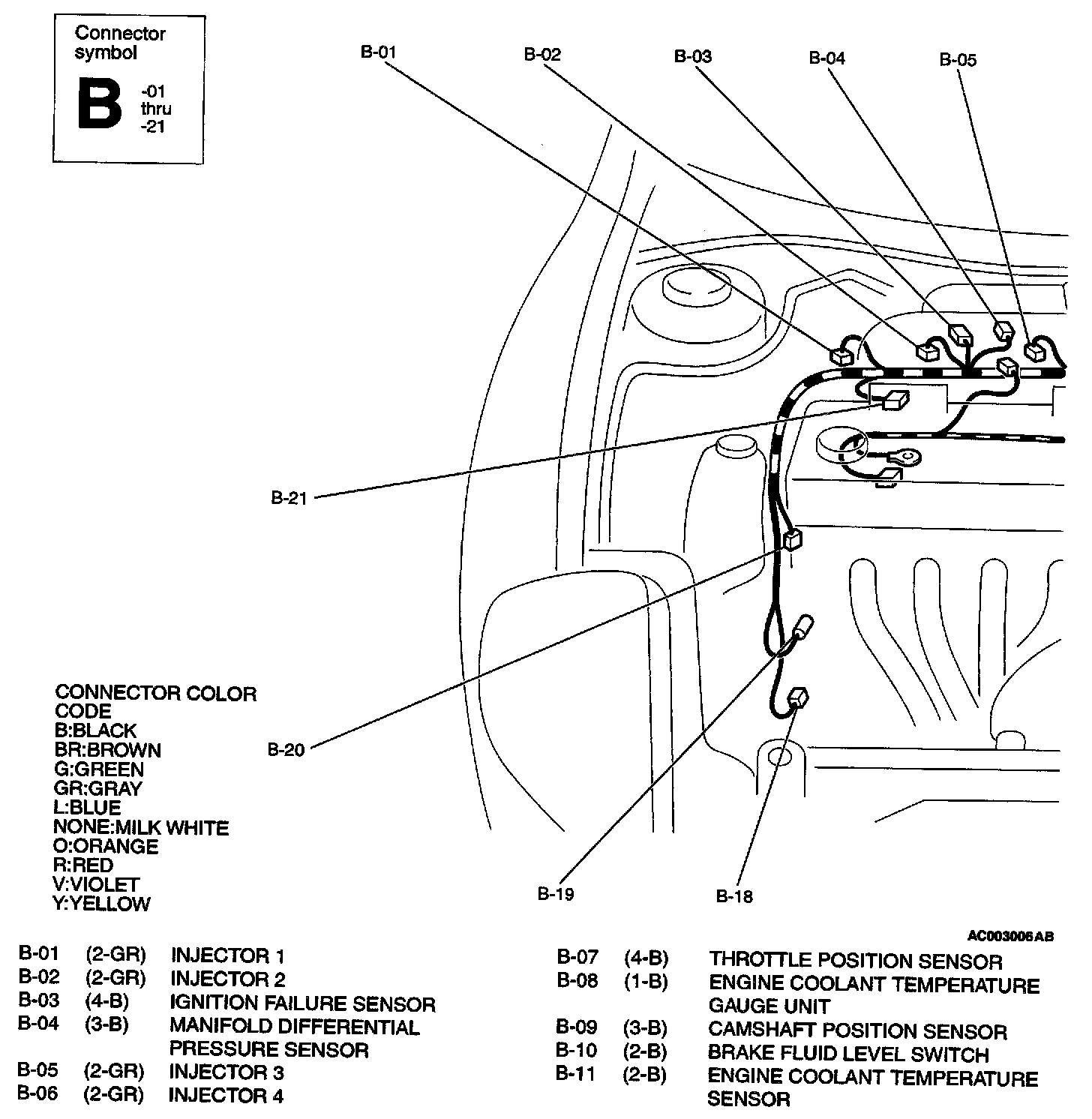

Engine And Transaxle <2.4L Engine> - B Connector (01 (2-GR) Thru 11 (2-B)):

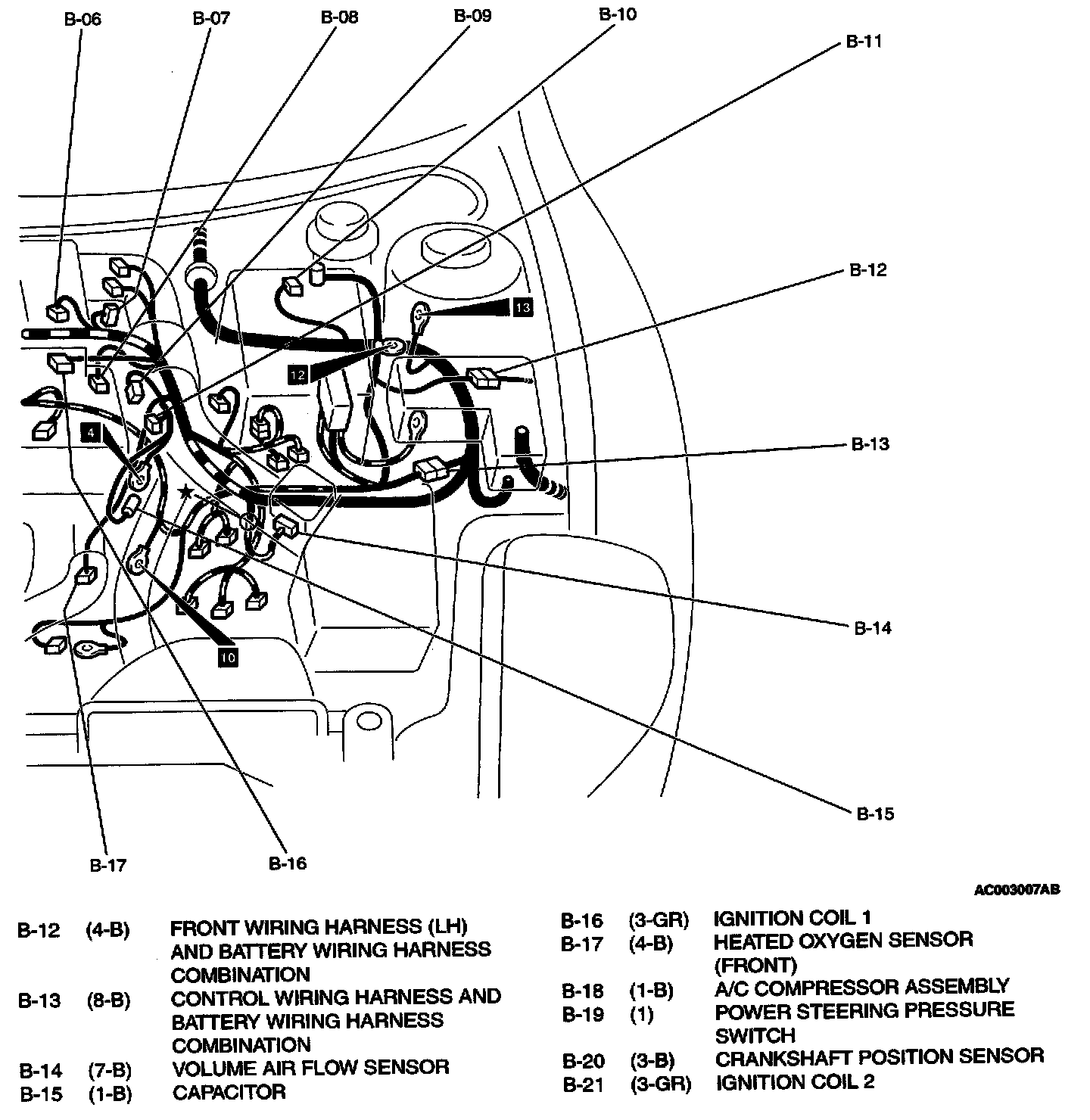

Engine And Transaxle <2.4L Engine> - B Connector (12 (4-B) Thru 21 (3-GR)):

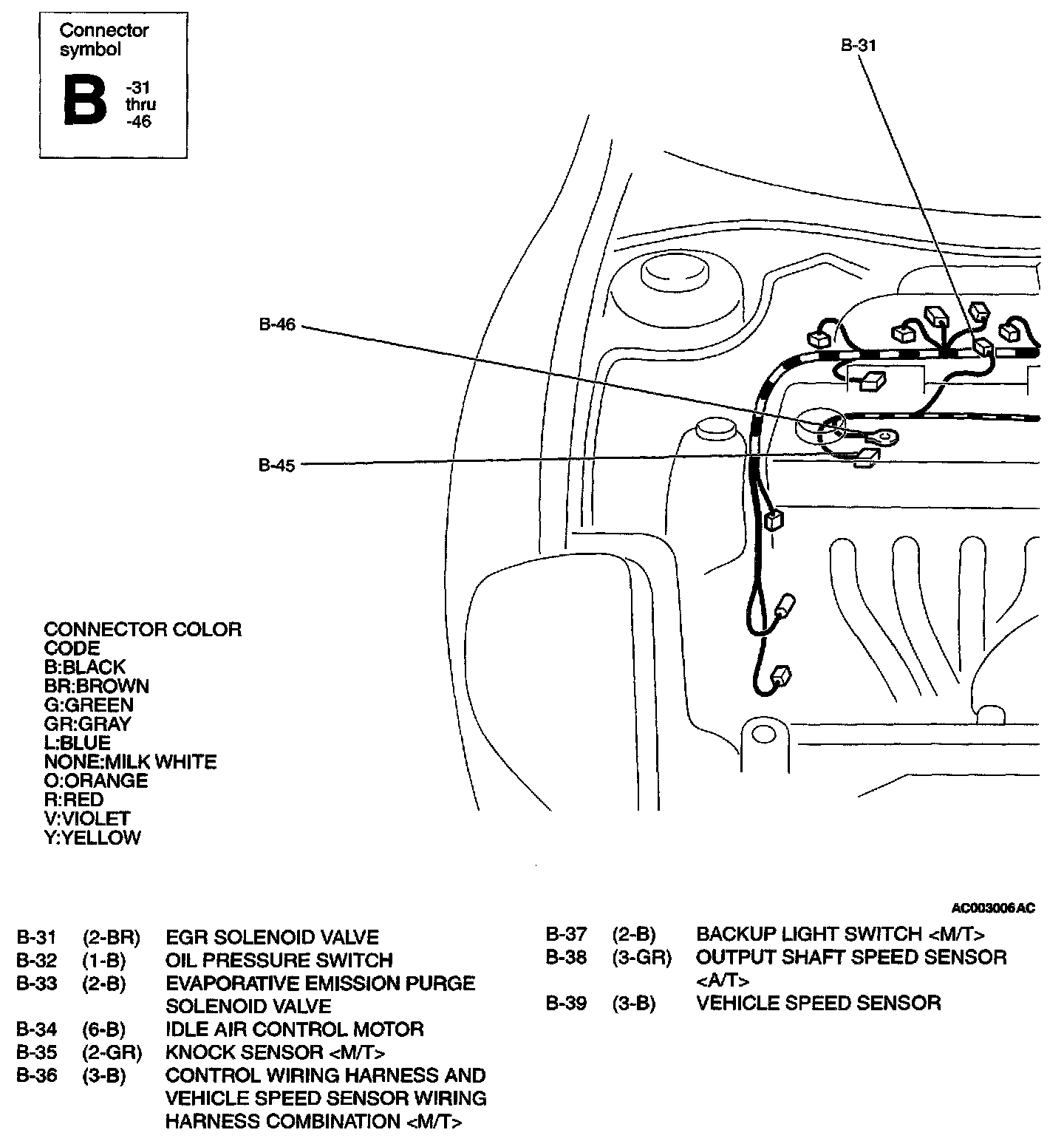

Engine And Transaxle <2.4L Engine> - B Connector (31 (2-BR) Thru 39 (3-B)):

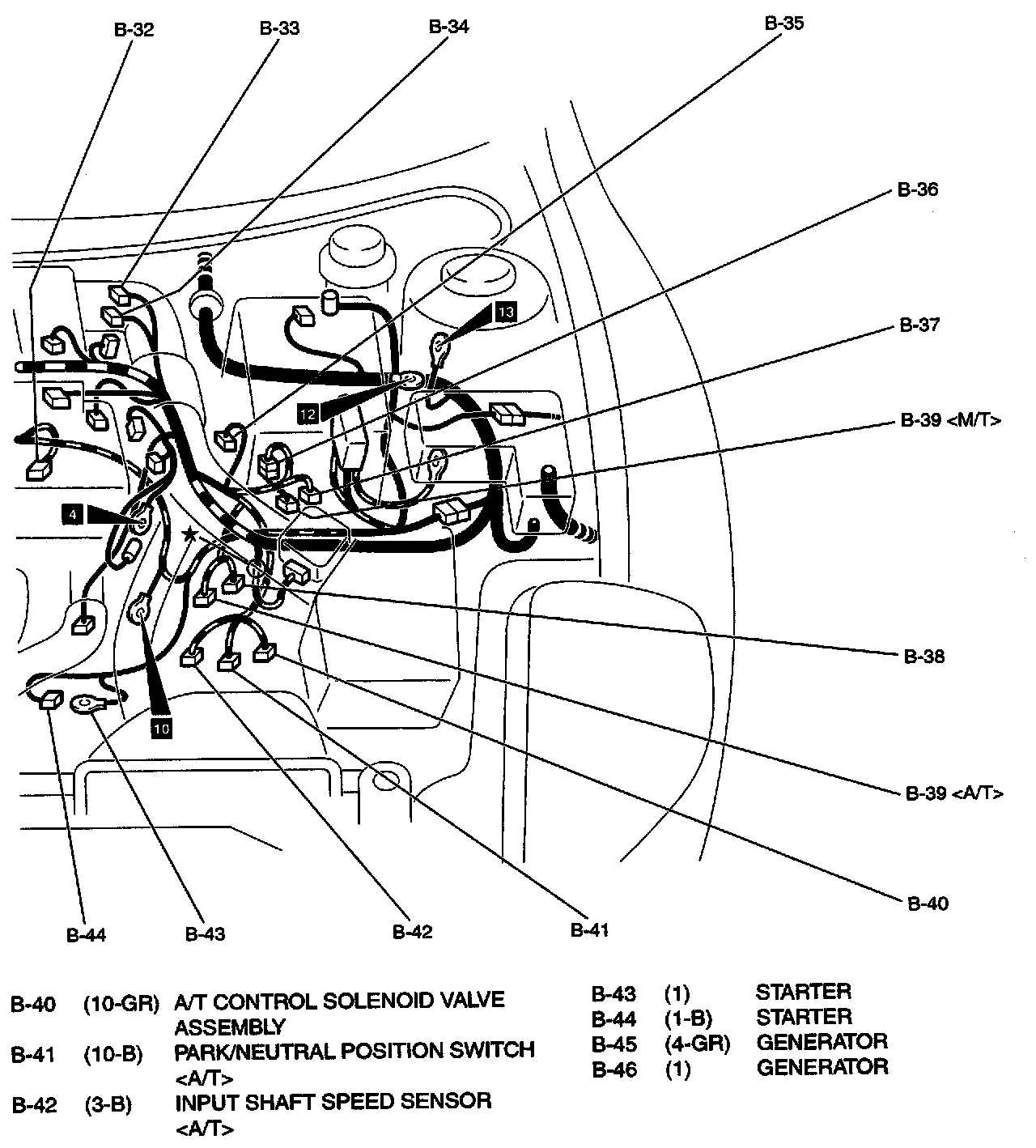

Engine And Transaxle <2.4L Engine> - B Connector (40 (10-GR) Thru 46 (1)):
