Electrical Diagrams

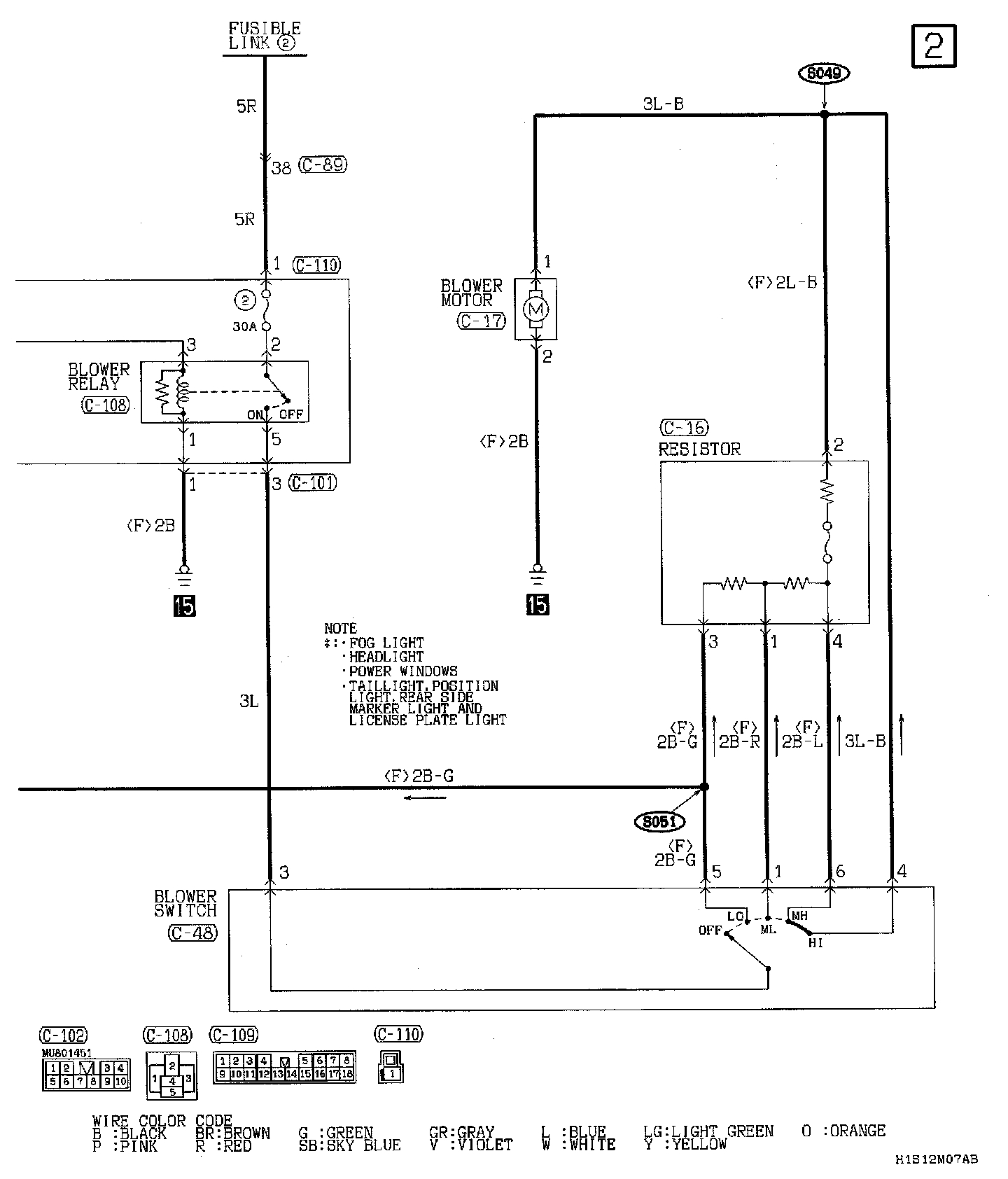

Heater Part 1:

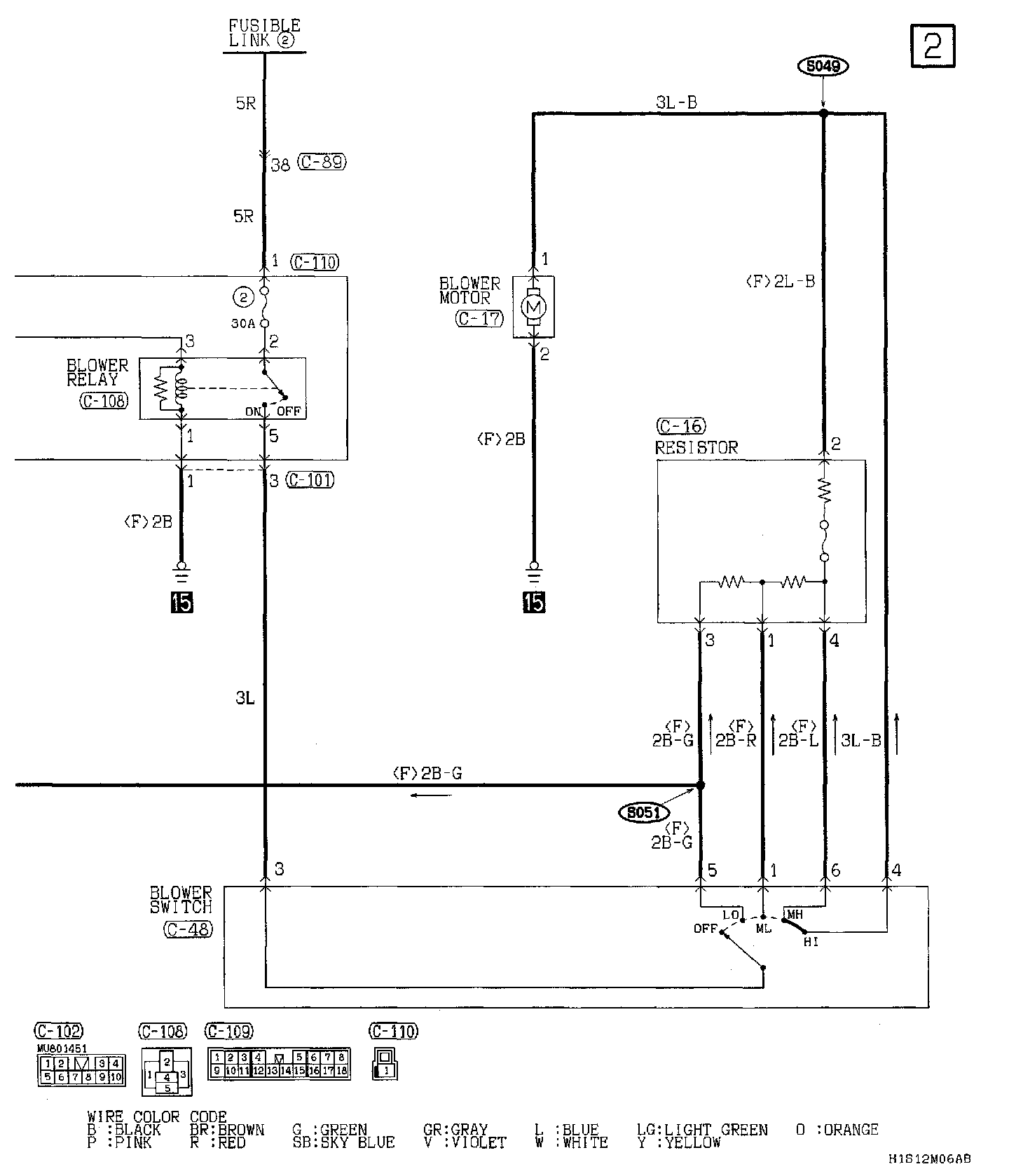

Heater Part 2:



Heater Part 3:

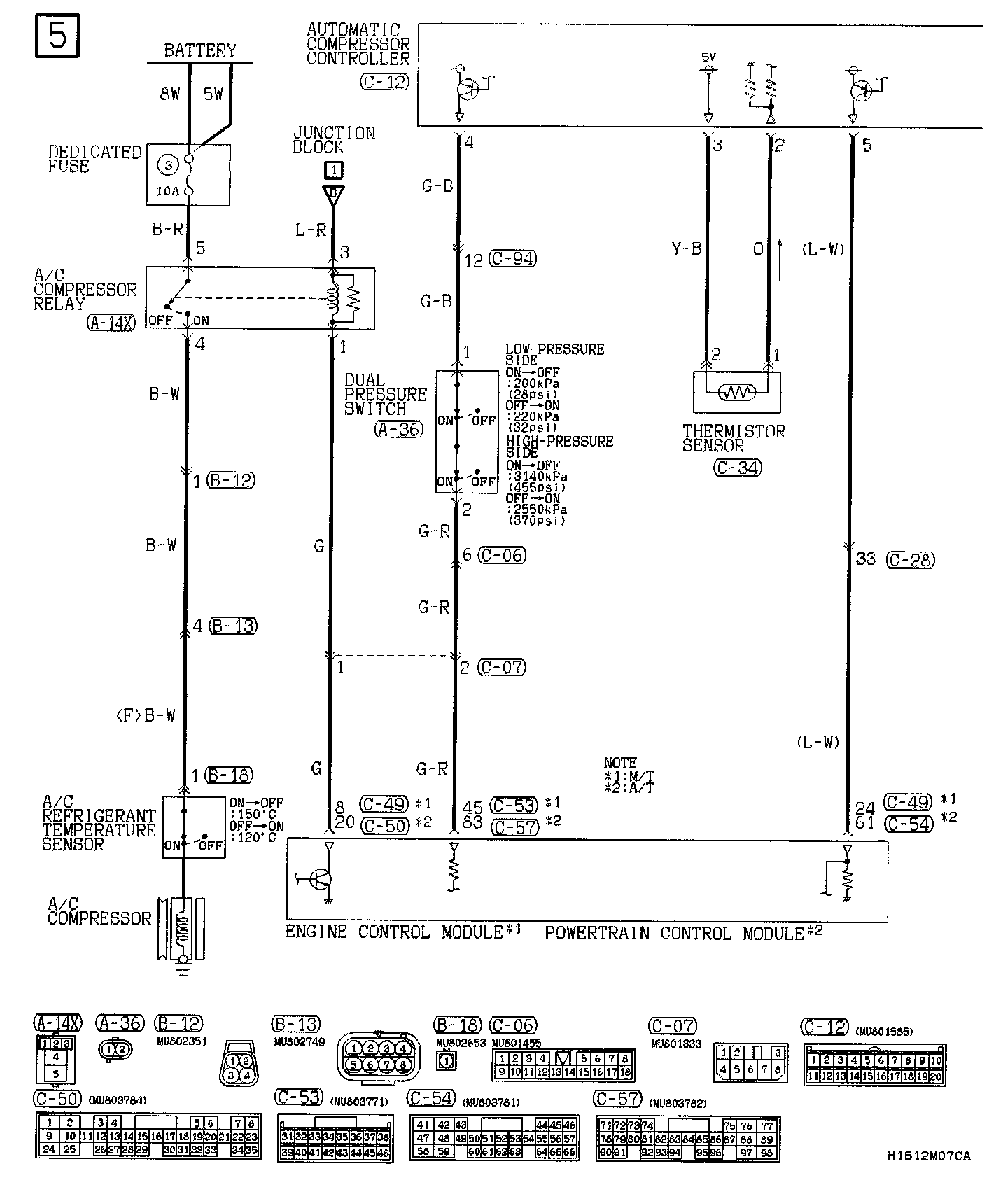

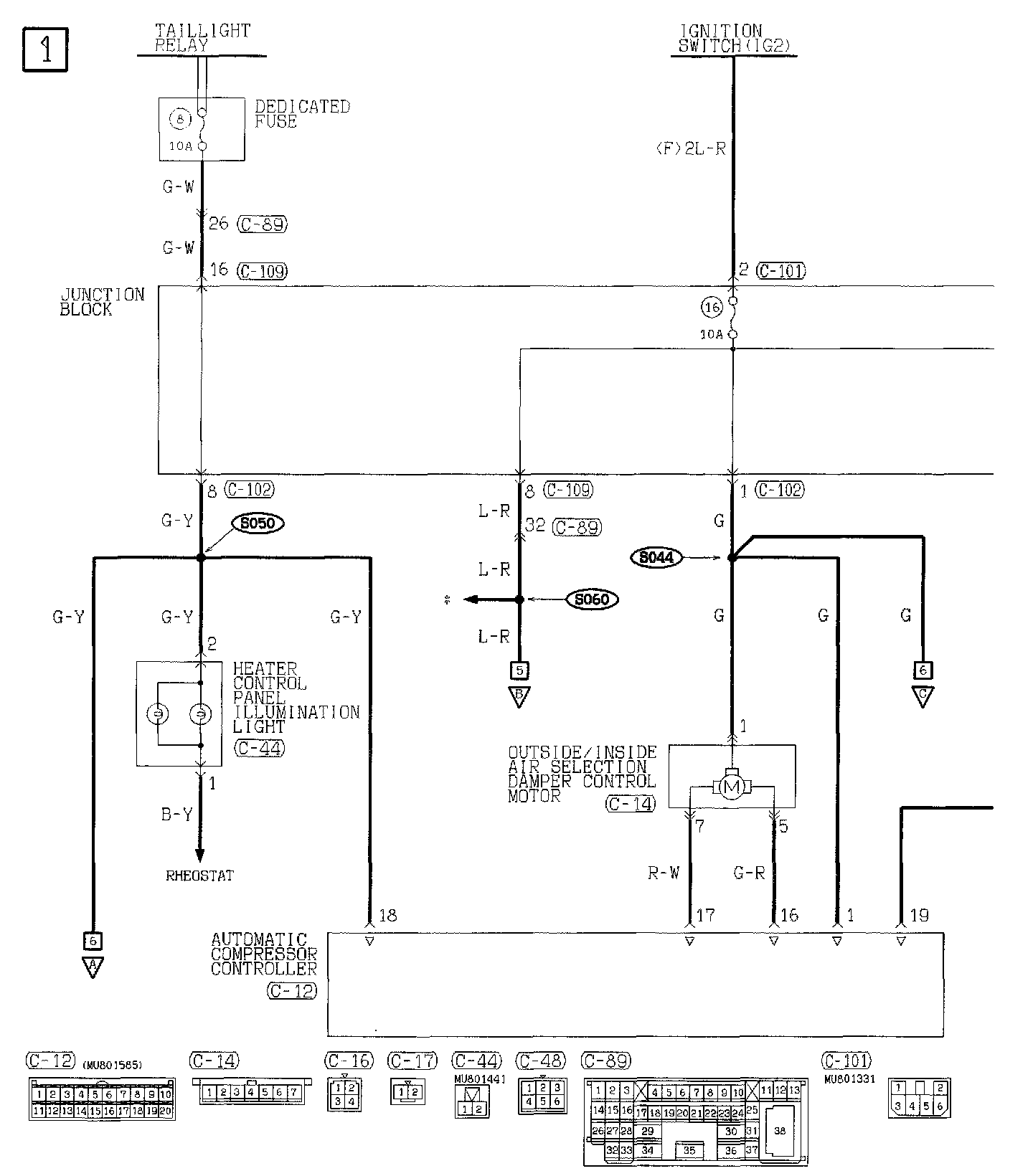

Air Conditioning System <2.4L Engine> Part 1:

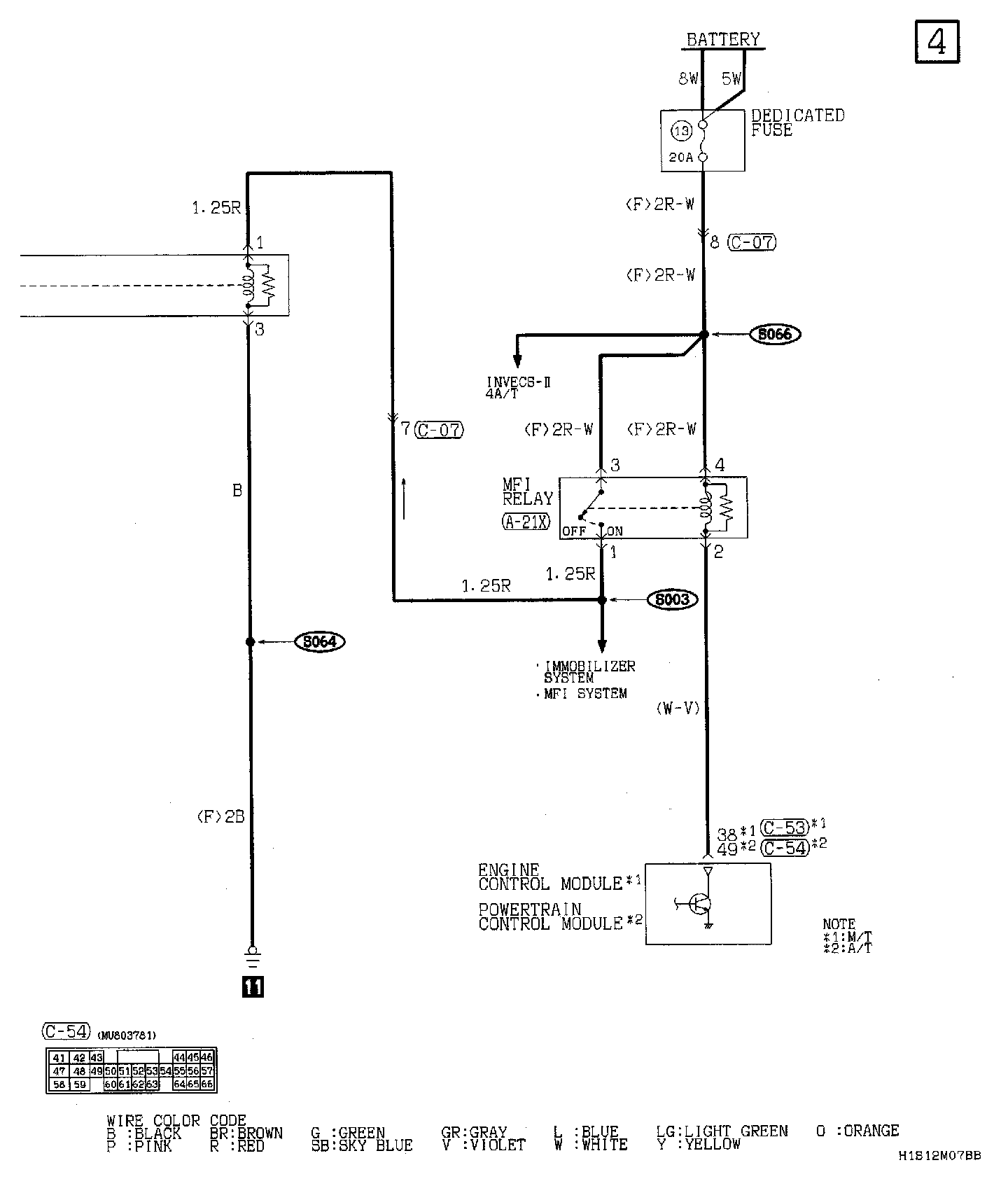

Air Conditioning System <2.4L Engine> Part 2:

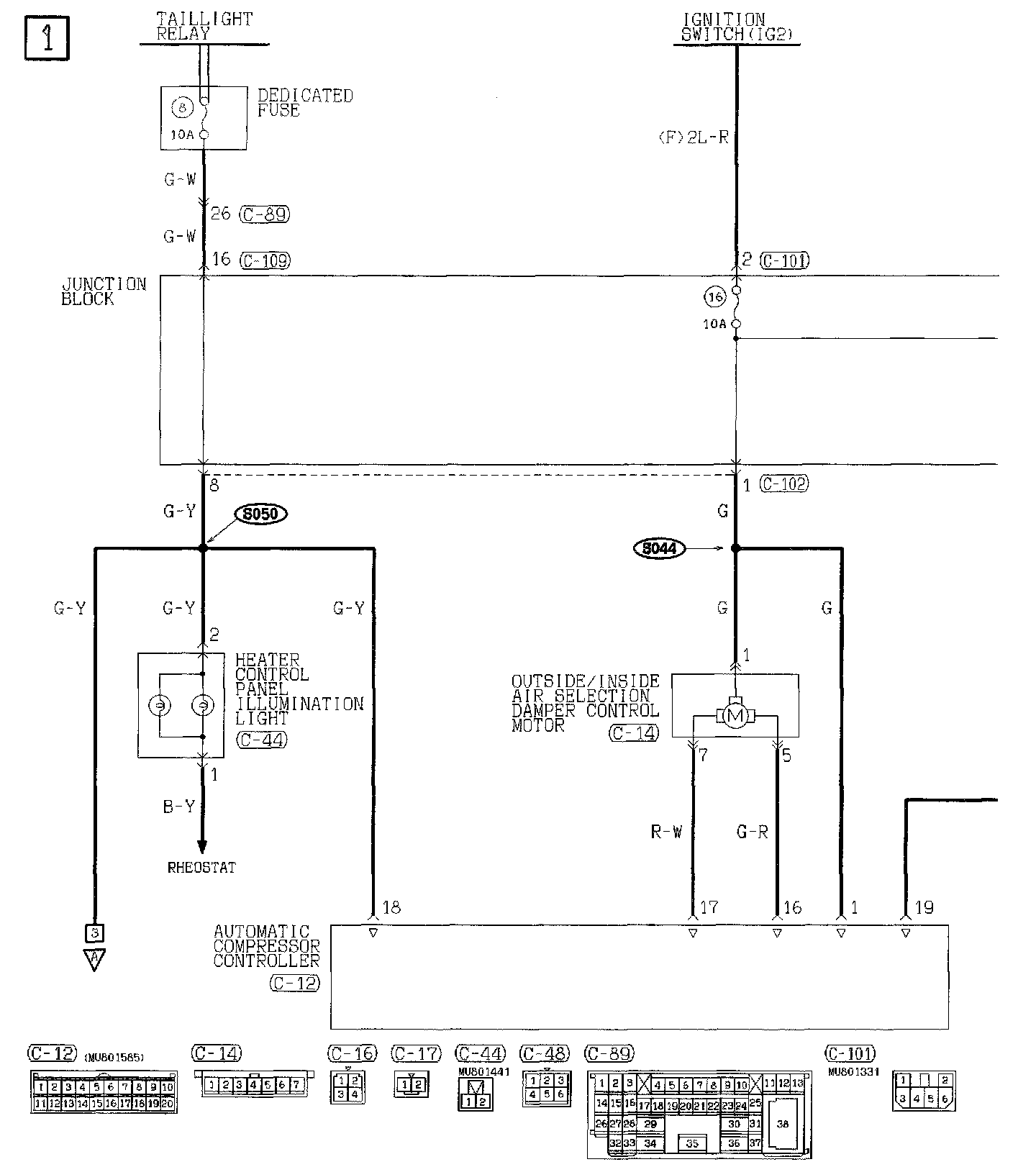

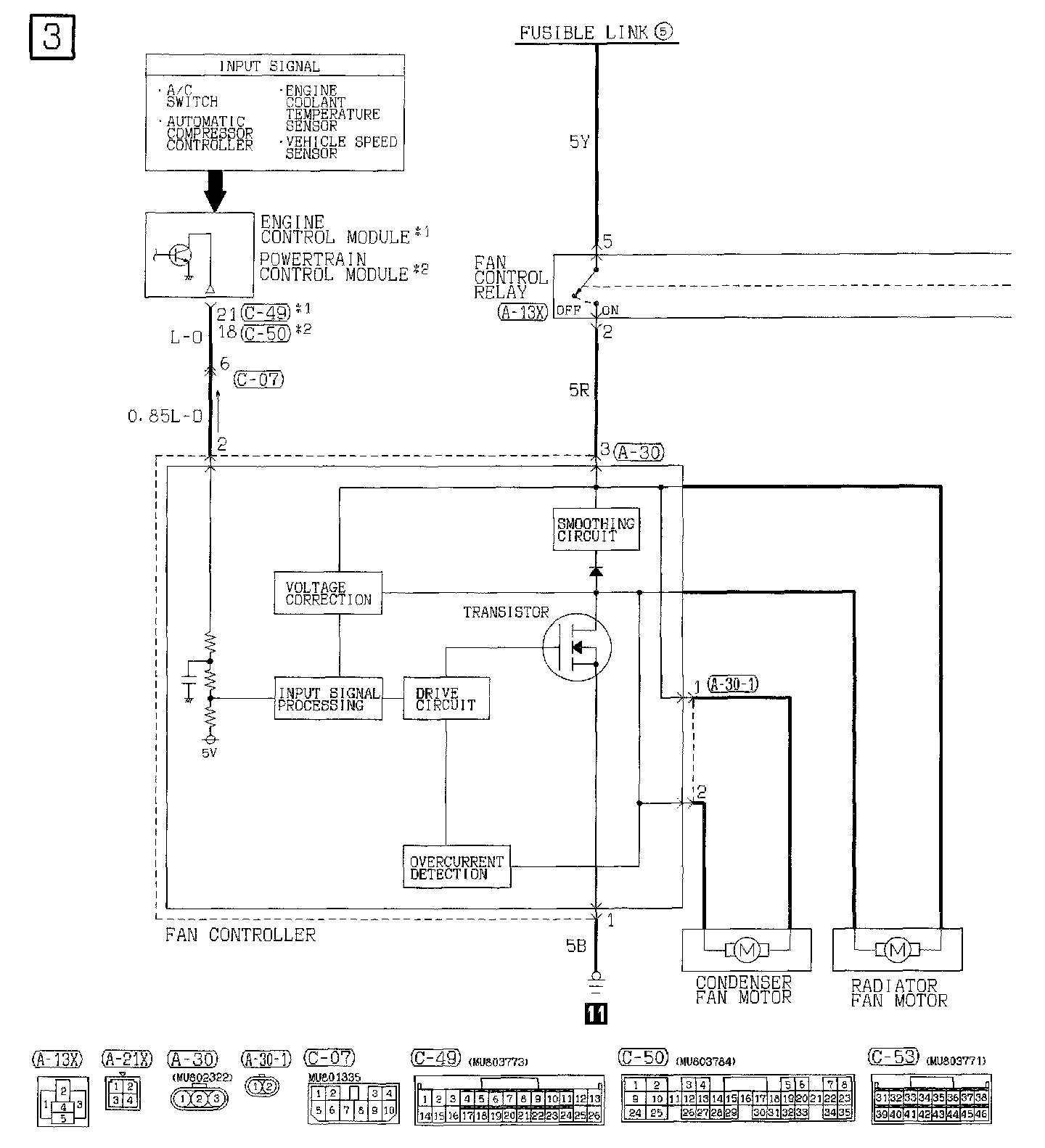

Air Conditioning System <2.4L Engine> Part 3:

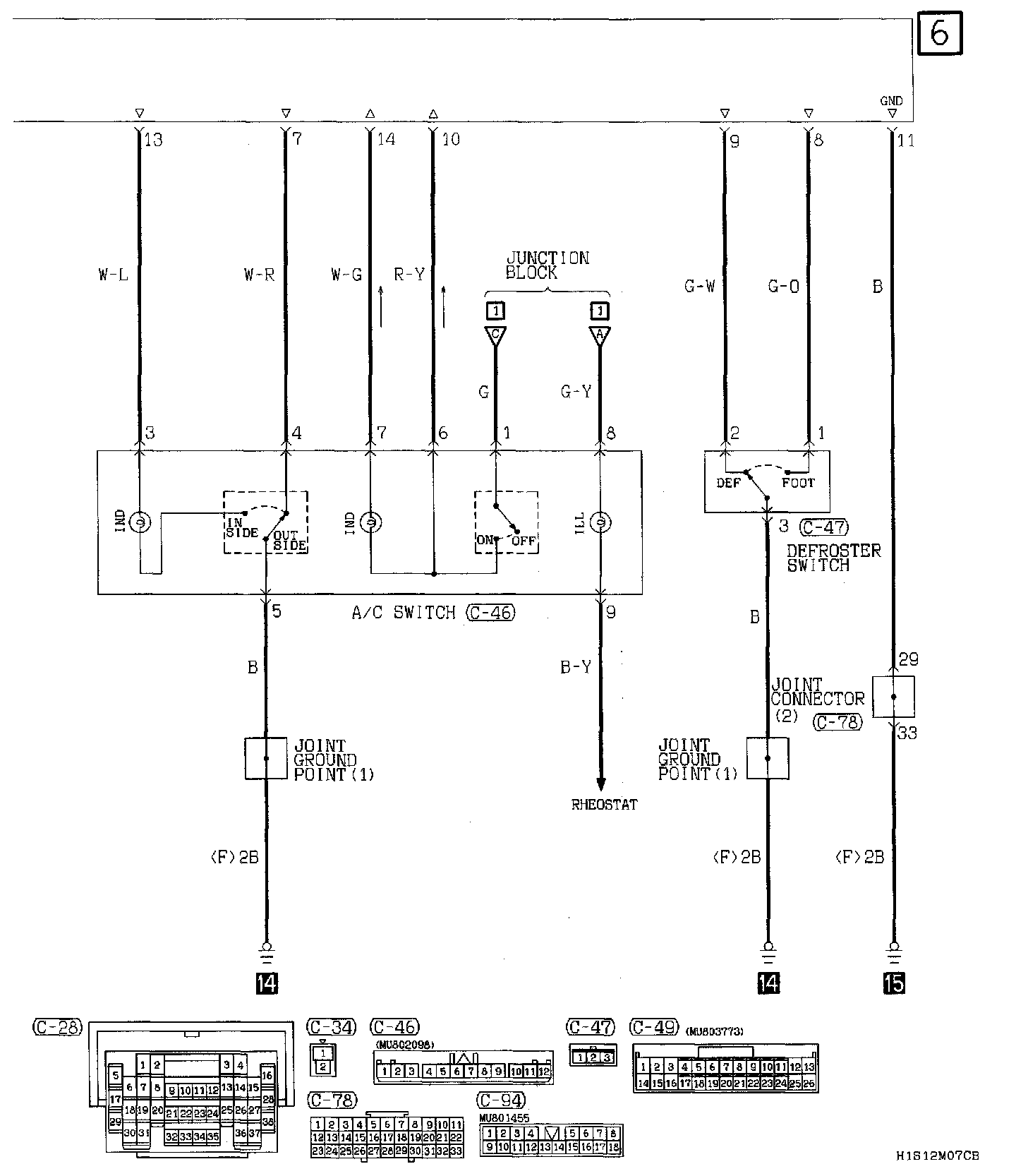

Air Conditioning System <2.4L Engine> Part 4:

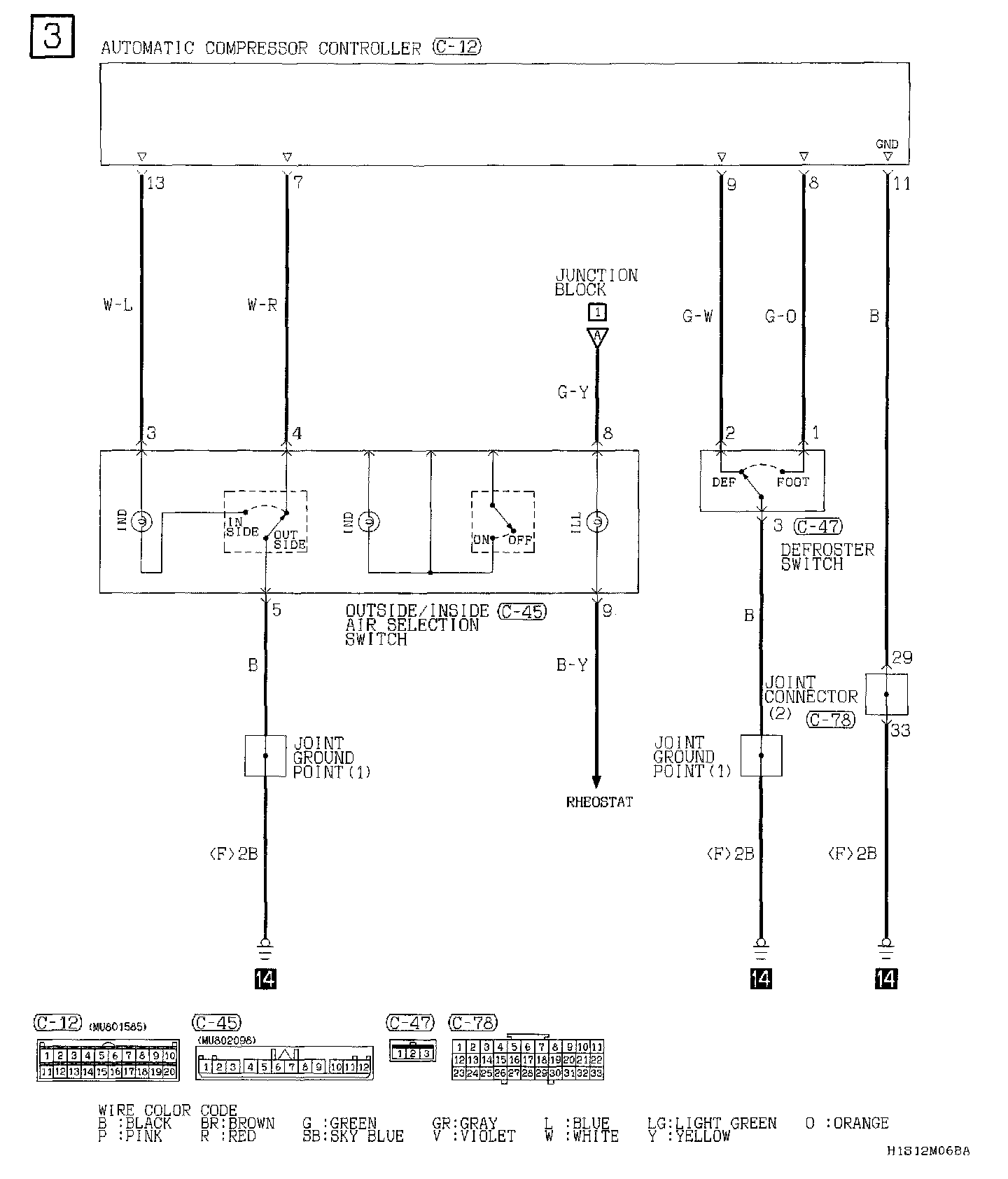

Air Conditioning System <2.4L Engine> Part 5:



Air Conditioning System <2.4L Engine> Part 6:
