Home
>>
Mitsubishi
>>
2001
>>
Eclipse RS L4-2350cc 2.4L SOHC MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Manual Transmission/Transaxle
>>
System Diagram
>>
Unit Overhaul
>>
Transaxle
Transaxle

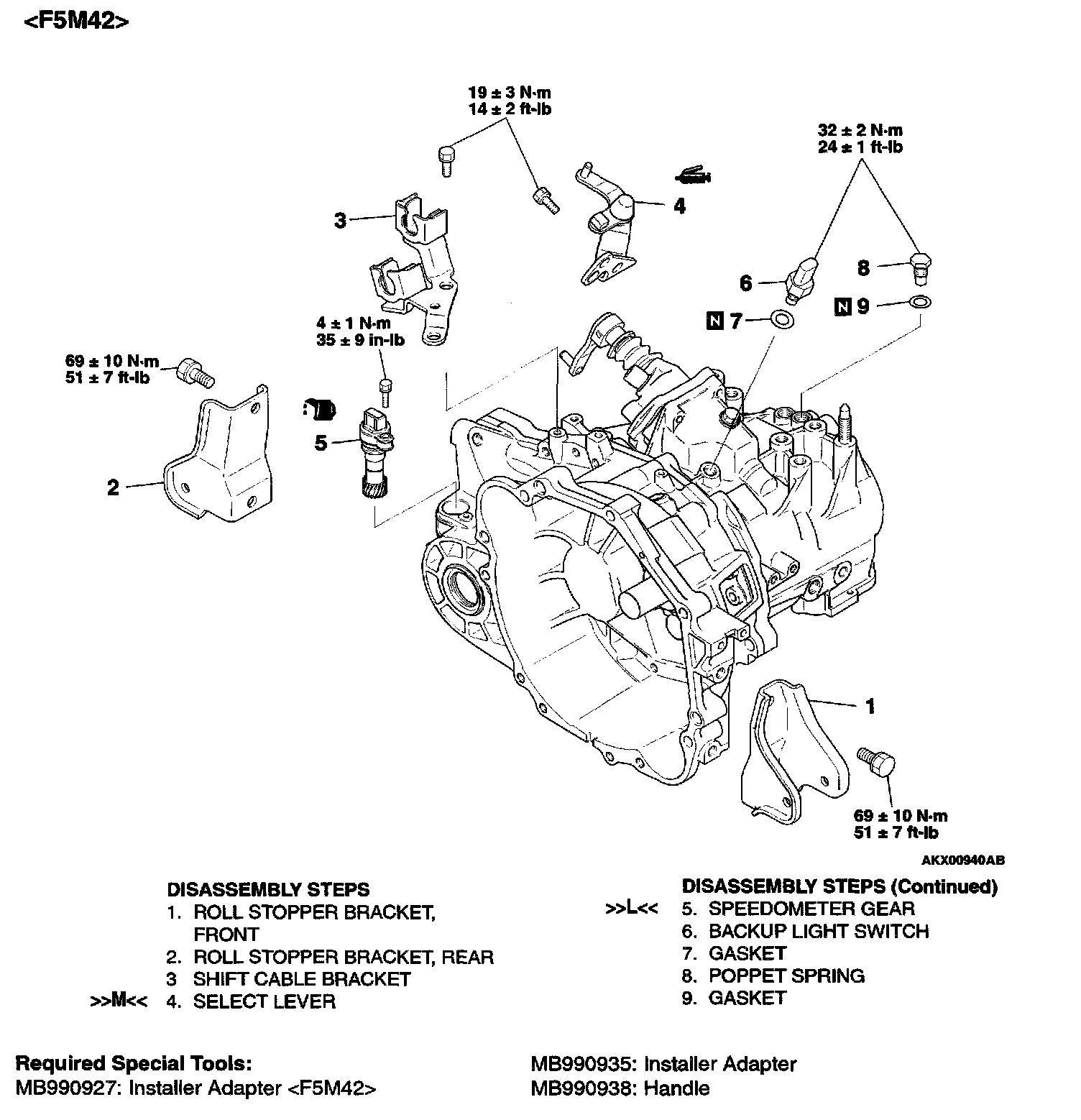

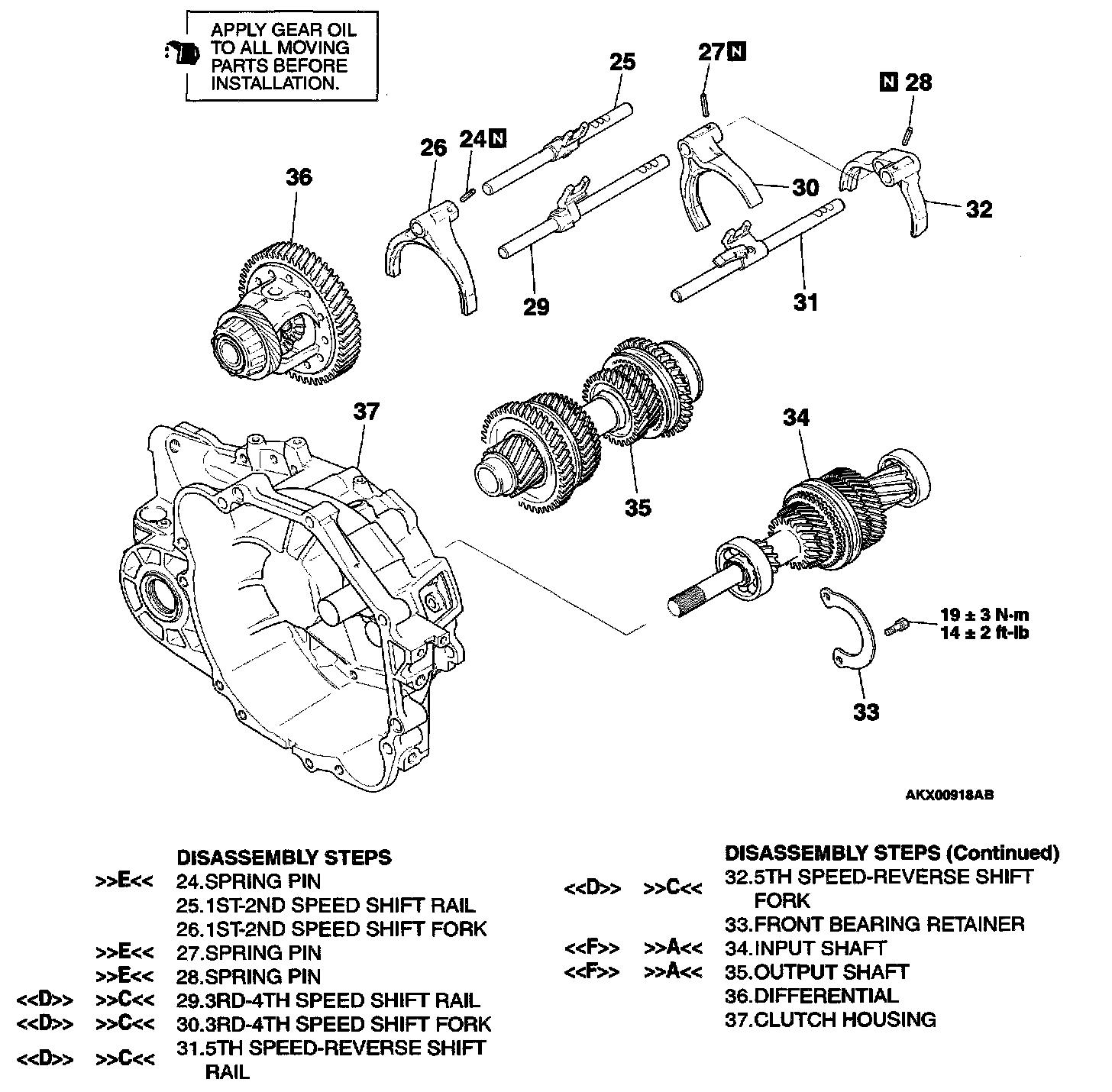

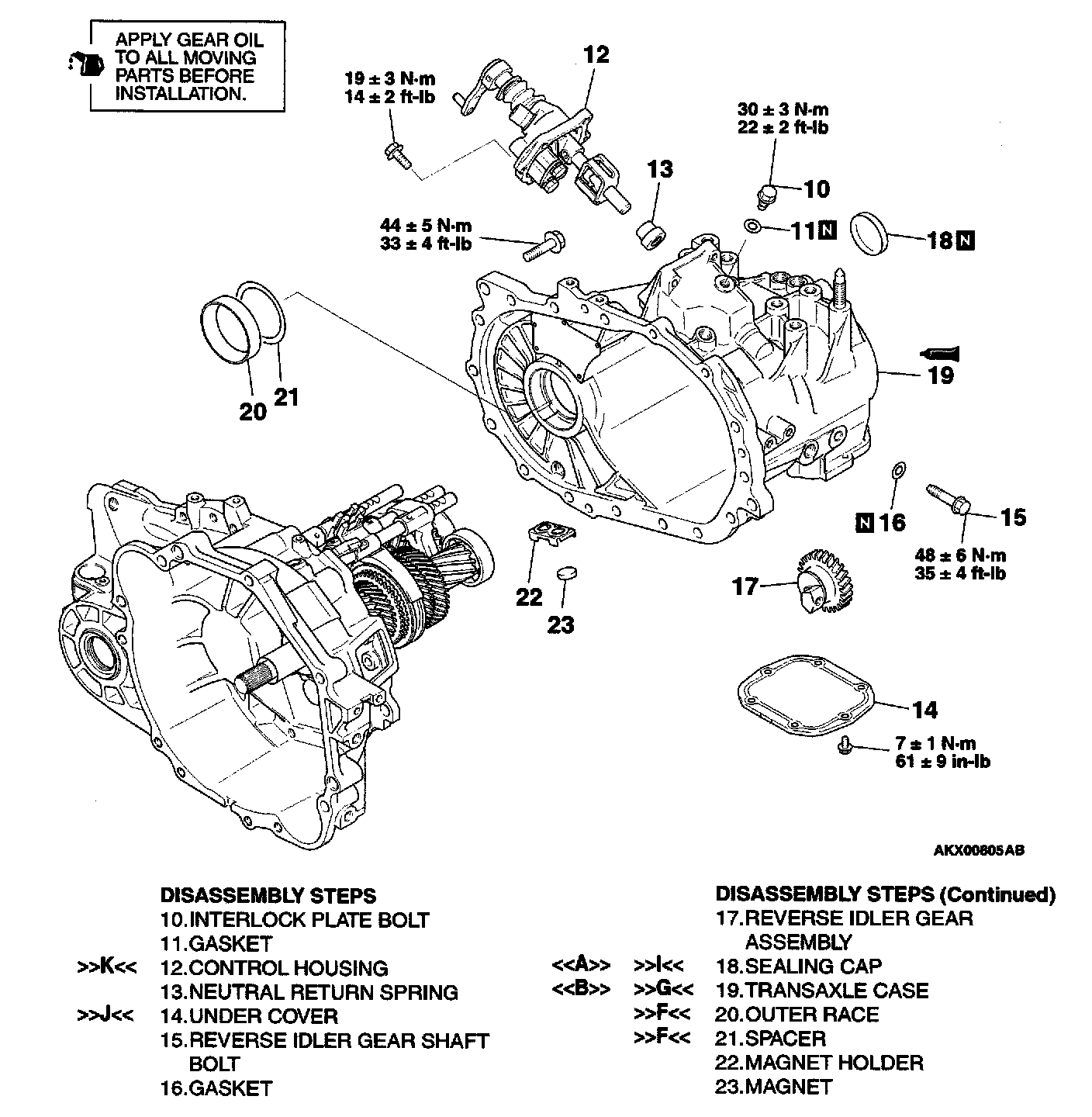

TRANSAXLE (TRANSMISSION) OVERHAUL W/ RELATED COMPONENTS
Part 1 of 3
Part 2 of 3
Part 3 of 3
