Cylinder Head Gasket

CYLINDER HEAD GASKET REPLACEMENT W/RELATED COMPONENTS

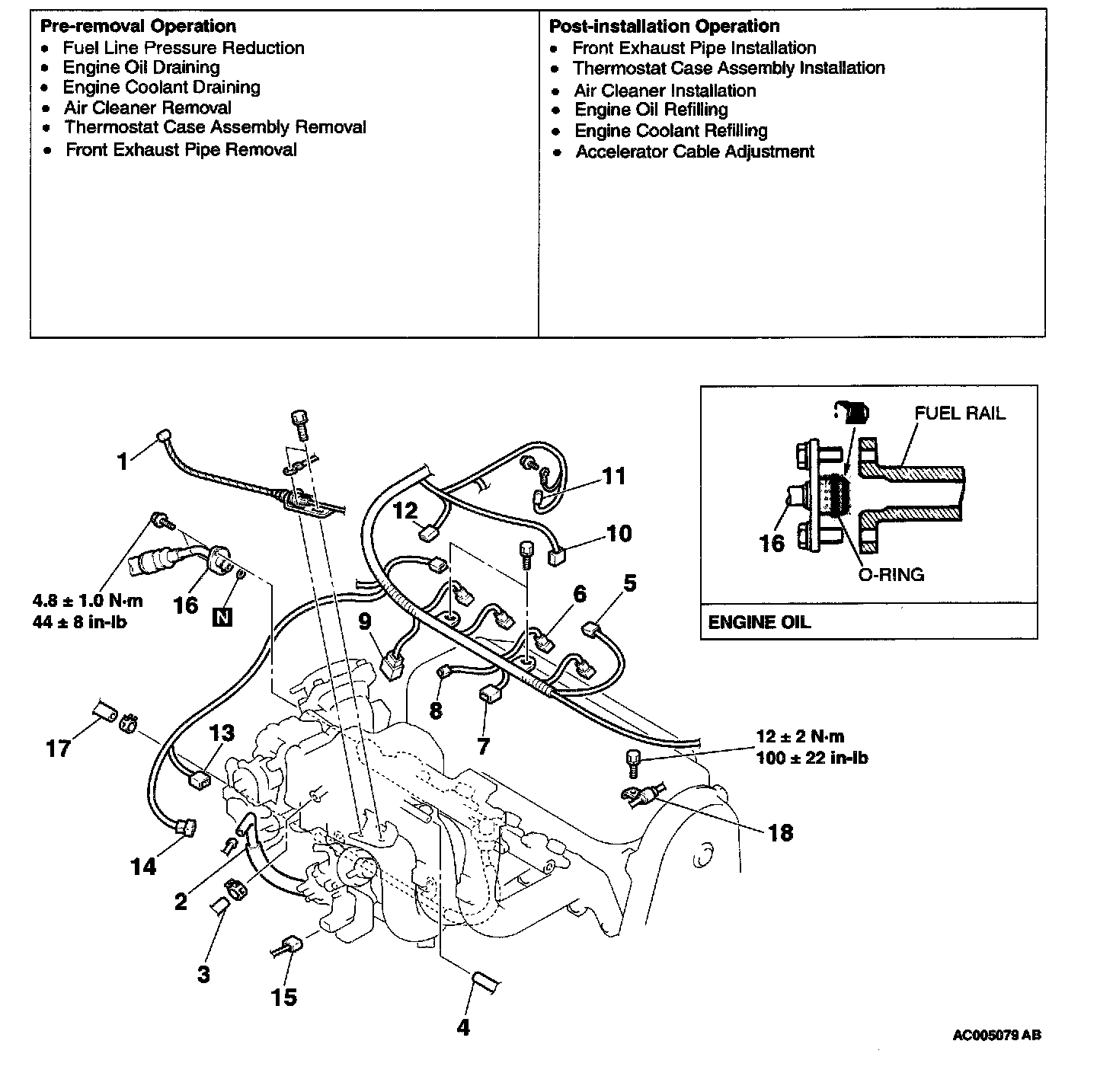

Part 1 of 3

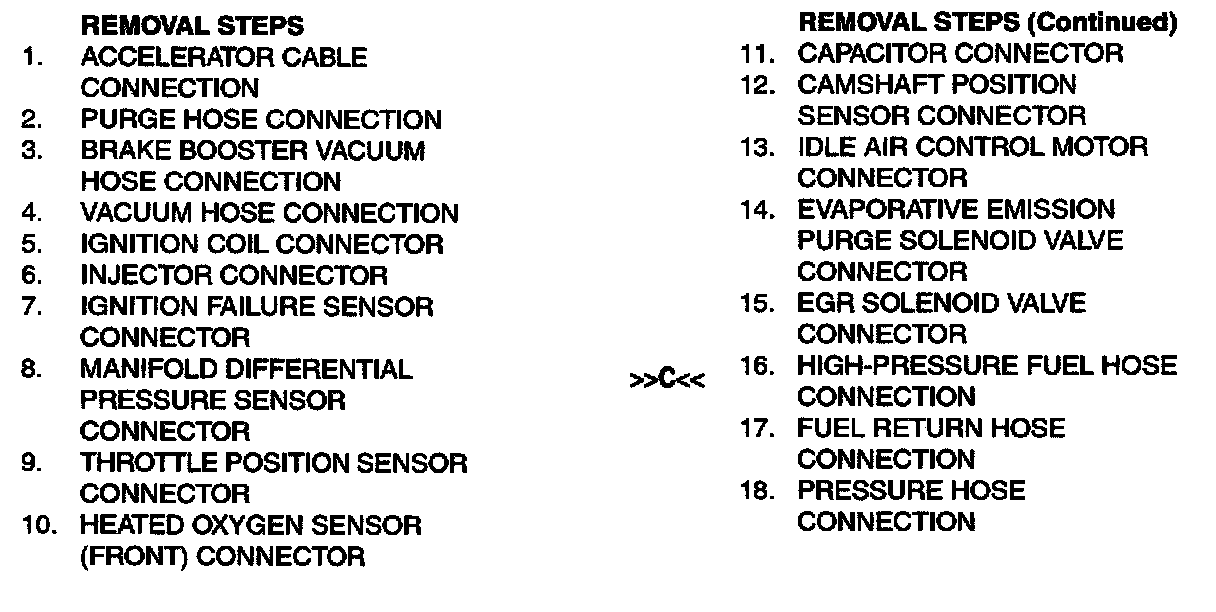

Part 2 of 3

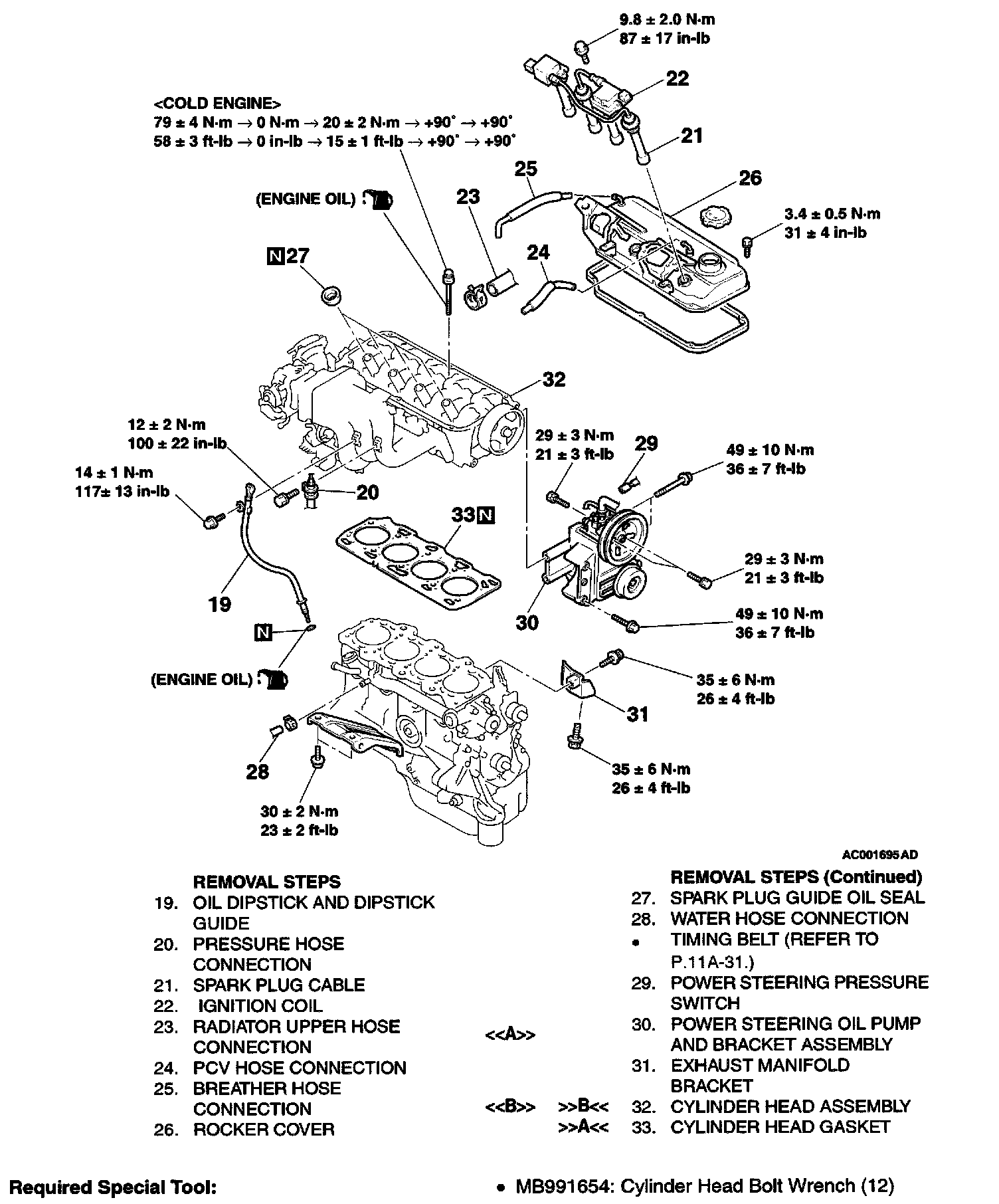

Part 3 of 3
