Turn Signals

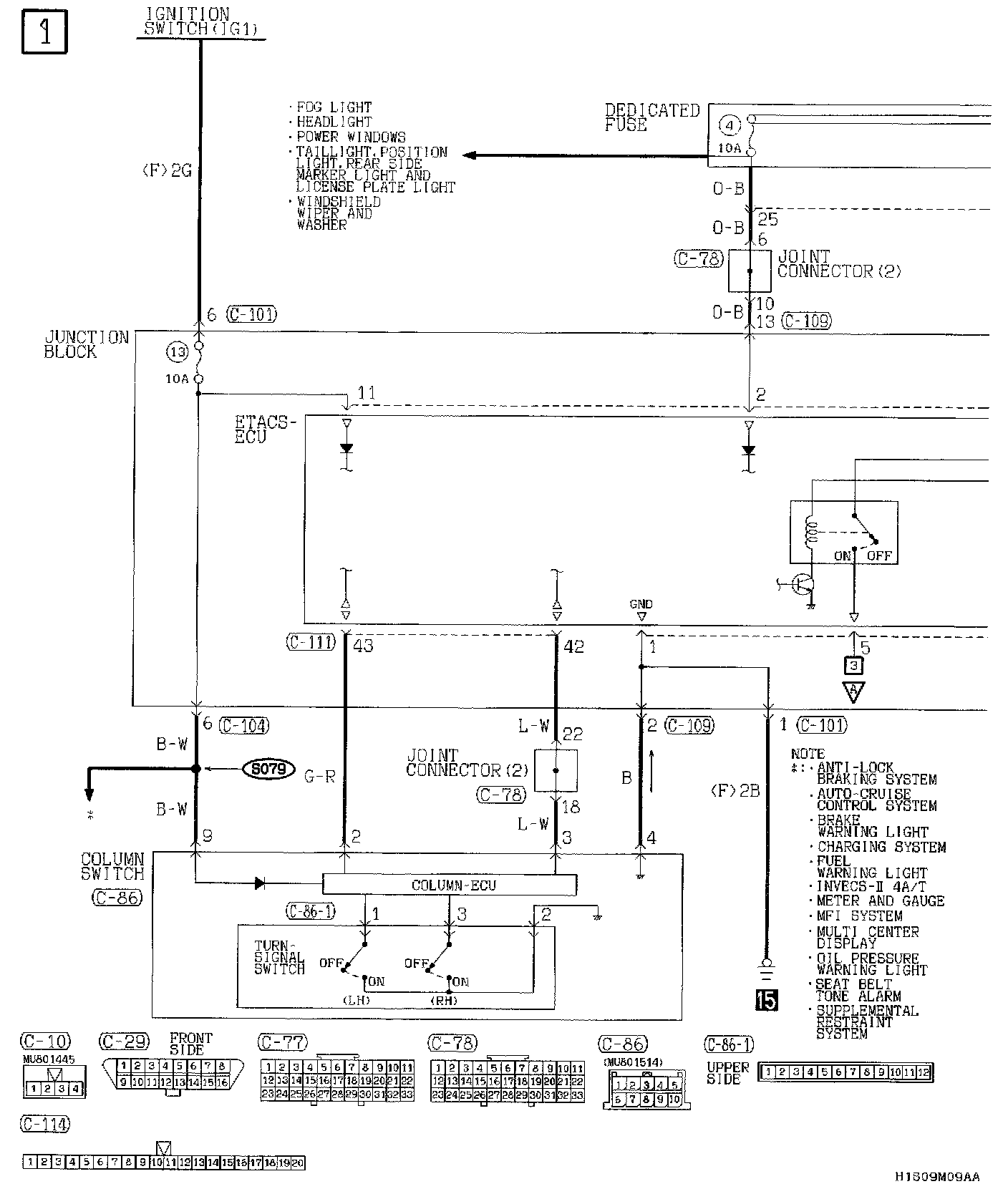

Turn-Signal Light And Hazard Warning Light Part 1:

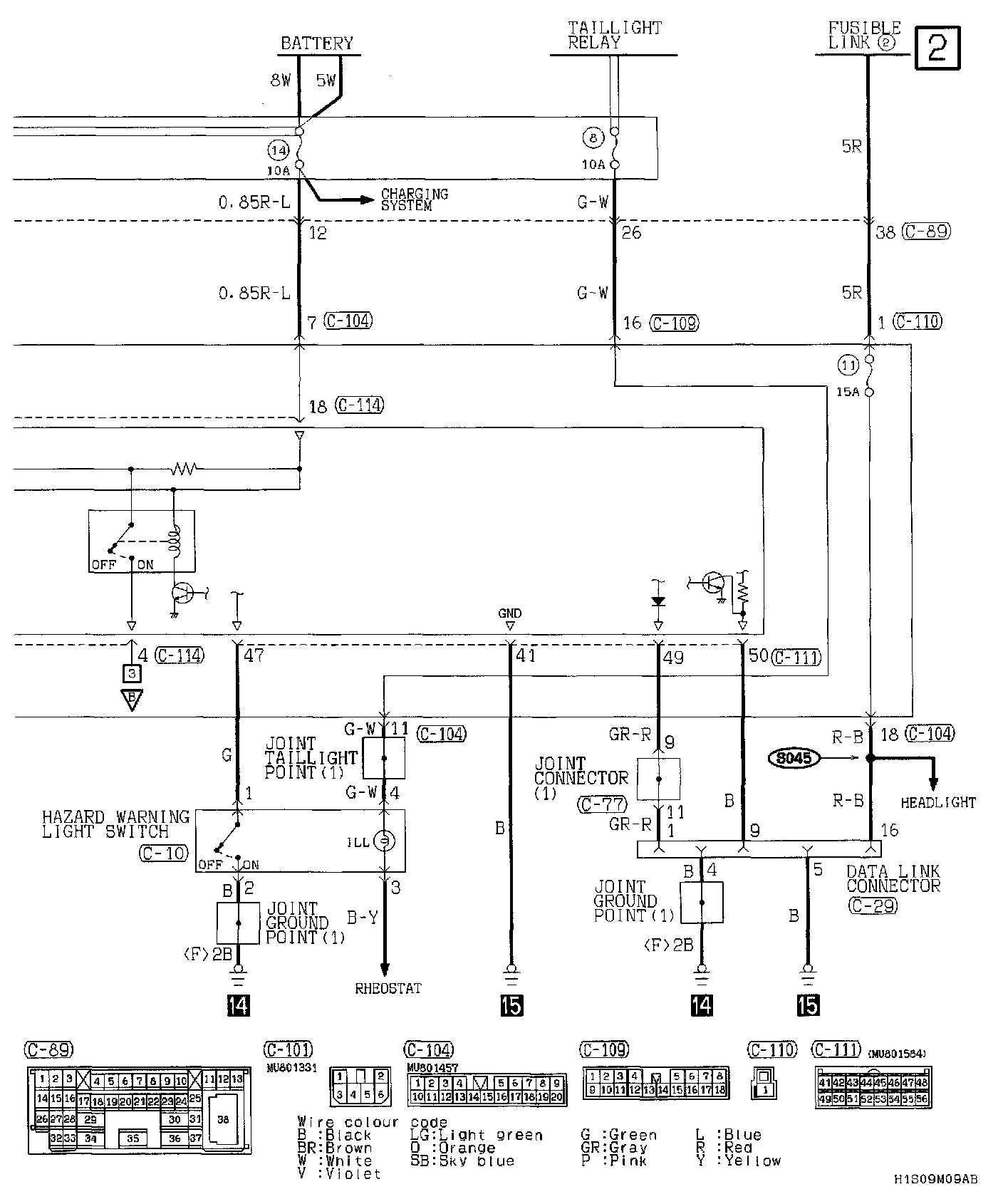

Turn-Signal Light And Hazard Warning Light Part 2:

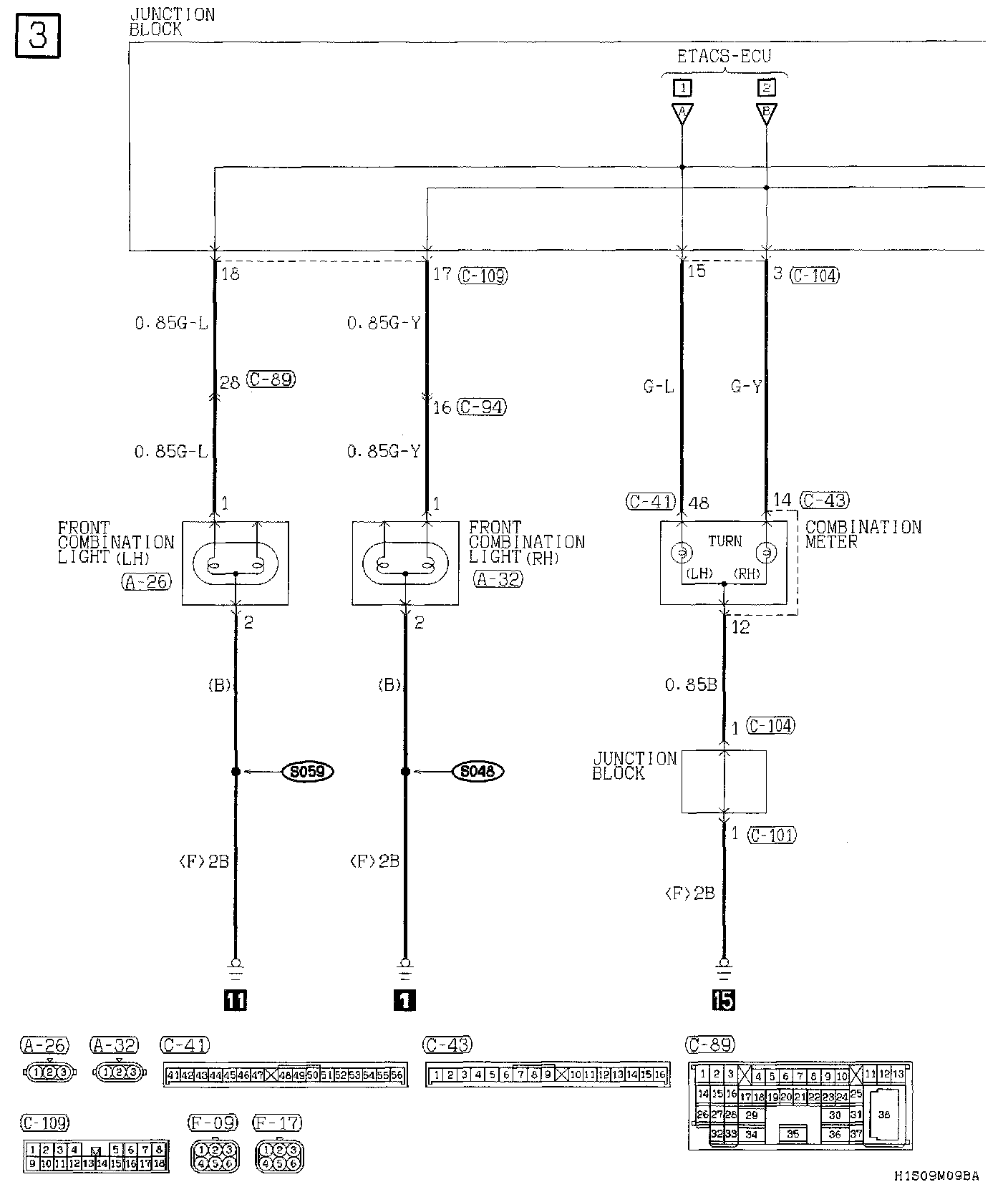

Turn-Signal Light And Hazard Warning Light Part 3:

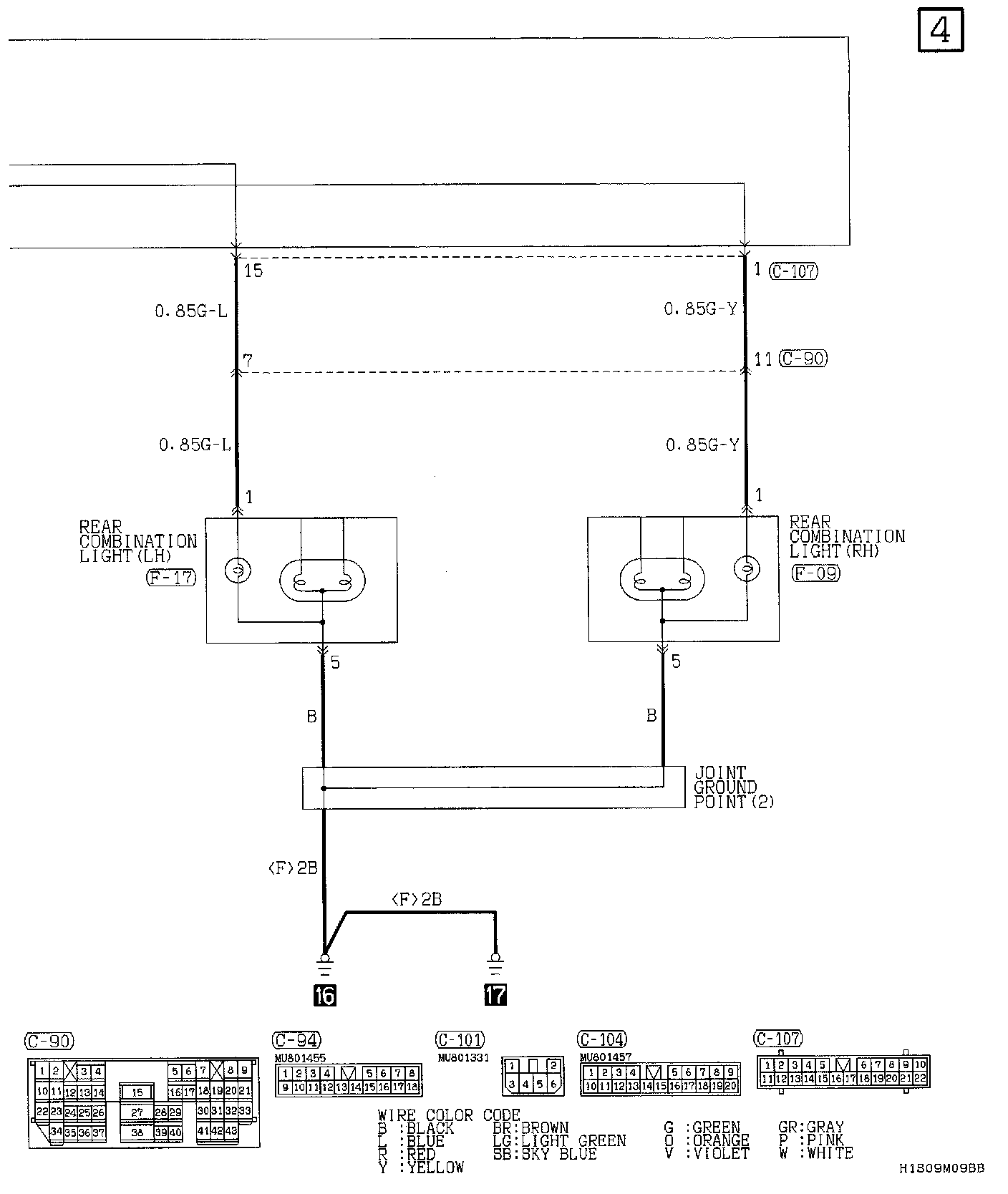

Turn-Signal Light And Hazard Warning Light Part 4:
