Trunk Lamp

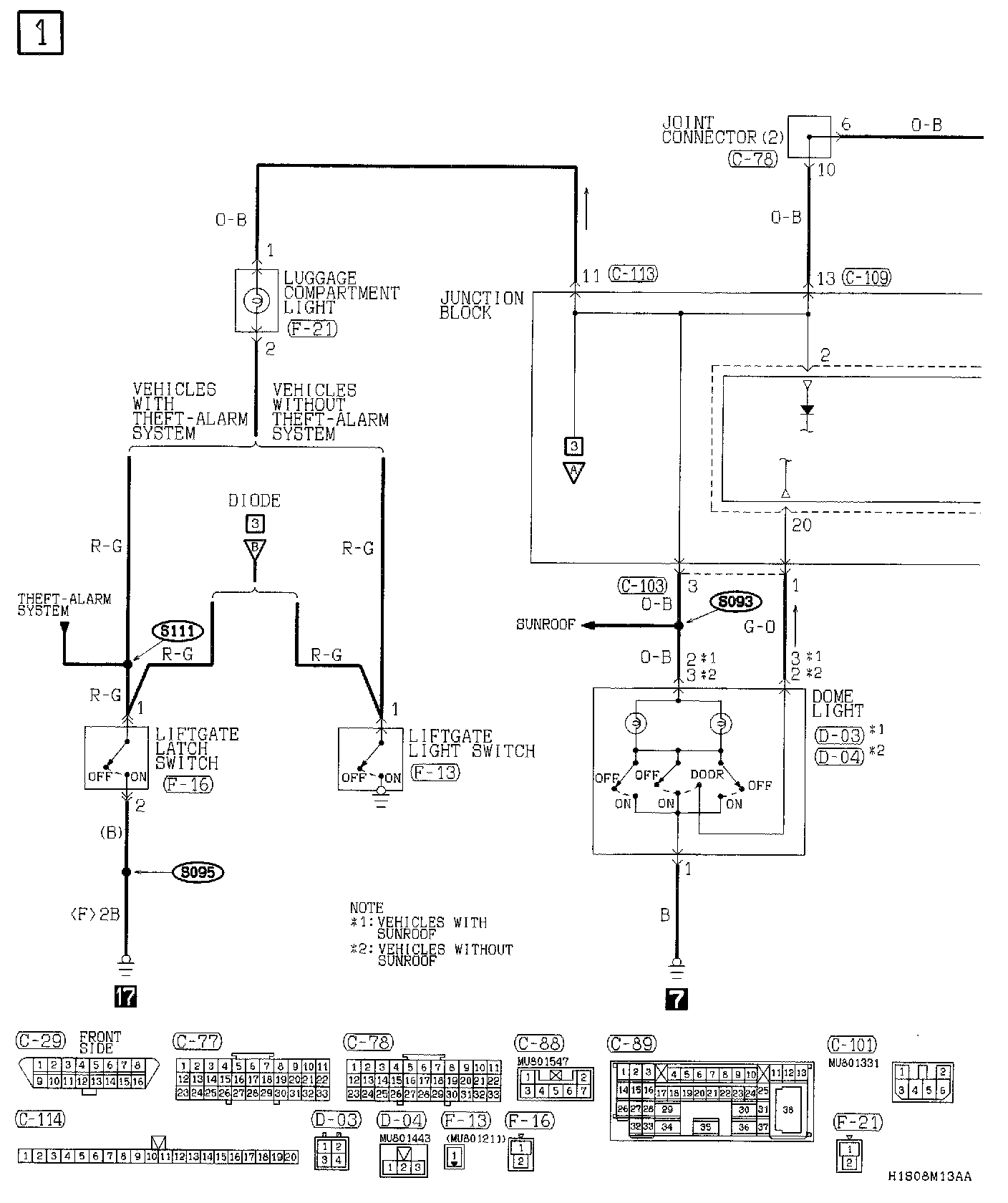

Dome Light And Luggage Compartment Light <Eclipse> Part 1:

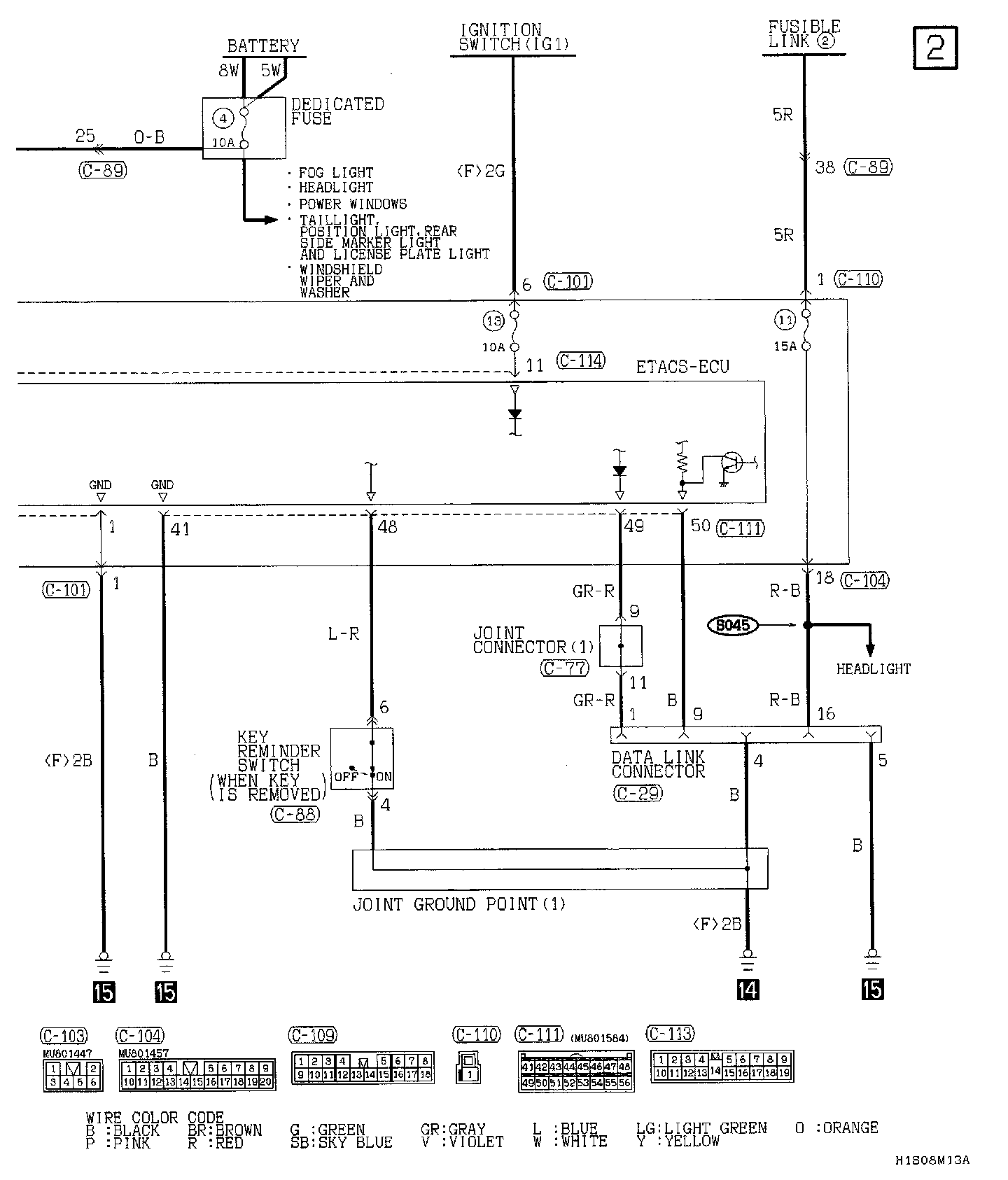

Dome Light And Luggage Compartment Light <Eclipse> Part 2:

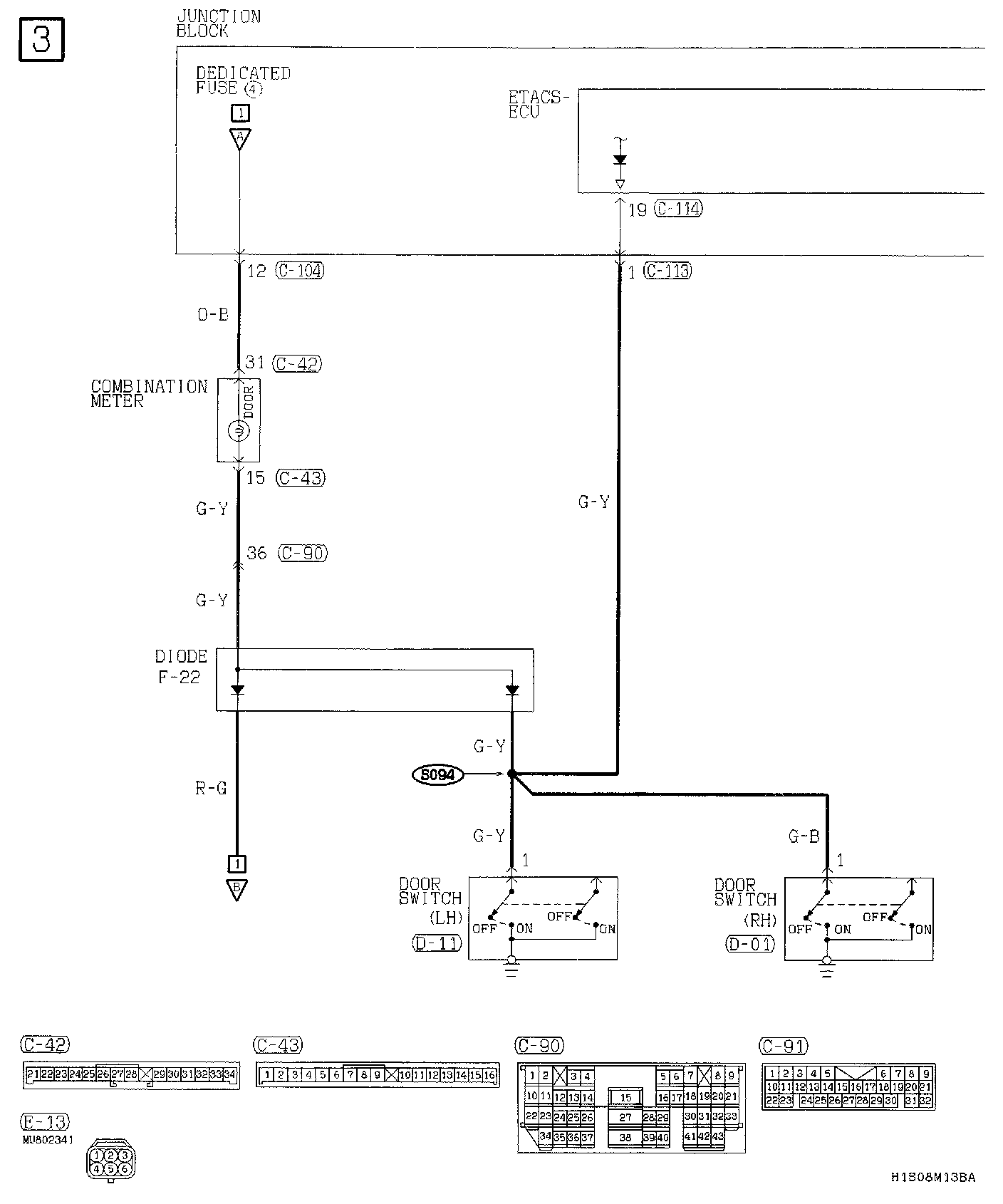

Dome Light And Luggage Compartment Light <Eclipse> Part 3:

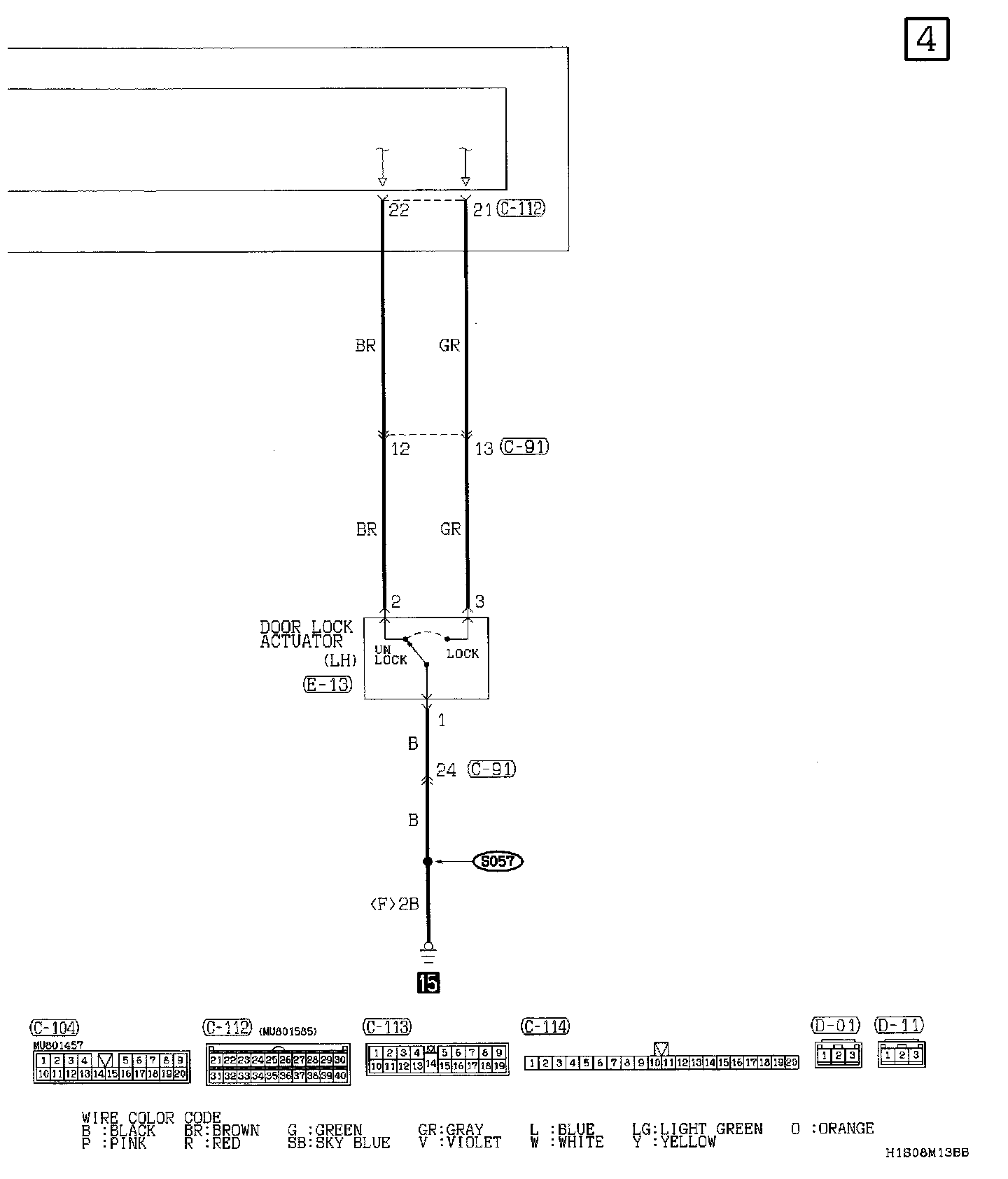

Dome Light And Luggage Compartment Light <Eclipse> Part 4:
