Eclipse RS L4-2350cc 2.4L SOHC MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power and Ground Distribution
>>
Fuse Block
Fuse Block

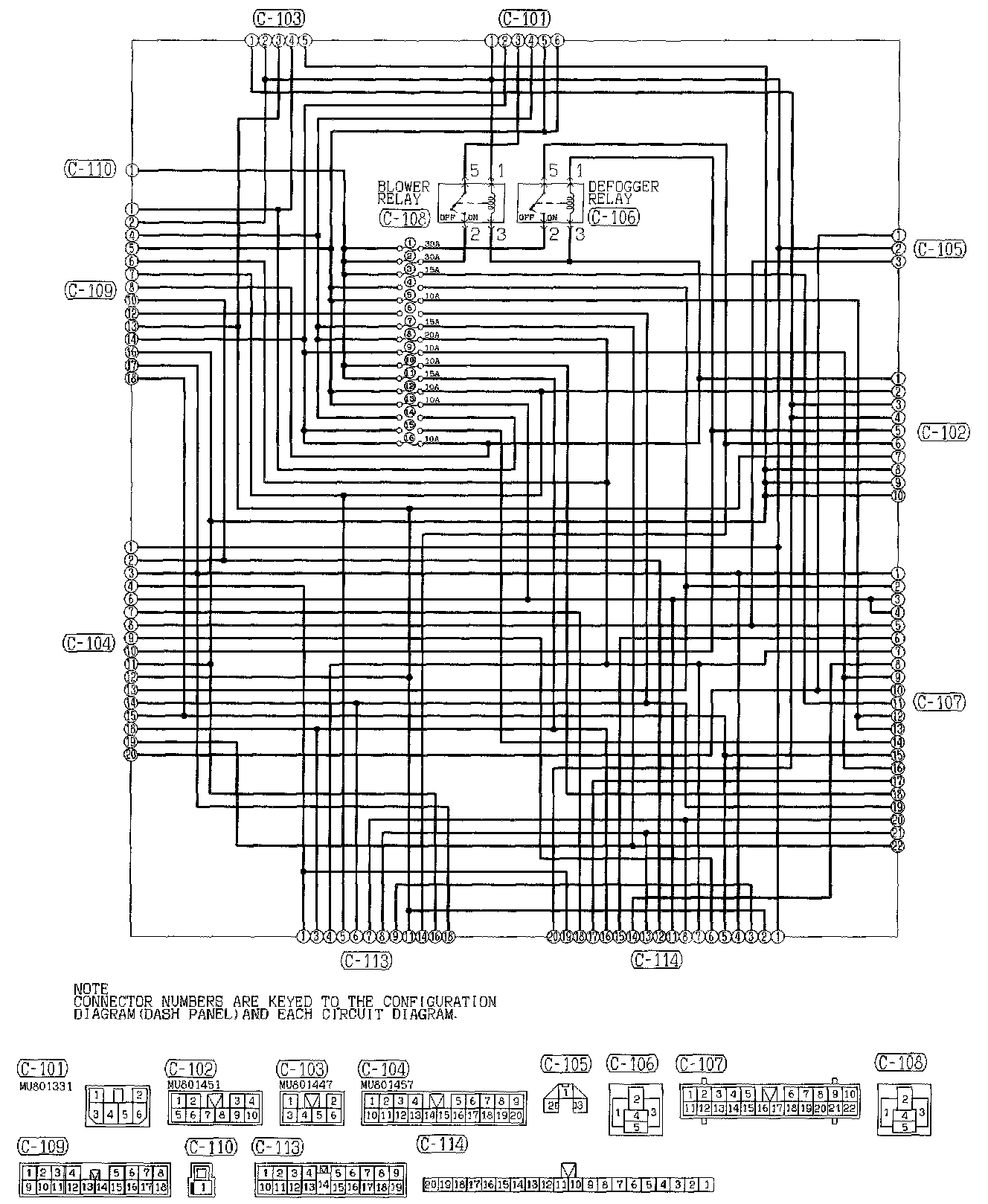

Junction Block Part 1:
