Eclipse RS L4-2350cc 2.4L SOHC MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Charging System
>>
M/T
M/T

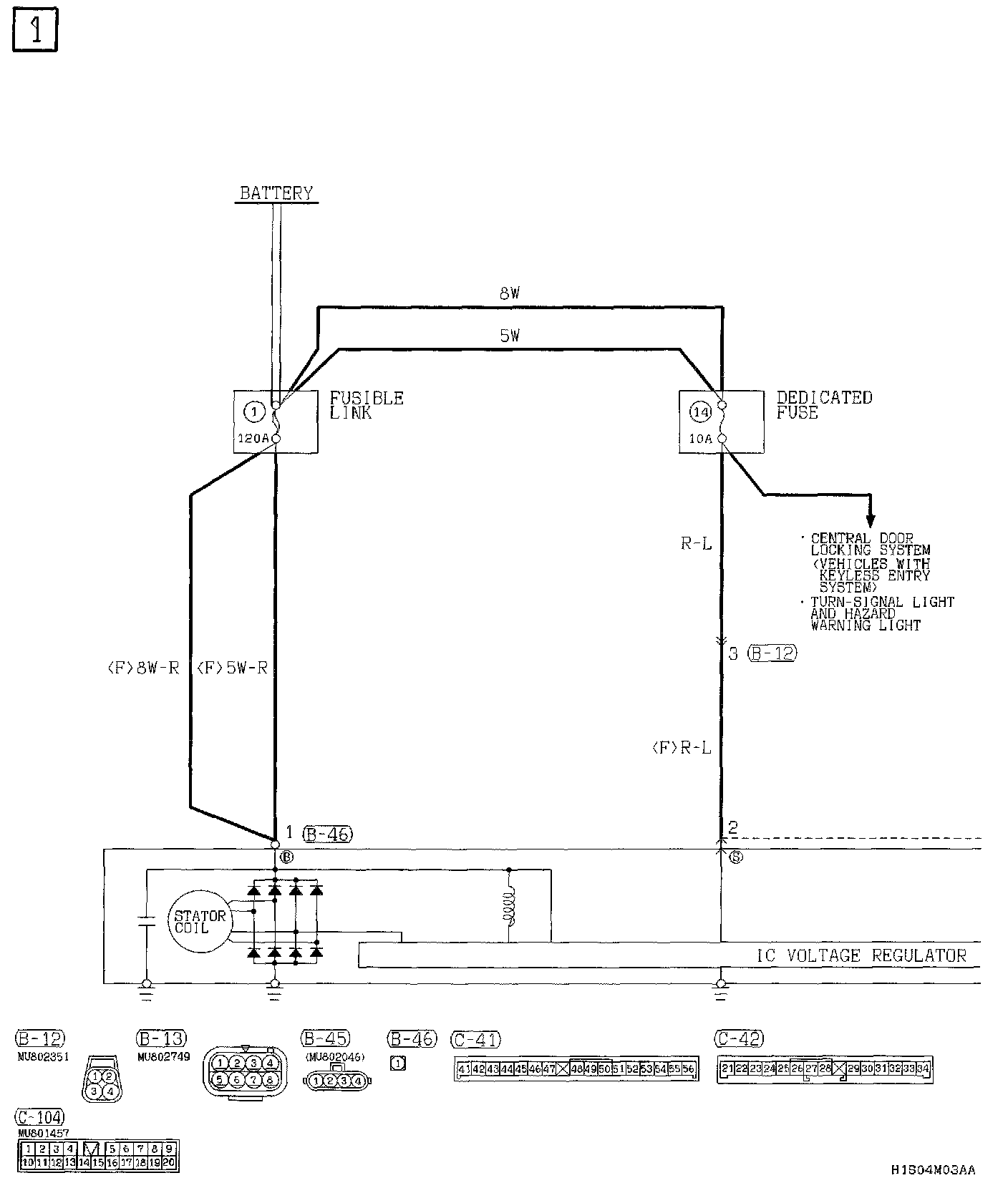

Charging System <M/T> Part 1:

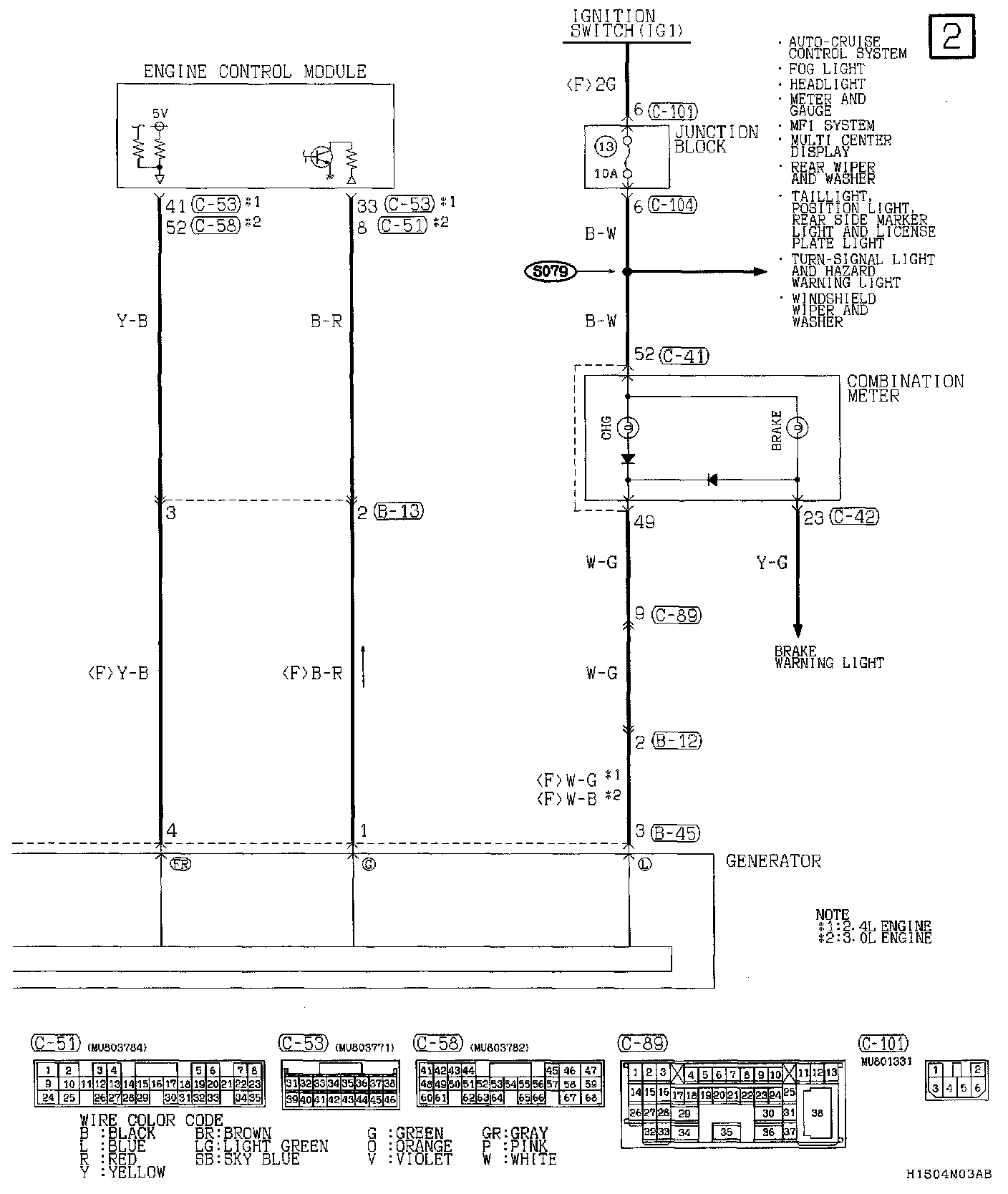

Charging System <M/T> Part 2:
