Home
>>
Mitsubishi
>>
2001
>>
Eclipse RS L4-2350cc 2.4L SOHC MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Charging System
>>
A/T
A/T

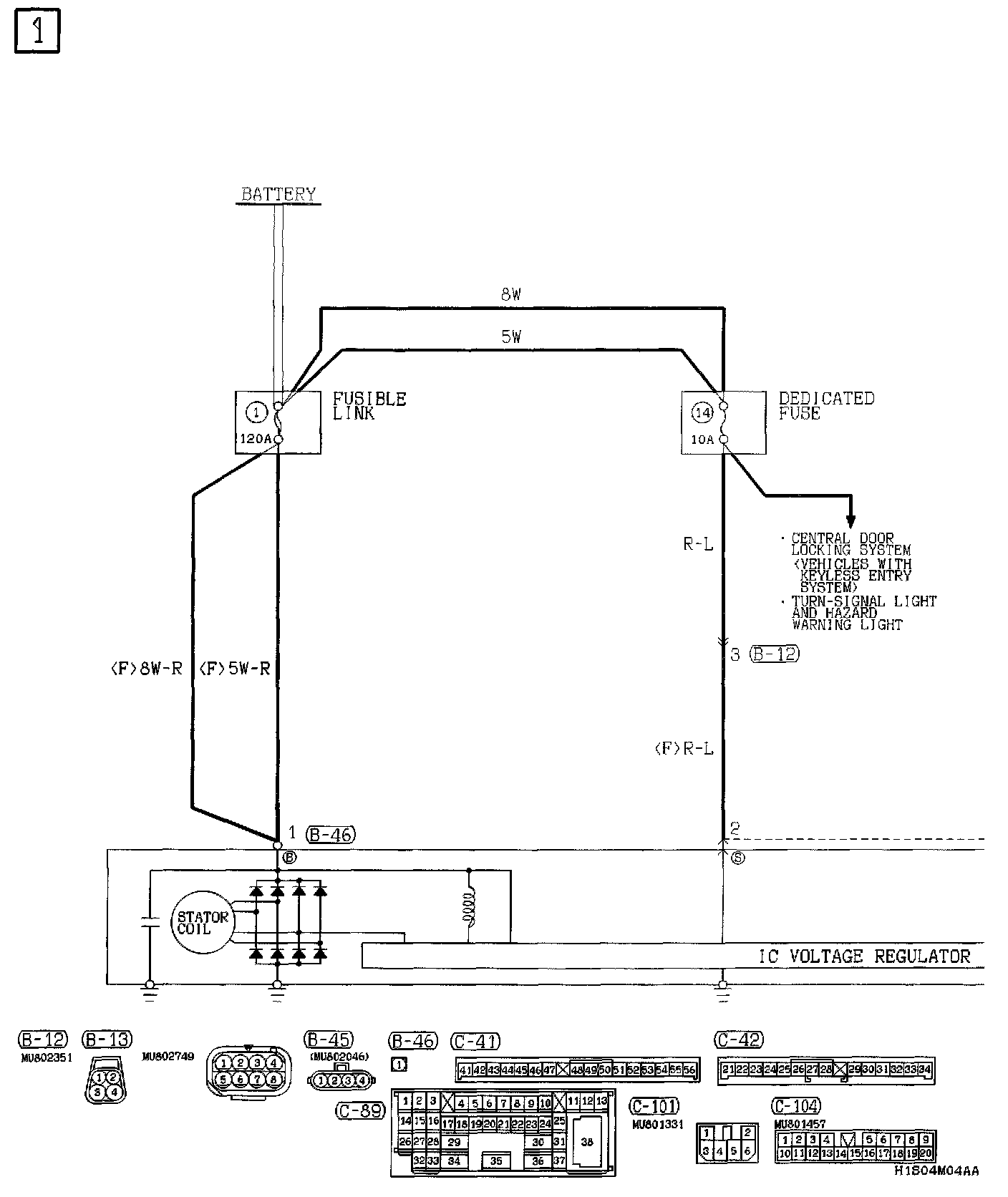

Charging System <A/T> Part 1:

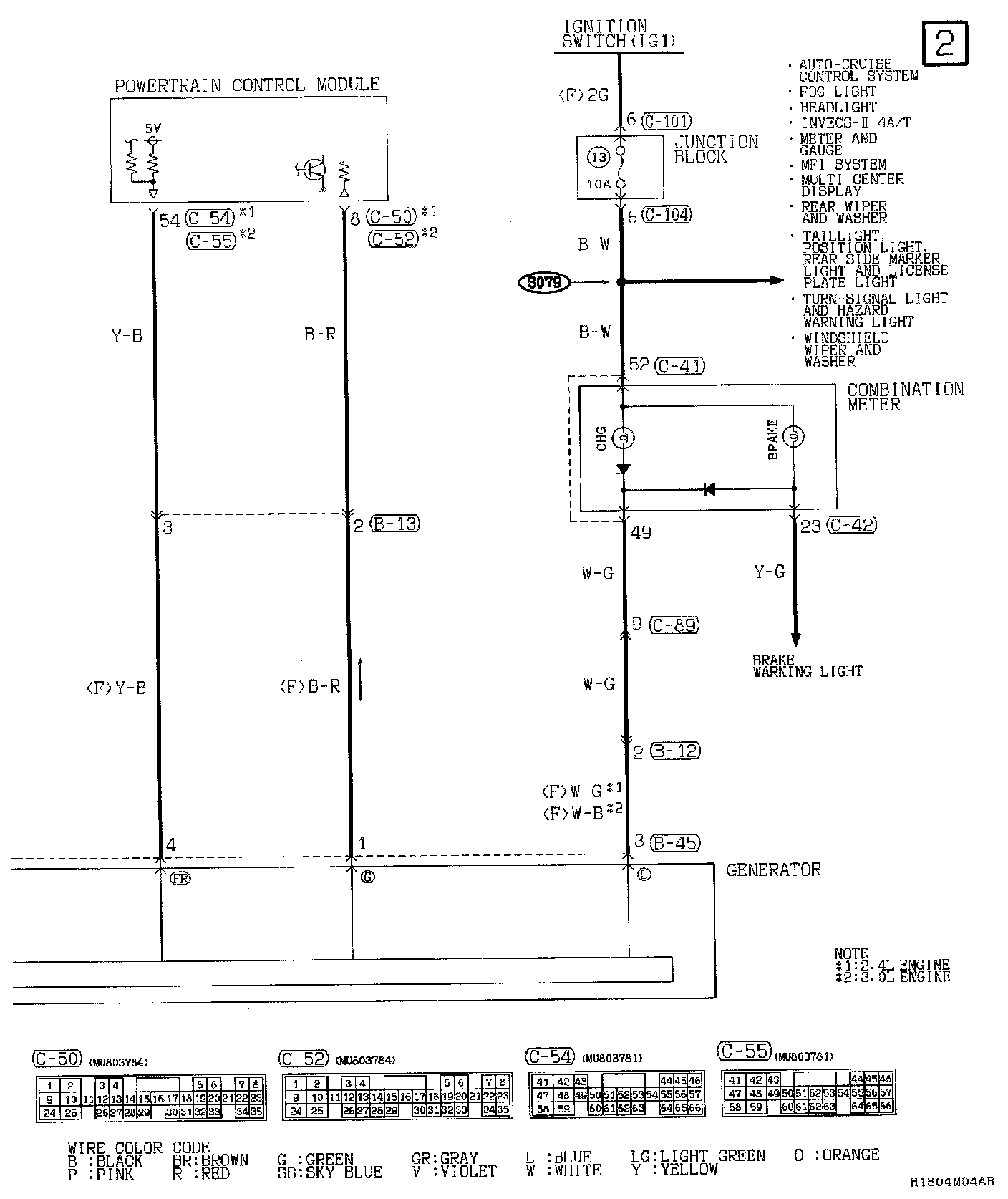

Charging System <A/T> Part 2:
