Brake Warning Indicator
Brake Warning Indicator

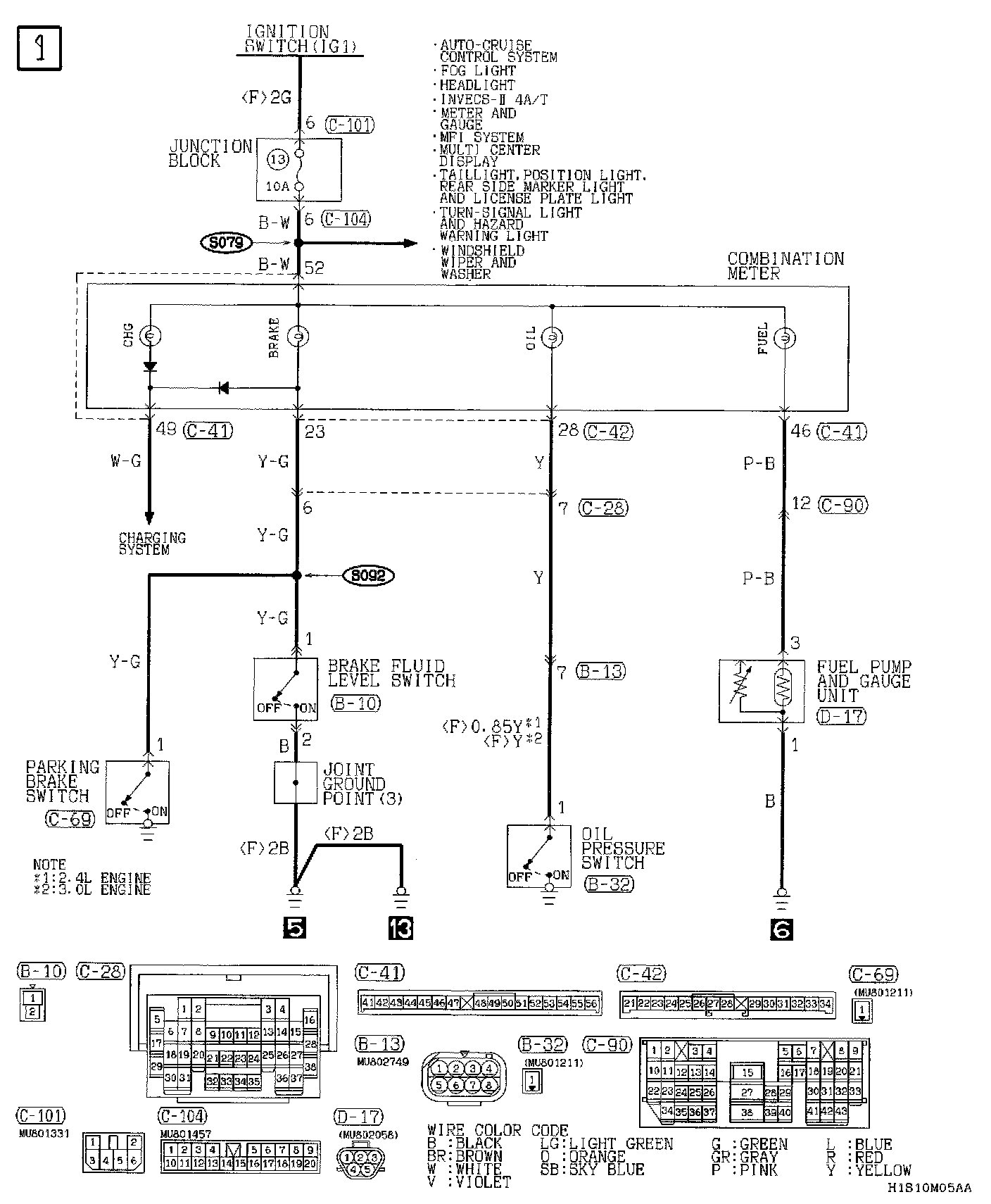

Brake Warning Light, Oil Pressure Warning Light, Fuel Warning Light:
