Home >> Mitsubishi >> 2001 >> Eclipse RS L4-2350cc 2.4L SOHC MFI >> Repair and Diagnosis >> Cruise Control >> Diagrams >> Electrical Diagrams >> M/T

M/T

Auto-Cruise Control System <2.4L Engine-M/T> Part 1:

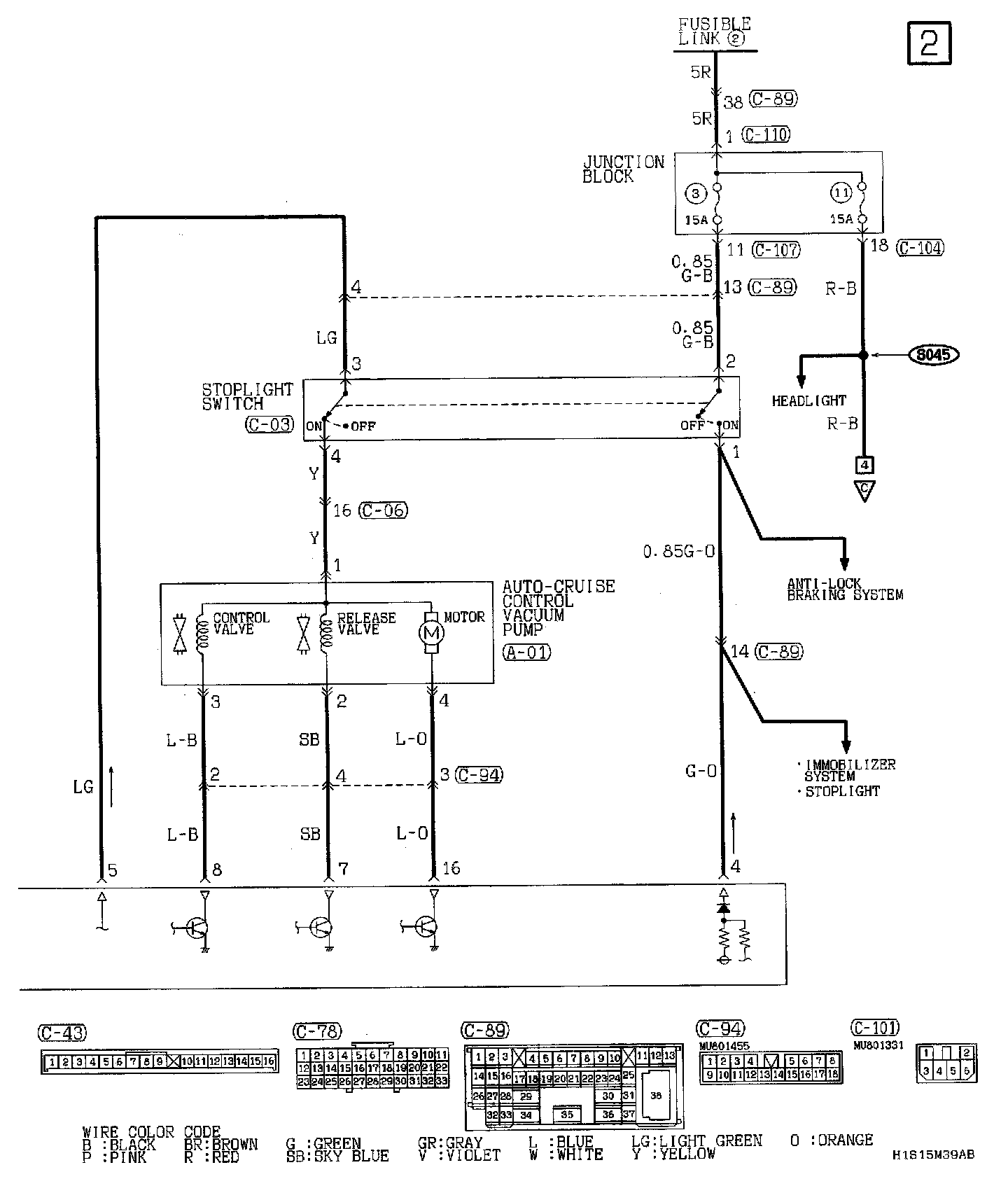

Auto-Cruise Control System <2.4L Engine-M/T> Part 2:

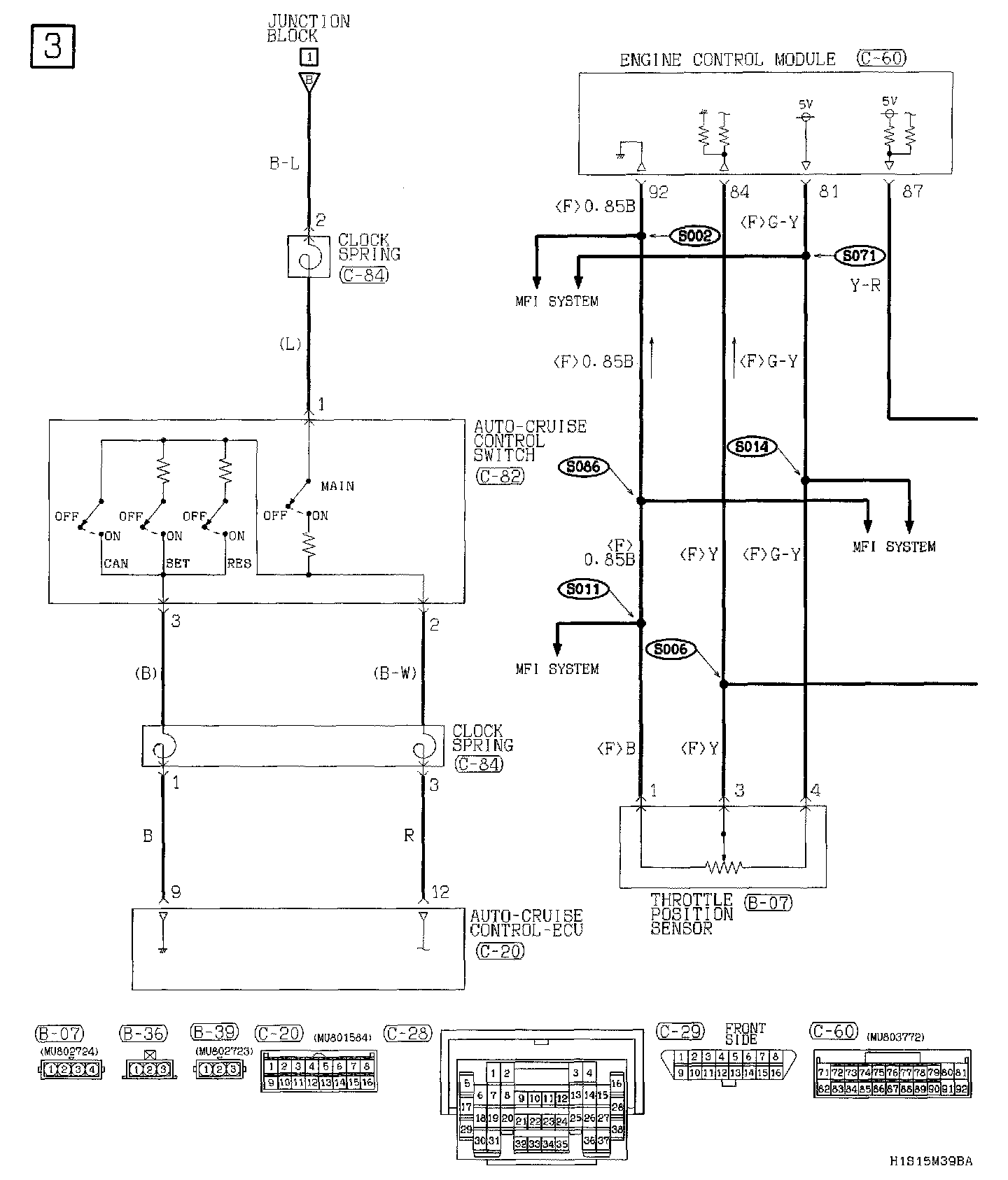

Auto-Cruise Control System <2.4L Engine-M/T> Part 3:

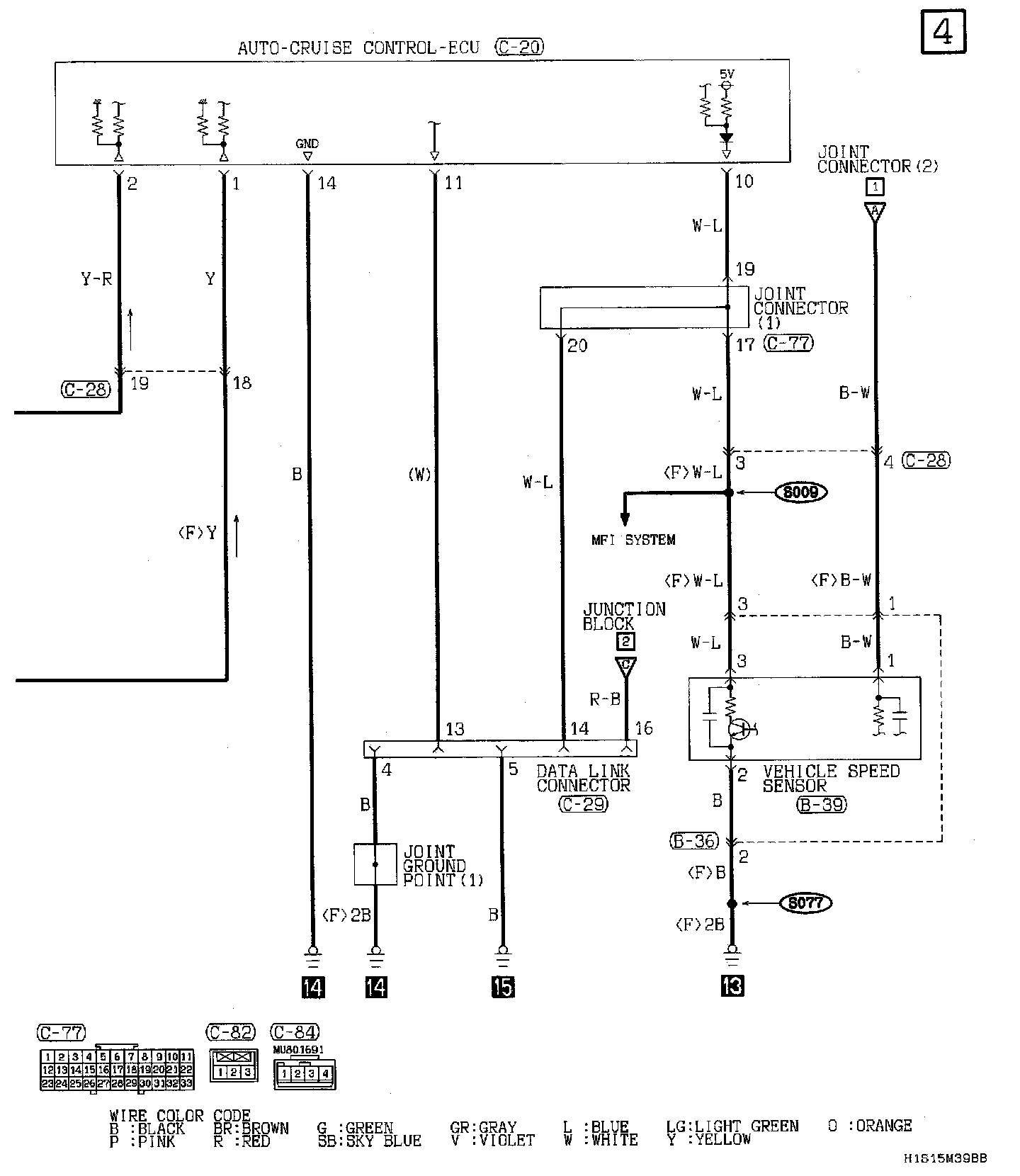

Auto-Cruise Control System <2.4L Engine-M/T> Part 4:
