Home >> Mitsubishi >> 2001 >> Eclipse RS L4-2350cc 2.4L SOHC MFI >> Repair and Diagnosis >> Body and Frame >> Seats >> Service and Repair >> Rear Seat Assembly >> Removal and Installation

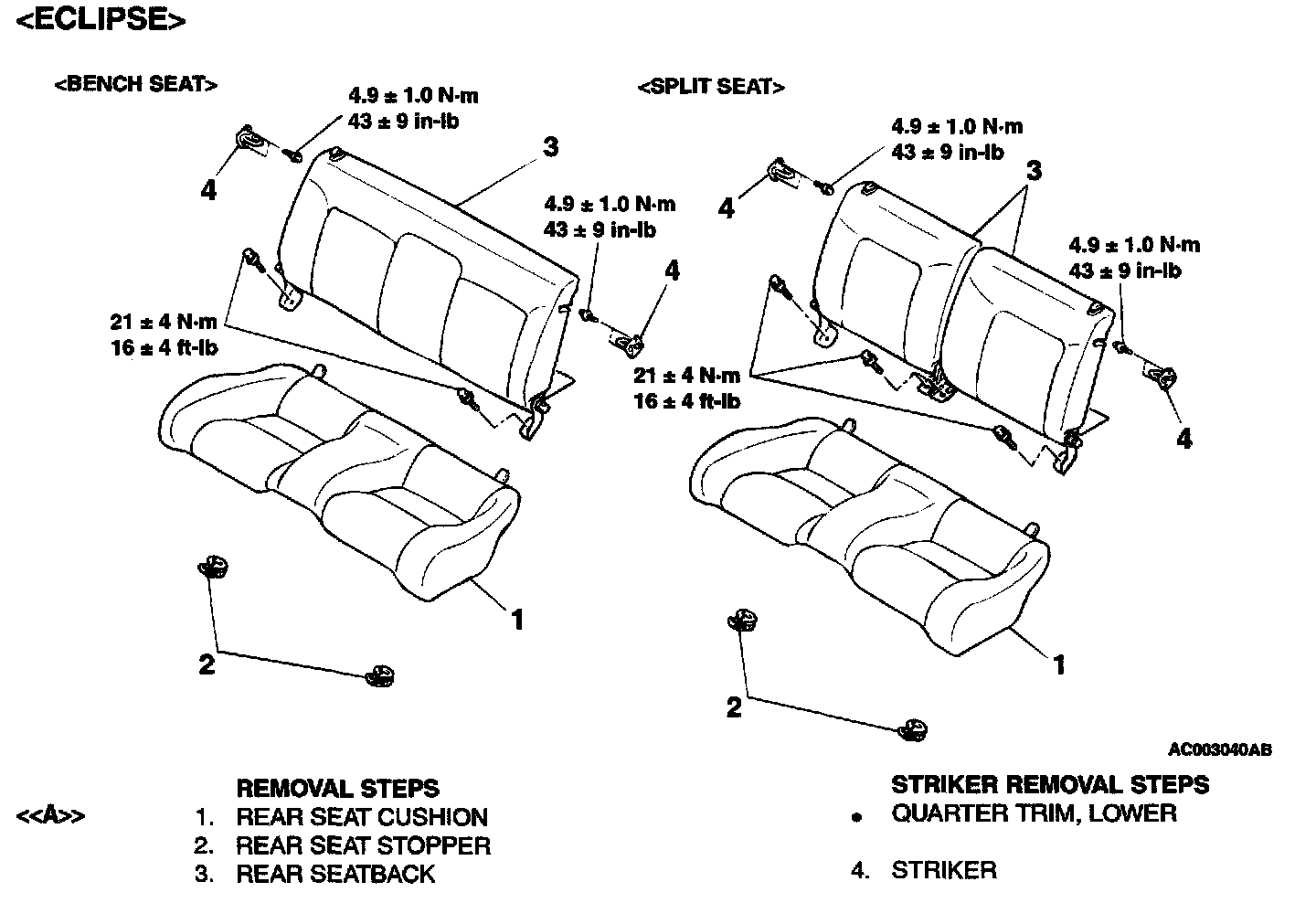

Removal and Installation






REMOVAL SERVICE POINTS

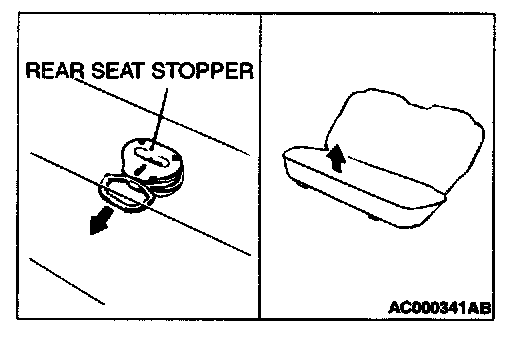

<> REAR SEAT CUSHION REMOVAL
While pulling the rear seat stopper pulled, lift up the seat cushion to remove it.
