With Theft-Alarm System

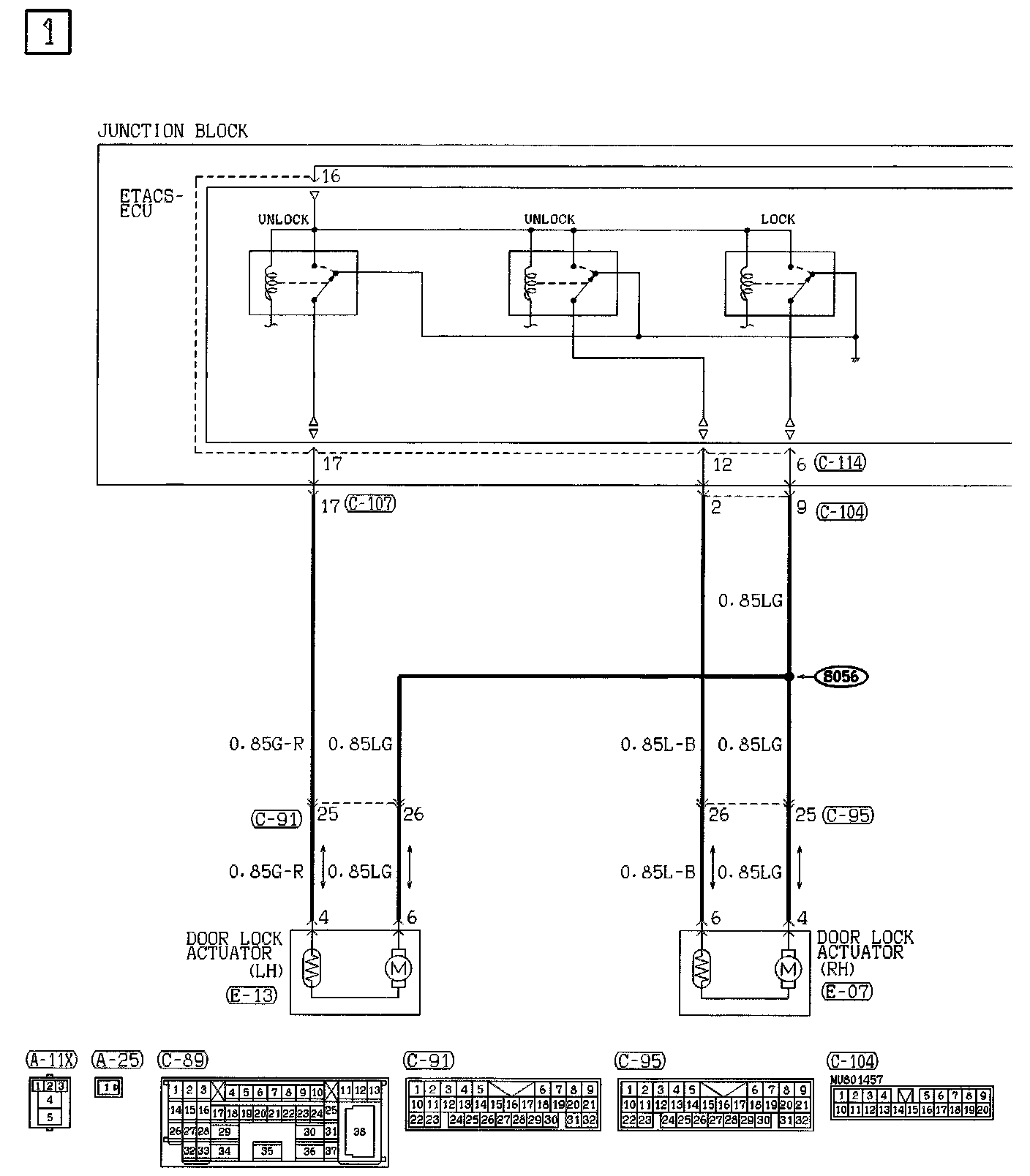

Central Door Locking System <Vehicle With Keyless Entry System (With Theft-Alarm System)> Part 1:

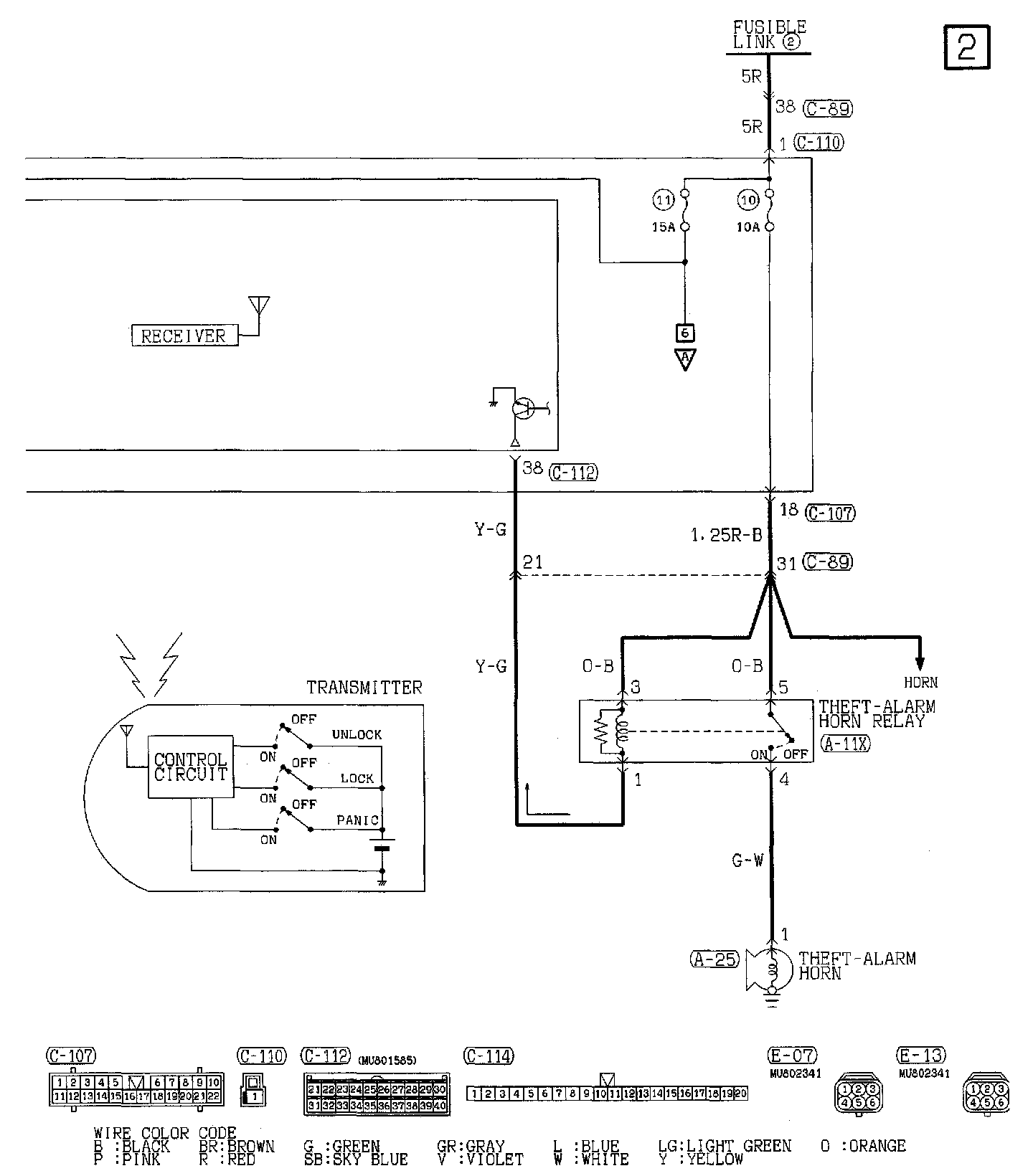

Central Door Locking System <Vehicle With Keyless Entry System (With Theft-Alarm System)> Part 2:



Central Door Locking System <Vehicle With Keyless Entry System (With Theft-Alarm System)> Part 3:

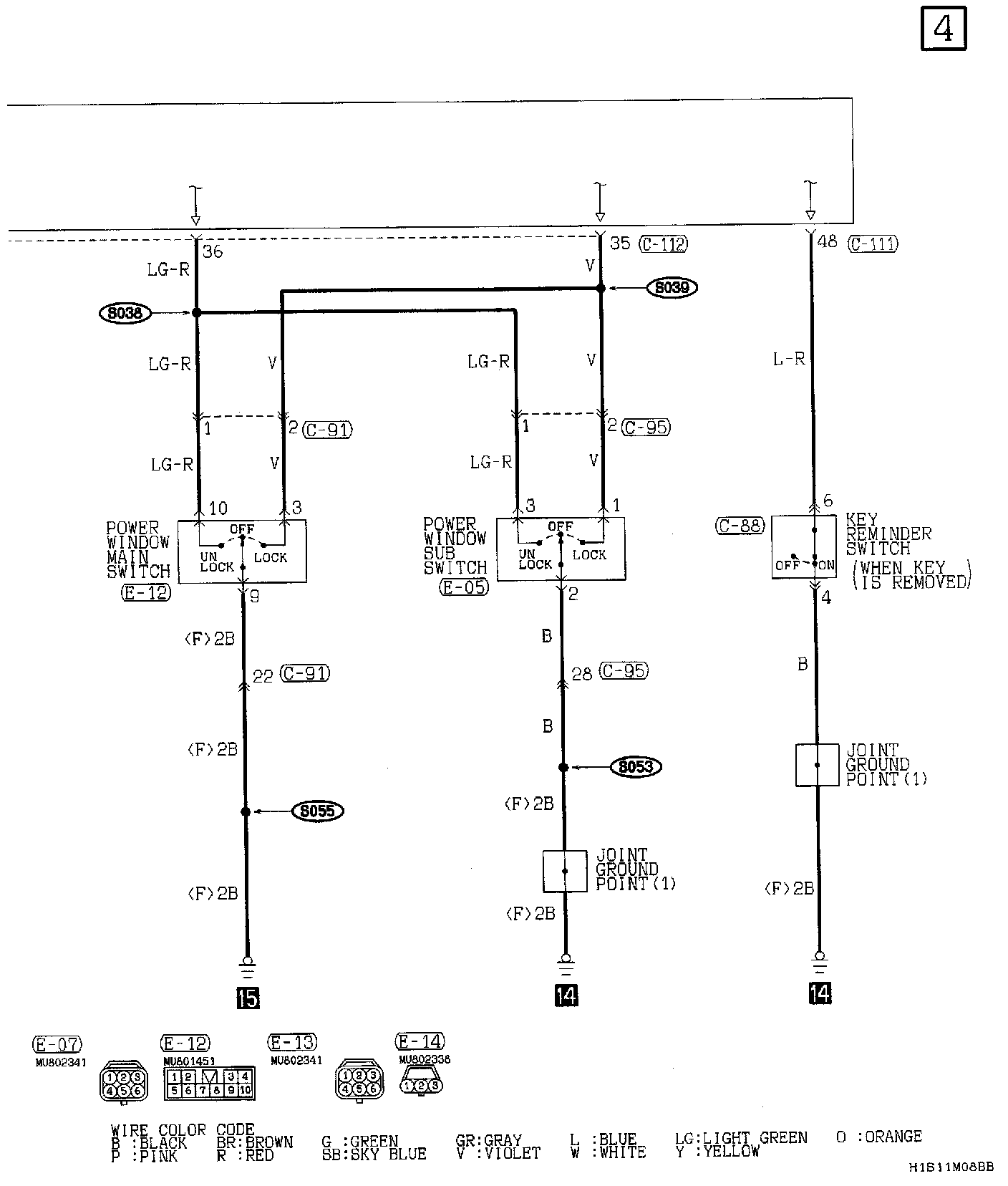

Central Door Locking System <Vehicle With Keyless Entry System (With Theft-Alarm System)> Part 4:

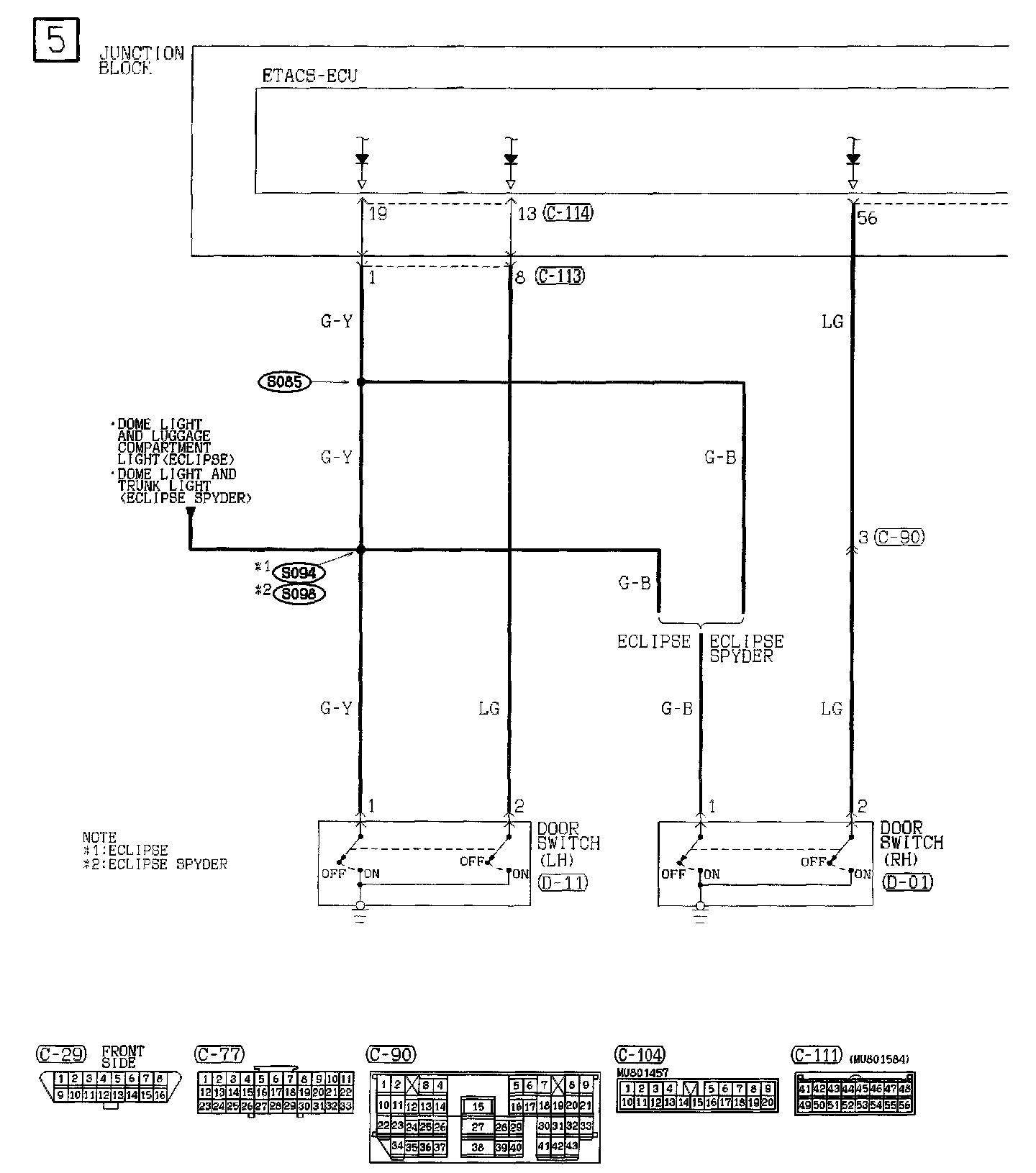

Central Door Locking System <Vehicle With Keyless Entry System (With Theft-Alarm System)> Part 5:

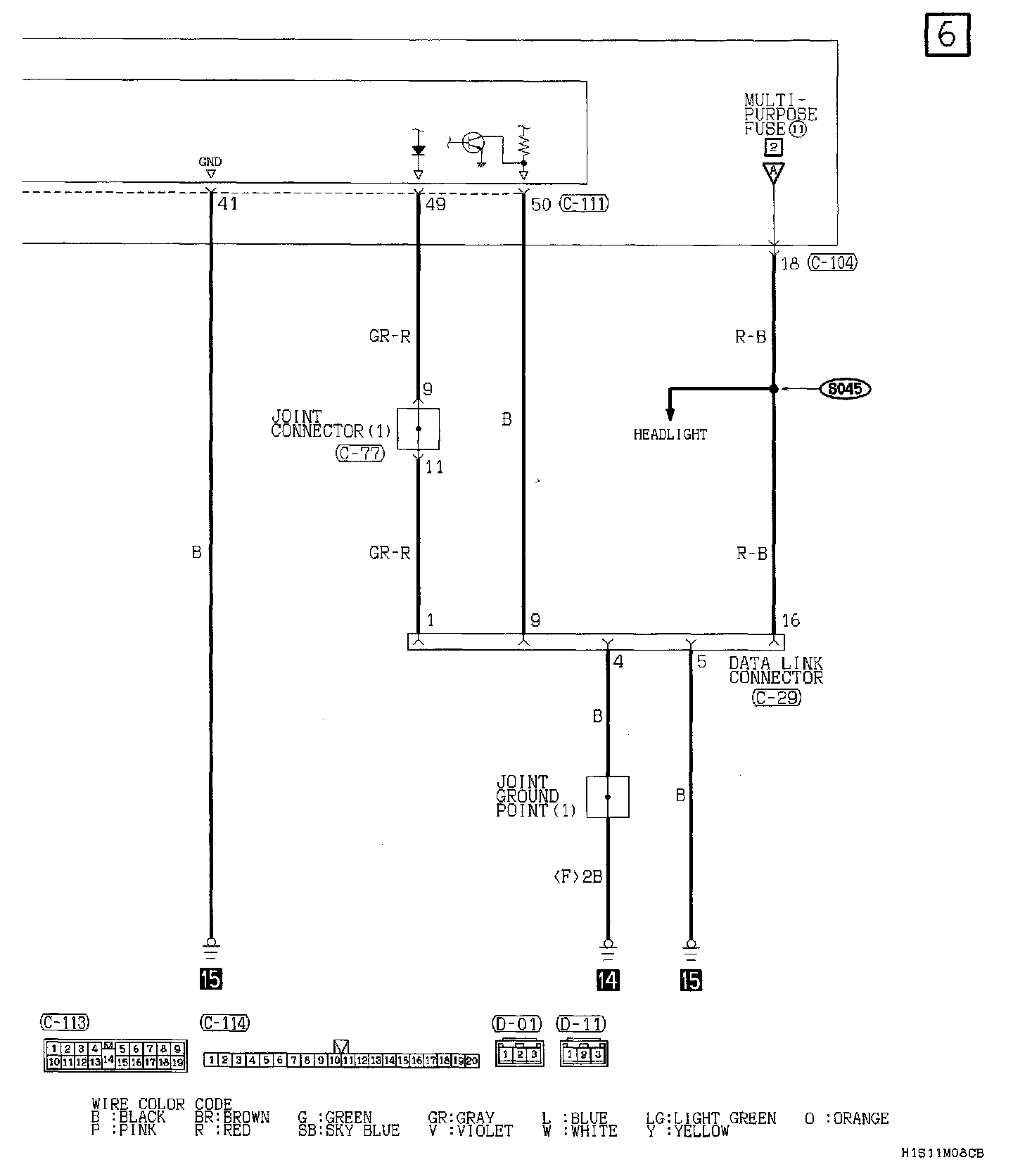

Central Door Locking System <Vehicle With Keyless Entry System (With Theft-Alarm System)> Part 6:



Central Door Locking System <Vehicle With Keyless Entry System (With Theft-Alarm System)> Part 7:



Central Door Locking System <Vehicle With Keyless Entry System (With Theft-Alarm System)> Part 8:
