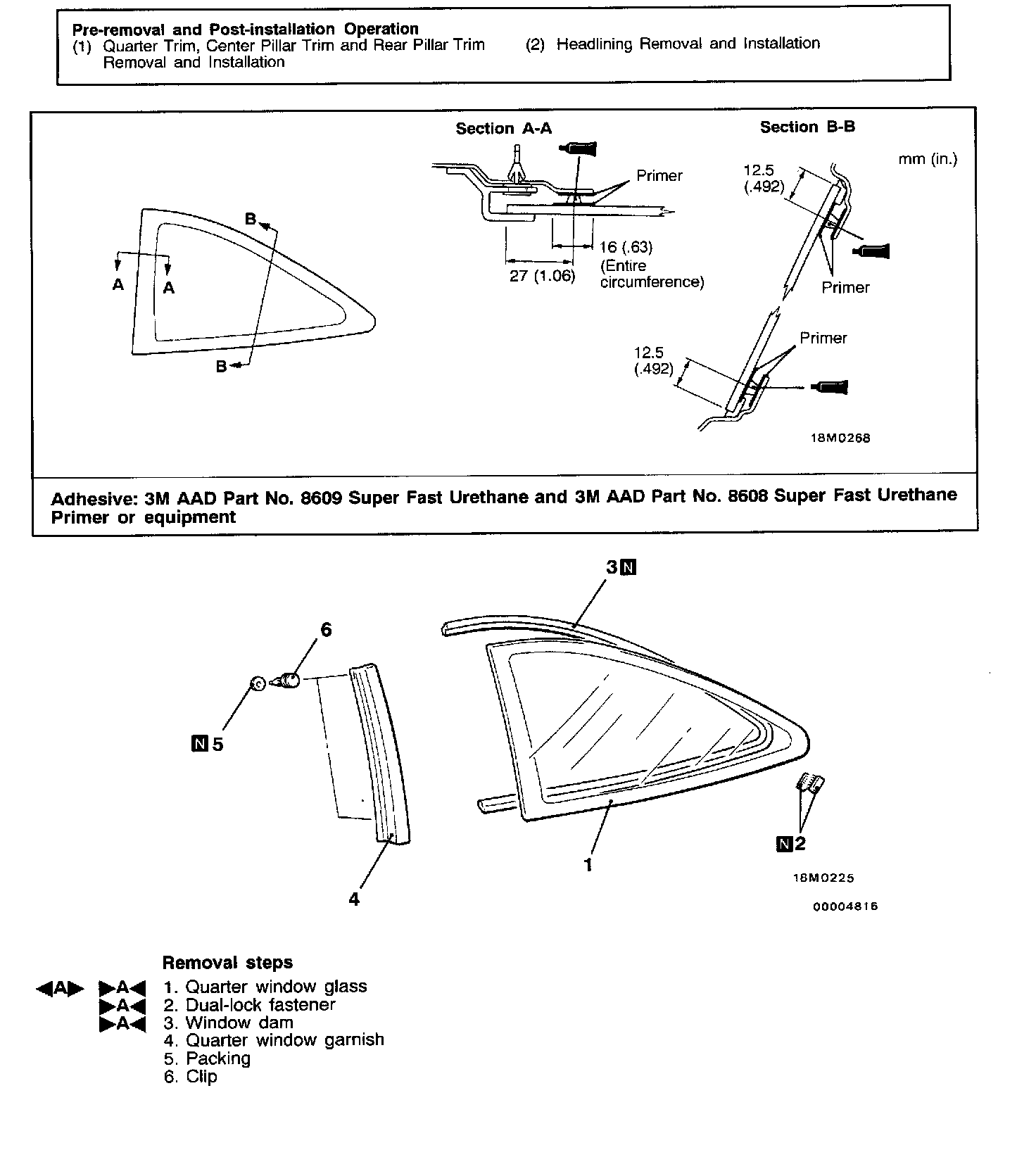

Quarter Window Glass 2-Door Models

REMOVAL AND INSTALLATION

REMOVAL SERVICE POINT

[A] QUARTER WINDOW GLASS REMOVAL
Remove the quarter window glass by the same procedure as for the windshield.

INSTALLATION SERVICE POINT

]A[ WINDOW DAM/DUAL-LOCK FASTENER/QUARTER WINDOW GLASS INSTALLATION
1. Use 3M AAD Part No.8906 or equivalent to degrease the window dam and dual lock fastener mounting surfaces on both the glass and the body.
2. Attach the window dam.

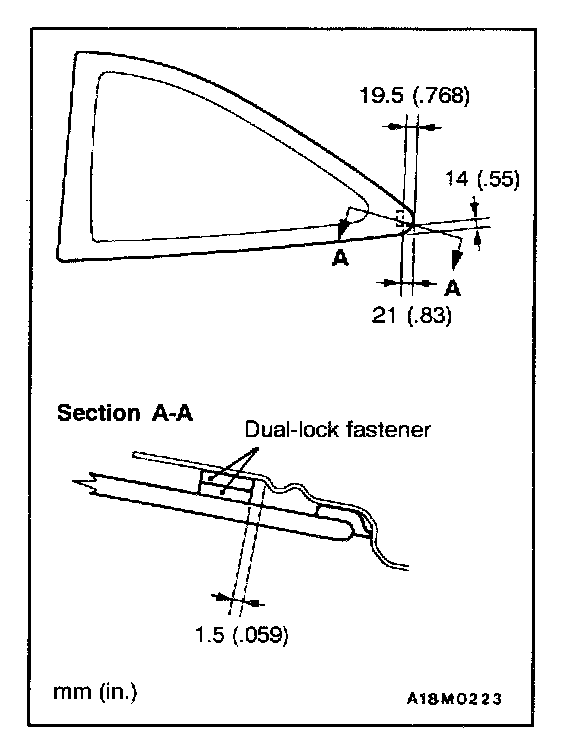

3. Install the dual lock fastener to the shown position.
4. Apply primer and adhesive.
5. Install the glass in the same way as for the windshield.
