Front Door Window Glass: Adjustments

DOOR WINDOW GLASS ADJUSTMENT
Check that the door glass moves securely along the door glass runchannel when the window glass is fully raised and fully lowered. If the glass does not move correctly, adjust by the following procedure.




1. Remove the door trim and the waterproof film.

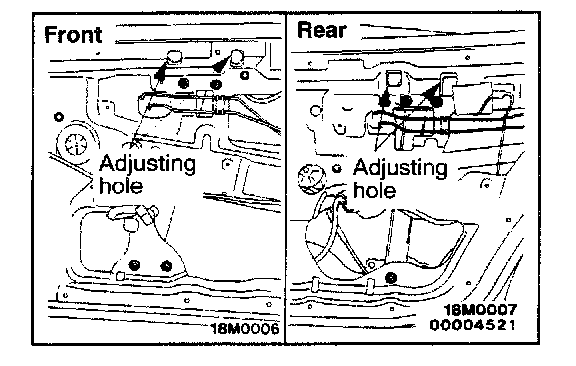

2. Loosen the mounting screw through the adjusting hole with the door window glass fully closed, and lower the door window glass slightly.
3. Close the door window glass fully again, and tighten the door glass mounting screw securely through the adjusting hole.
