Transaxle Case

DISASSEMBLY AND REASSEMBLY

Reassembly Service Points
>A< Bushing Installation

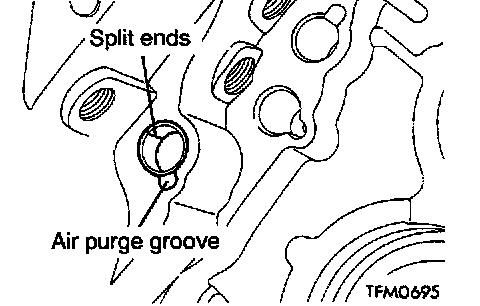

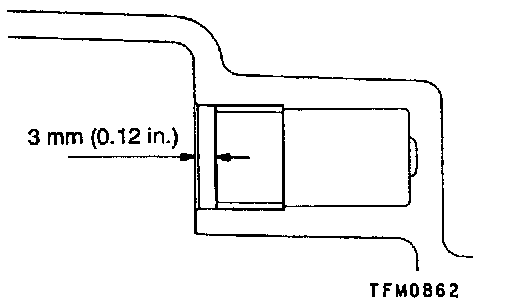

Press fit the bushing up to the illustrated position, while making sure that the split ends of the bushing do not coincide with the air purge groove.

>B< Needle Bearing Installation

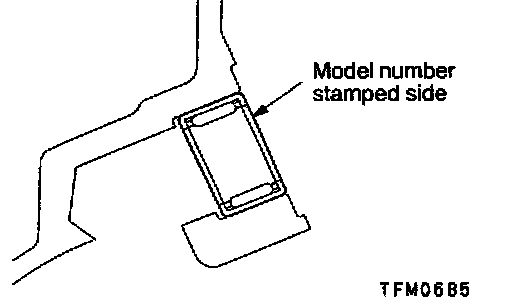

Press fit the needle bearing until it is flush with the case, while making sure that the model number stamped side faces the direction shown.

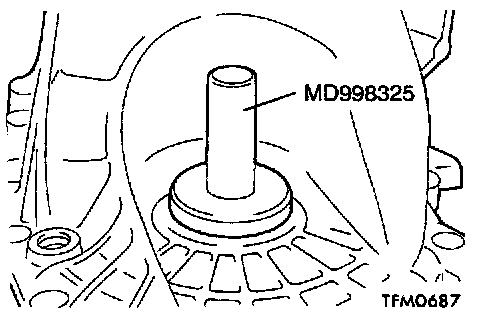

>C< Oil Seal Installation

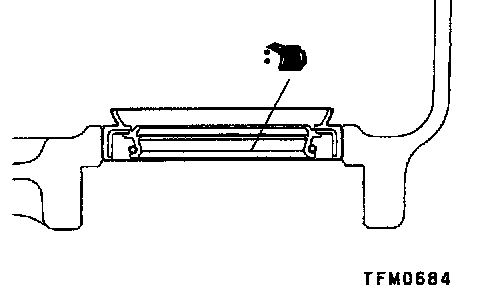

Apply transmission oil to the oil seal lip area.
Specified oil: Hypoid gear oil SAE 75W-90 or 75W-85W conforming to API classification GL-4
