Control Housing Disassembly and Reassembly

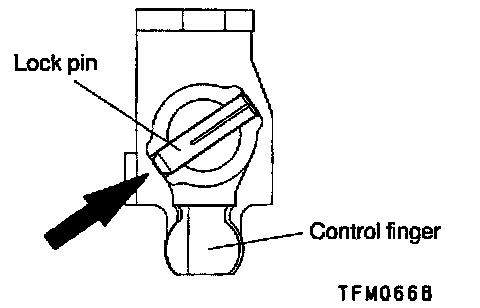

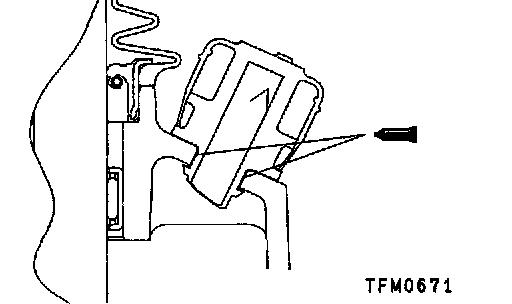

Drive the lock pin out of position from the direction shown.

Reassembly Service Points

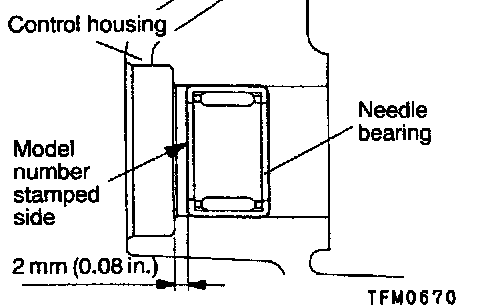

>A< Needle Bearing Installation

Press fit the needle bearing up the illustrated dimension, while making sure that the model number stamped side is oriented towards the control housing side.

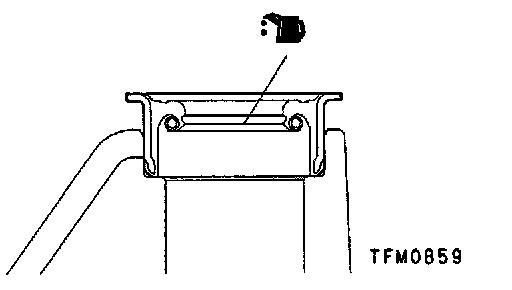

>B< Oil Seal Installation

Apply transmission oil to the oil seal lip area.
Specified oil: Hypoid gear oil SAE 75W-90 or 75W-85W conforming to API classification GL-4

>C< Air Breather Installation

1. Apply sealant to the inserting portion of the air breather.
Specified sealant: 3MTM AAD Part No.8001 or equivalent

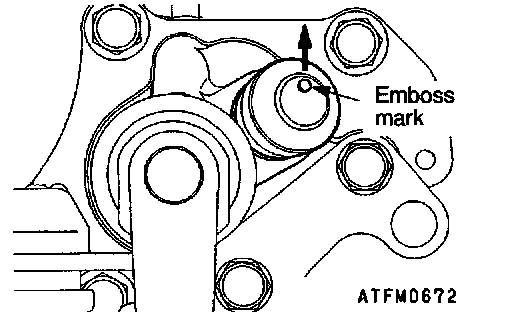

2. Install the air breather so that the emboss mark is oriented in the direction shown.

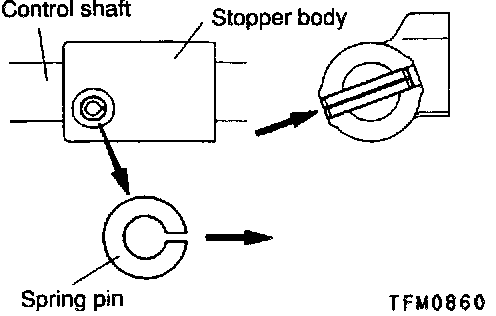

>D< Spring Pin Installation

>E< Spring Pin Installation

>F< Lock Pin Installation

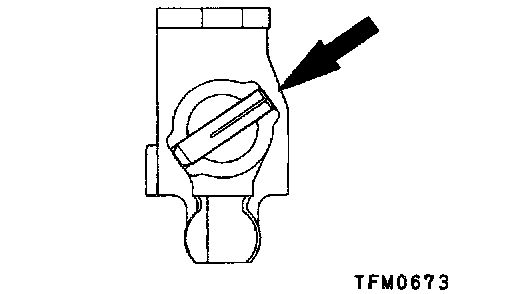

Knock the lock pin in from the direction shown in the illustration.
