Transmission Mount: Service and Repair

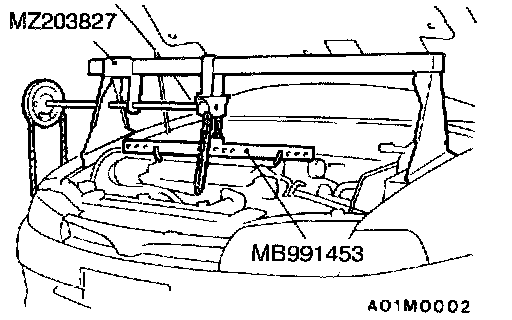

1. Install the special tool to the vehicle body to support the engine and transaxle assembly.
2. Remove the centermember mounting bolt.
3. Remove the bolt and nut of the transaxle mount bracket.
4. After lowering the engine and transaxle assembly, remove the transaxle mount bracket.

Installation Service Points

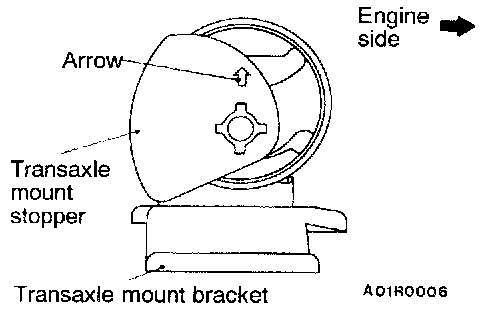

>A< Transaxle Mount Stopper Installation

Clamp the transaxle mount stopper so that the arrow points in the direction as shown in the diagram.

INSPECTION
- Check each insulator for cracks or damage.
- Check each bracket for deformation or damage.
