Shift Interlock: Testing and Inspection

KEY INTERLOCK MECHANISM CHECK





1. Carry out the inspection per the chart above.





2. When the above operations are defective, adjust the key interlock cable in following procedure.
1. Remove the front floor console.
2. Shift selector lever to "P".
3. Turn the ignition key to "LOCK".
4. Loosen the locking nut of the key interlock cable.
5. Push the cable joint on the lock cam gently toward the arrow, and tighten the locking nut.
6. Install the front floor console.

SHIFT LOCK MECHANISM CHECK

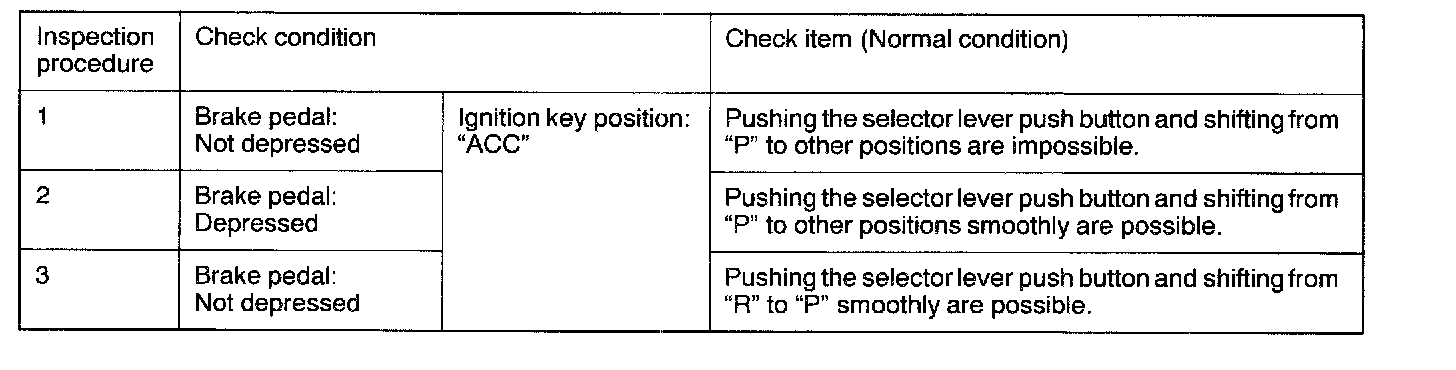

1. Carry out the following inspections.





2. When the above operations are defective, adjust the shift lock cable as follows:
1. Remove the front floor console.
2. Shift selector Lever to "P".
3. Loosen the locking nut of shift lock cable.

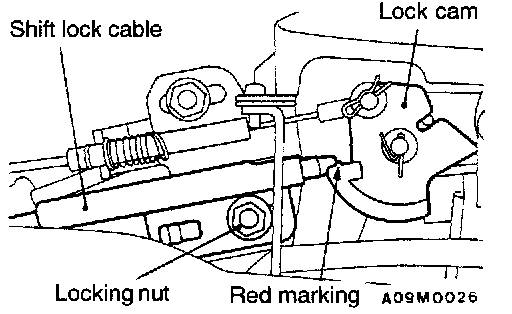

4. Tighten the locking nut so that the end of the shift lock cable comes above the red marking of the lock cam.
5. Install the front floor console.
