Overdrive Planetary Carrier

DISASSEMBLY AND REASSEMBLY

Reassembly Service Points

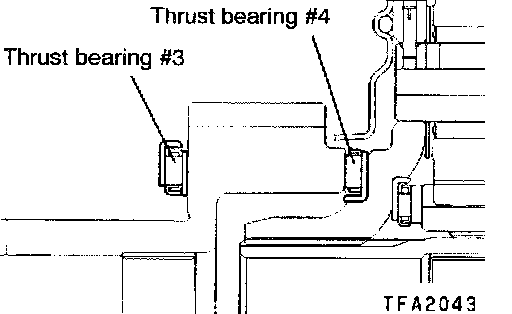

>A< Thrust Bearing #4 And Thrust Bearing #3 Installation





Check the installation direction of thrust bearings #3 and 4, and install them as shown.
Be careful about the installation direction of the thrust bearings.

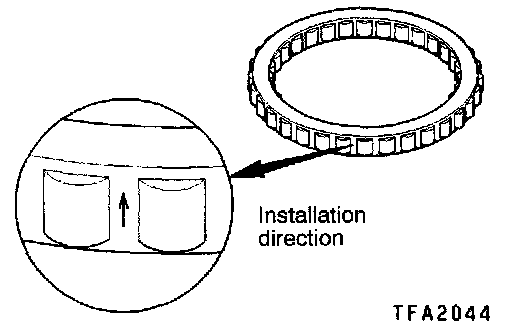

>B< One-Way Clutch Installation





Insert the one-way clutch into the overdrive annulus gear so that the arrow points to the output planetary carrier side.
