Oil Pump

DISASSEMBLY AND REASSEMBLY

Reassembly Service Points

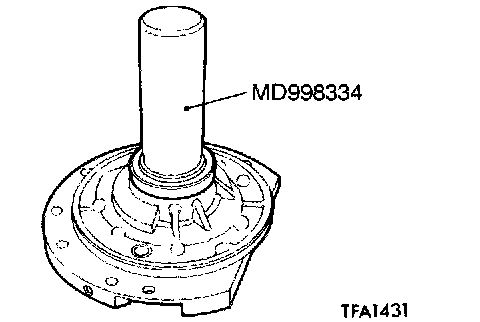

>A< Oil Seal Installation

>B< O-Ring Installation
Install a new O-ring to the outer groove of the oil pump, and apply ATF, blue petrolatum jelly or white Vaseline to the outer inside diameter of the O-ring.
