Clutch Pedal Position Switch Check

CLUTCH PEDAL POSITION SWITCH CONTINUITY CHECK
1. Adjust the clutch pedal.

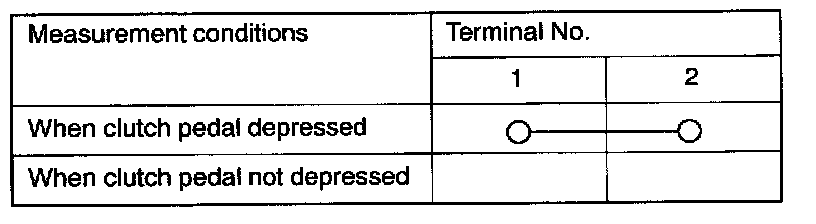

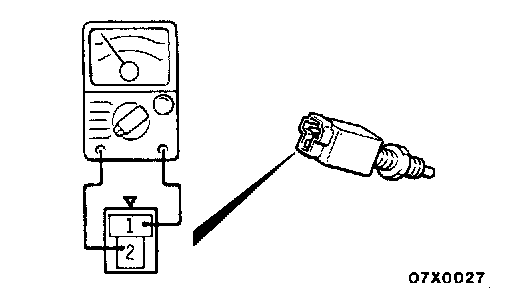

2. Operate the clutch pedal, and check continuity between the terminals.
