Interior - Child Seat Additional Upper Tether Anchor
NO.: TSB-00-52A-007DATE: August 01, 2000
MODEL: 2000 Mirage
SUBJECT:
ADDITION OF UPPER TETHER ANCHOR
(2000 MIRAGE) - SERVICE MANUAL REVISION
[TSB Revision TSB-00-52A-007]
PURPOSE
This bulletin contains information concerning the child safety seat upper tether anchor which was added as a new feature beginning with September 1, 1999 production of the 2000 model year Mirage.
NOTE:
For more information about child safety seat upper tether anchors and their use, refer to TSB-00-52A-004 and the vehicle's Owner's Manual
Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual page.
AFFECTED VEHICLES
2000 Mirage built from September 1, 1999
AFFECTED SERVICE MANUAL
2000 Mirage Service Manual, Volume 2, Pages 52A-14 & 52A-16
SERVICE MANUAL REVISION

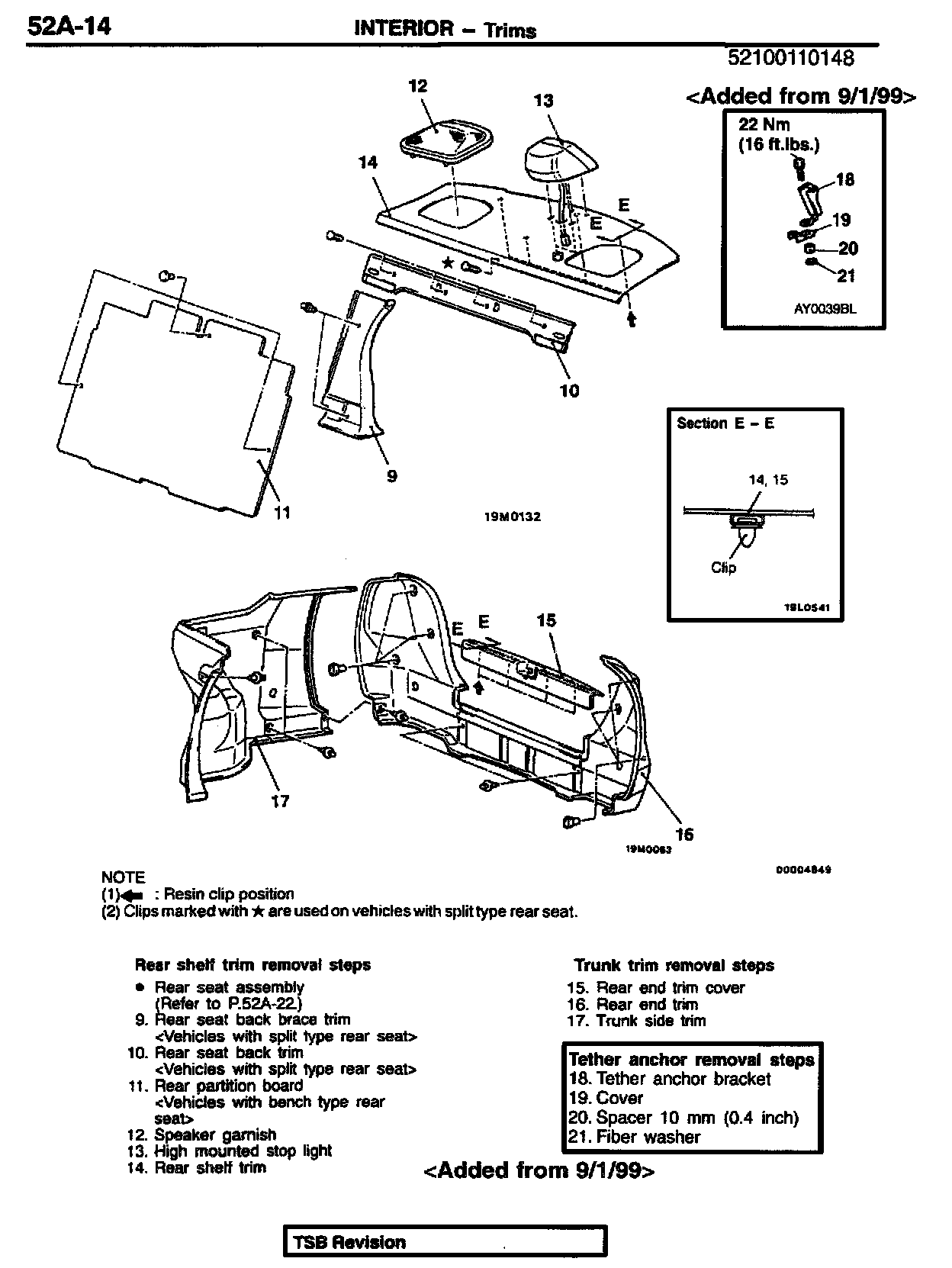

2000 Mirage Service Manual Volume 2, Page 52A-14 Add the new upper tether anchor information as shown:

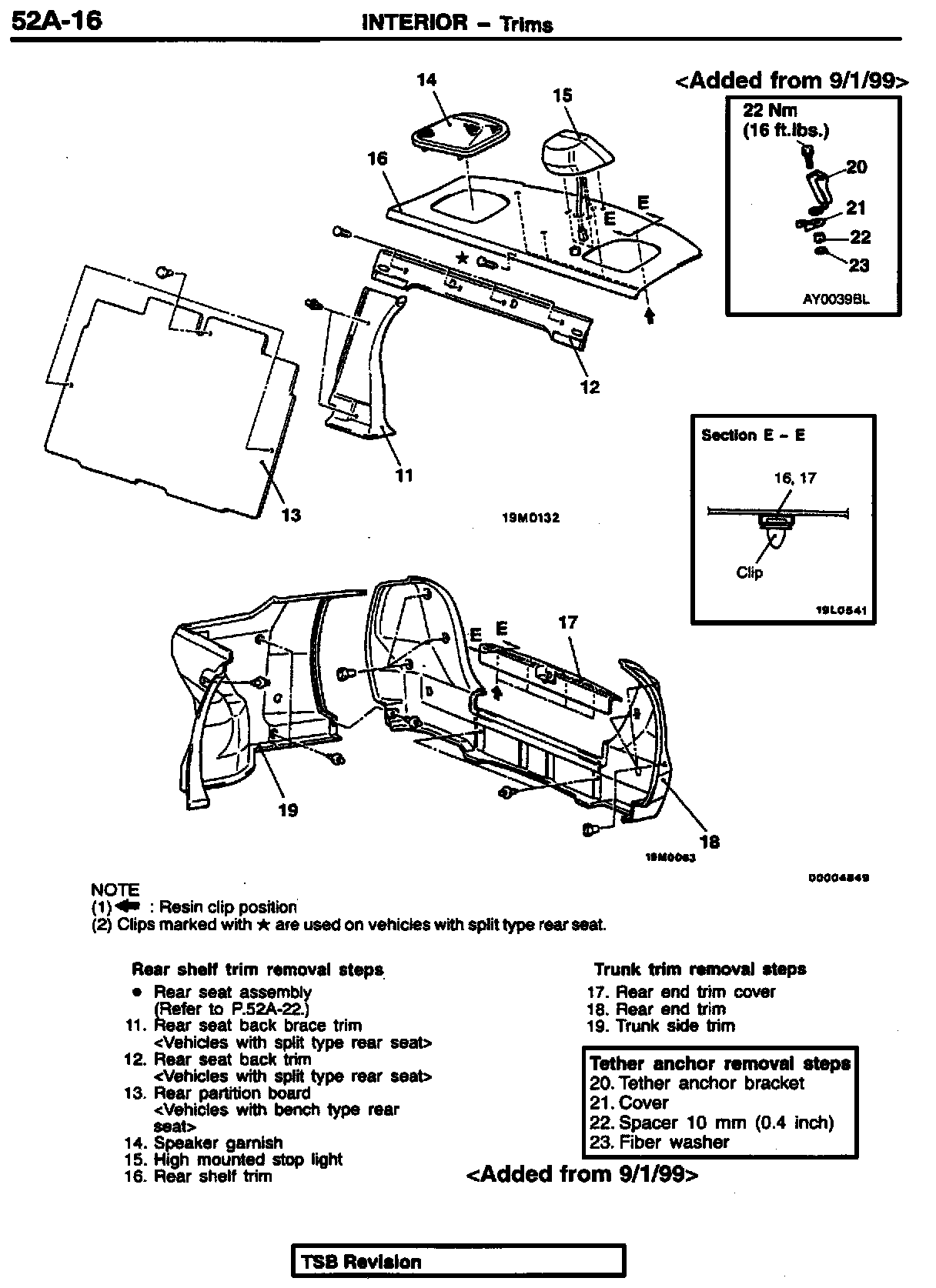

2000 Mirage Service Manual, Volume 2, Page 52A-16 Add the new upper tether anchor information as shown:
