Power Steering Line/Hose: Service and Repair

REMOVAL AND INSTALLATION
Installation Service Point
]A[ Pressure Hose/Pressure Tube Installation

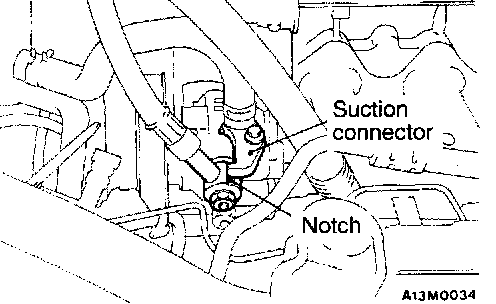

1. Connect the pressure hose so that its notched part contacts the suction connector.

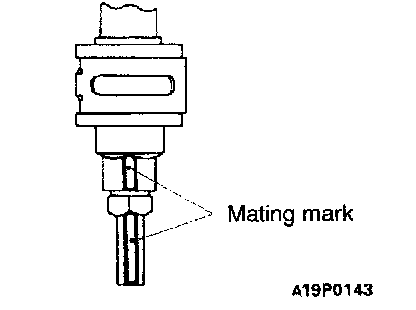

2. Align the mating marks on the pressure hose and pressure tube, and install the pressure hose.
