Headlamp: Service and Repair

Headlight and Front Turn-Signal Light

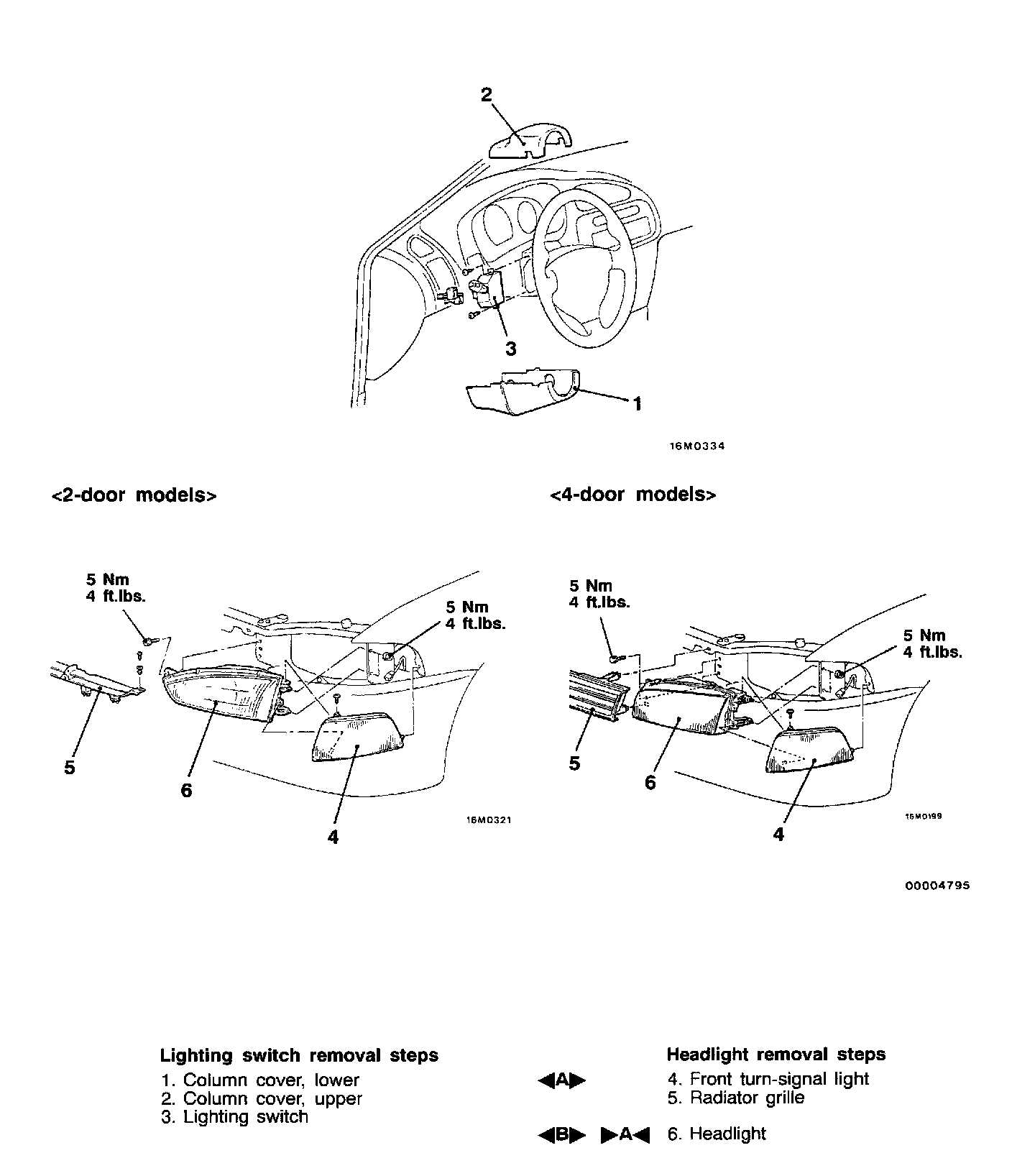

REMOVAL AND INSTALLATION

REMOVAL SERVICE POINTS

FRONT TURN-SIGNAL LIGHT REMOVAL

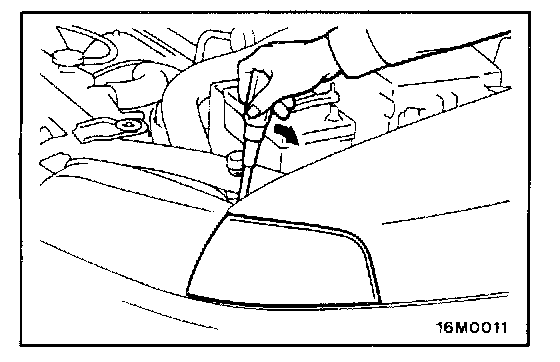

Pry a screwdriver into the direction shown to move the front turn-signal light forwards.





HEADLIGHT REMOVAL <2-door models>

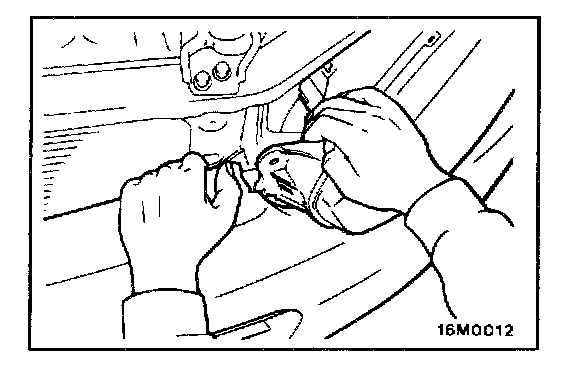

1. Pull the bumper towards you.
2. Pull the inside of headlight towards you.
3. Pull the outside of headlight towards you.
4. Remove the headlight.

INSTALLATION SERVICE POINT

>A< HEADLIGHT INSTALLATION

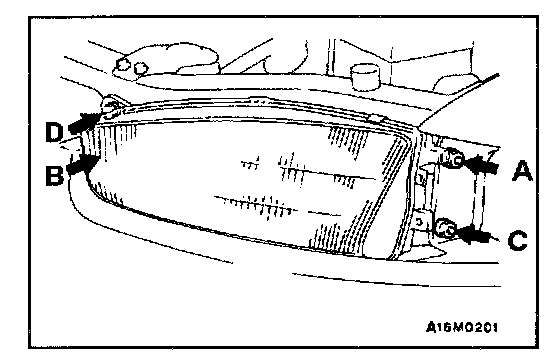

Tighten the mounting bolts and nuts in A, B, C, D order.

NOTE: The bolt marked by "B" applies to 4-door models only.
