Hose/Line HVAC: Service and Repair

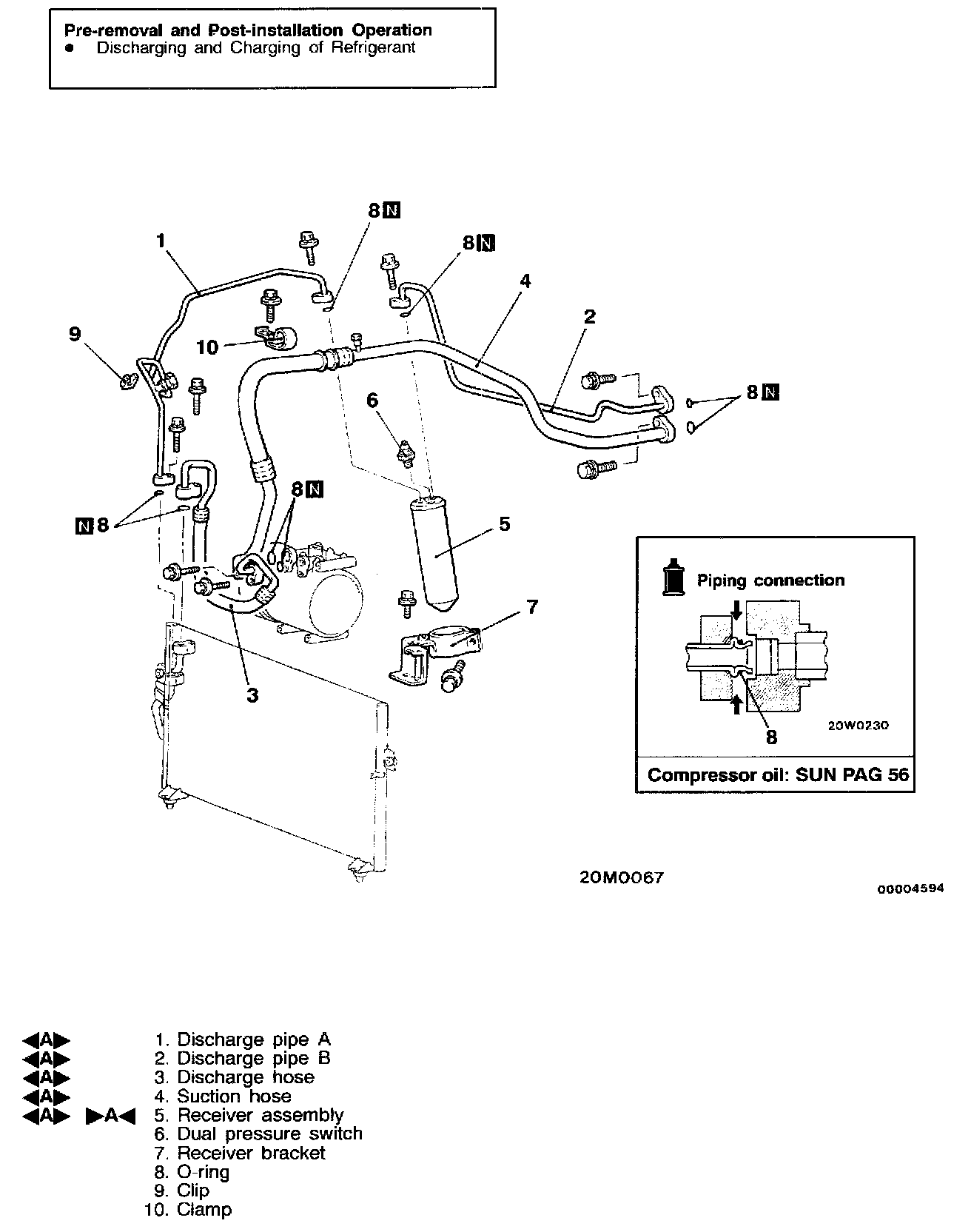

REFRIGERANT LINE
REMOVAL AND INSTALLATION
REMOVAL SERVICE POINT
HOSE/PIPE/RECEIVER ASSEMBLY DISCONNECTION
Plug the disconnected hose, the receiver, the evaporator and the compressor nipple not to let foreign matter get into them.
CAUTION: Seal the hoses completely, otherwise the compressor oil and receiver will absorb water vapor easily.
INSTALLATION SERVICE POINT
>A< SUCTION HOSE/RECEIVER ASSEMBLY INSTALLATION
When replacing the suction hose or receiver assembly, refill them with a specified amount of compressor oil, and then install them.
Compressor oil: SUN PAG 56
Quantity:
Suction hose: 10 cu.cm (0.3 fl.oz.)
Receiver assembly: 10 cu.cm (0.3 fl.oz.)
