Evaporator Core: Service and Repair
EVAPORATOR
REMOVAL AND INSTALLATION
REMOVAL SERVICE POINT
SUCTION HOSE, DISCHARGE PIPE DISCONNECTION
Plug the disconnected hose and the evaporator nipple not to let foreign matter get into them.
CAUTION: Seal the hoses completely, otherwise the compressor oil and receiver will absorb water vapor easily.
EVAPORATOR

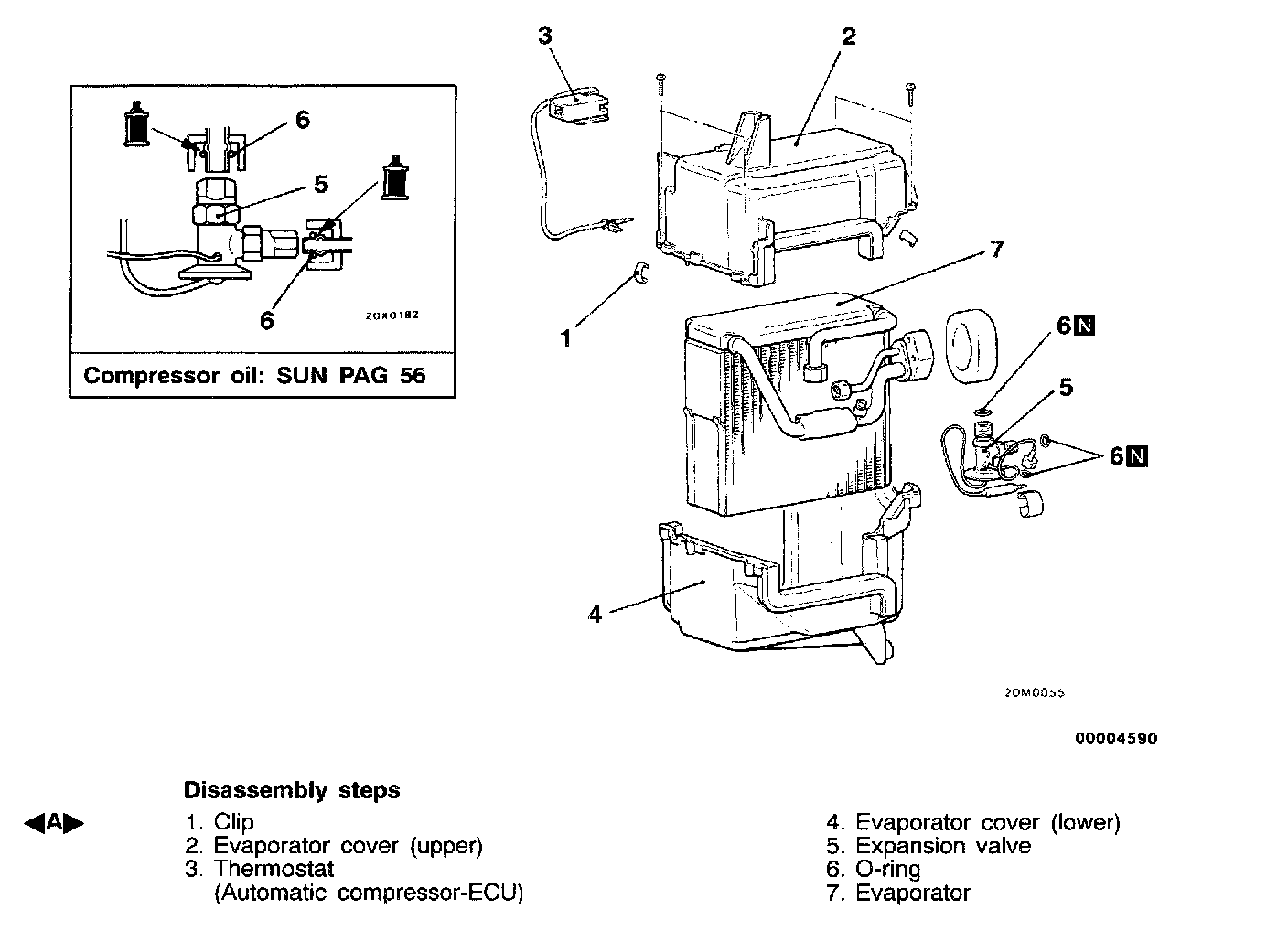

DISASSEMBLY AND REASSEMBLY
DISASSEMBLY SERVICE POINT
CLIP REMOVAL

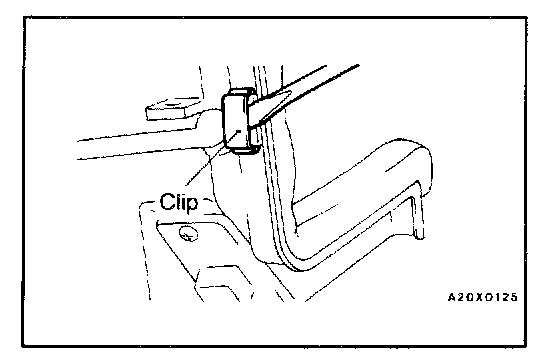

Remove the clips with a flat-tipped screwdriver covered with a shop towel to prevent damage to case surfaces.
INSTALLATION SERVICE POINT
>A< EVAPORATOR INSTALLATION
When replacing the evaporator, refill it with a specified amount of compressor oil and install it (to the vehicle).
Compressor oil: SUN PAG 56
Quantity: 60 cu.cm (2.0 fl.oz.)
