Compressor Magnetic Clutch Operation Inspection

COMPRESSOR MAGNETIC CLUTCH OPERATION INSPECTION

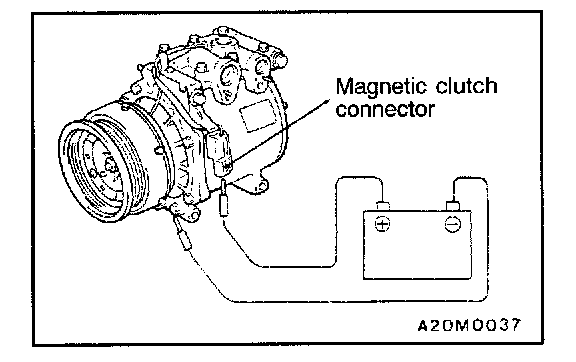

Connect the battery (+) terminal to the compressor side terminal, and ground the battery (-) terminal to the body of the compressor. The condition is normal if the sound of the magnetic clutch (click) can be heard.
