Compressor Clutch: Service and Repair

MAGNETIC CLUTCH

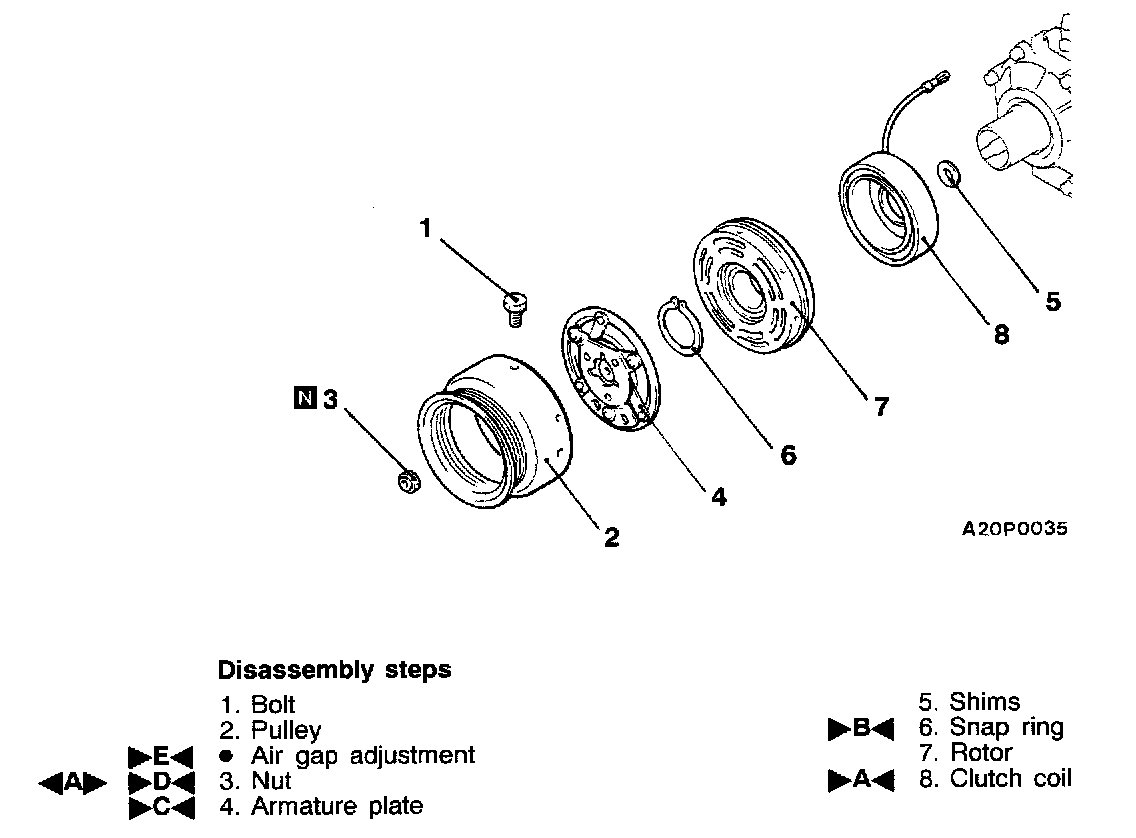

DISASSEMBLY AND REASSEMBLY

DISASSEMBLY SERVICE POINT

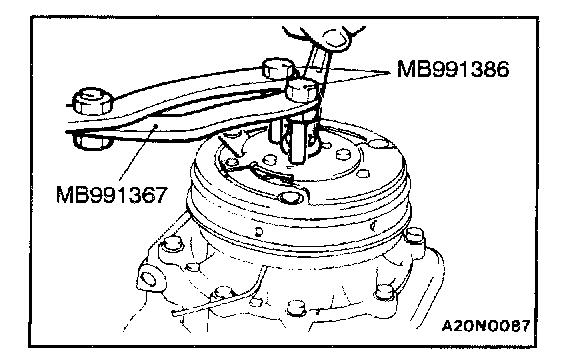

NUT REMOVAL

REASSEMBLY SERVICE POINTS

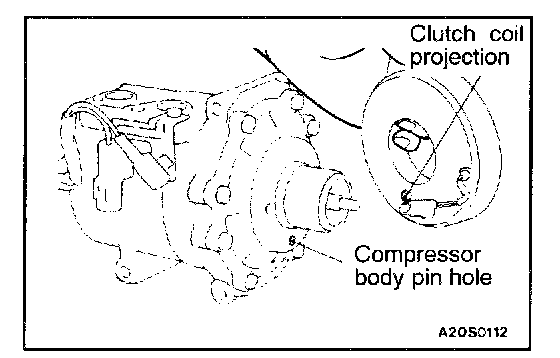

>A< CLUTCH COIL INSTALLATION
When installing the clutch coil to the A/C compressor body, install so that the pin hole of the A/C compressor body and the clutch coil projection are aligned.

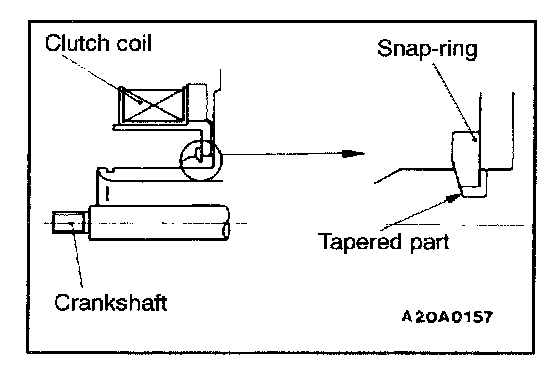

>B< SNAP RING INSTALLATION
Install the snap ring so that the tapered surface is to the outside.

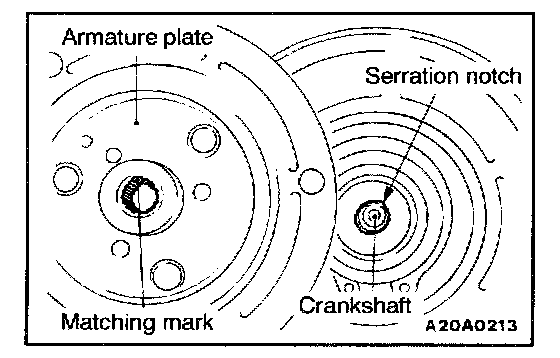

>C< ARMATURE PLATE INSTALLATION
Align the mating mark of the crankshaft spline and the mating mark of the armature plate, and then fit them together.

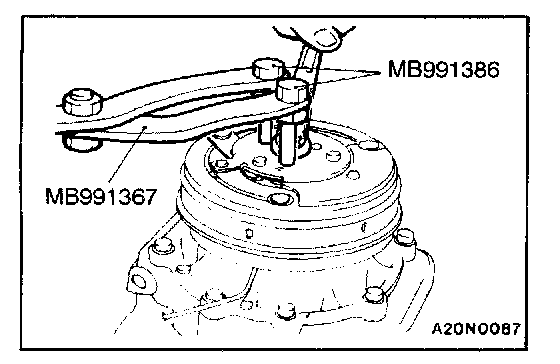

>D< NUT INSTALLATION
Use the special tool to hold the magnet clutch, and tighten the nut in the same manner as removal.

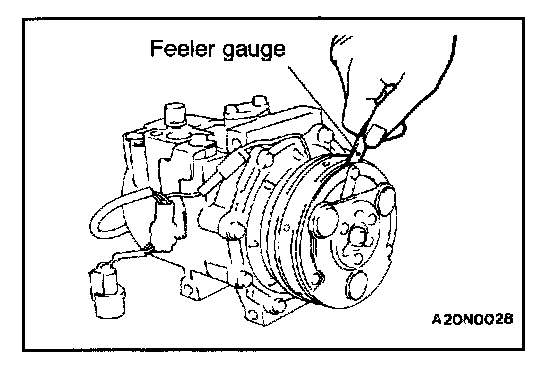

>E< AIR GAP ADJUSTMENT
Check whether or not the air gap of the clutch is within the standard value.

Standard value: 0.3 - 0.5 mm (0.012 - 0.020 in.)

NOTE: If there is a deviation of the air gap from the standard value, make the necessary adjustment by adjusting the number of shims.
